UNIVIEW - IPC816SB-ADF16KMC-I1 - 6MP Fisheye Fixed Dome Network Camera, 1.6mm

IPC816SB-ADF16KMC-I1 — 6MP Fisheye Fixed Dome Network Camera, 1.6mm

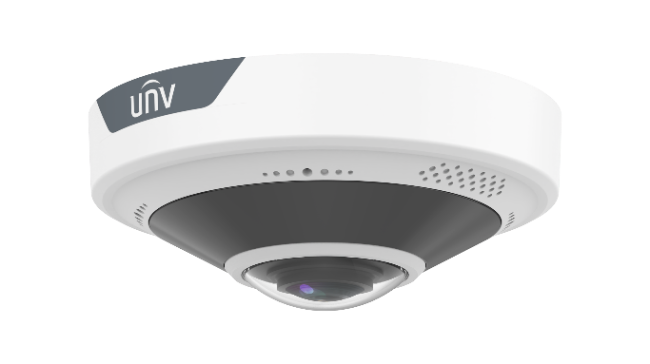

The Uniview IPC816SB-ADF16KMC-I1 is a 6MP fisheye network camera with a fixed 1.6 mm, F2.0 lens on a 1/1.8" CMOS sensor, giving a 180° field of view.

What the IPC816SB-ADF16KMC-I1 is for

A fisheye camera covers a whole room, shop floor or lobby from one ceiling, table or wall position. The main stream is 2560 × 2560, and the live view can be dewarped into panorama or multiple PTZ-style views: on the ceiling, for example, fisheye + 4PTZ in hardware decoding and up to fisheye + 8PTZ in software decoding. Uniview's DORI distances are 36.0 m to detect and 3.6 m to identify.

It has 850 nm IR to 15 m, a built-in dual microphone and speaker with two-way audio, and IP67 and IK10 ratings (working range -30 to 60 degrees C). The intelligent rows list cross line and intrusion detection with human and vehicle classification, plus heat maps when used with a management platform.

Key features

• 6MP (2560 × 2560), 1/1.8" CMOS, 120 dB WDR
• Fixed 1.6 mm, F2.0 fisheye lens, 180° field of view
• Fisheye, panorama and multi-PTZ dewarped views
• IR to 15 m
• Built-in dual mic and speaker, two-way audio, alarm I/O 1/1
• IP67 and IK10, PoE (802.3af) or 12 V DC, max. 8.4 W, microSD up to 512 GB

Full specification

What you will need

Supply PoE (IEEE 802.3af) from a PoE switch or an NVR's built-in PoE ports, or 12 V DC through the Ø5.5 mm coaxial plug; maximum draw is 8.4 W. Use a network cable for the run. For recording, add a compatible NVR with surveillance hard drives, or a microSD card of up to 512 GB. Check that your NVR or software supports fisheye dewarping if you want the panorama and PTZ views. Neither is supplied.

Buying from Zenith Security Co.

We are a supplier, not an installer. We will go through the IPC816SB-ADF16KMC-I1 with you before you buy — mounting position, fisheye dewarping on your recorder, and how to power and record from it — and depending on your requirements and your area we can recommend a qualified trade installer. We have been operating since 2012 and you can visit our trade counter in Wolverhampton.

What field of view does the IPC816SB-ADF16KMC-I1 have?

180° horizontally, vertically and diagonally, from a fixed 1.6 mm fisheye lens.

Can the IPC816SB-ADF16KMC-I1 be dewarped?

Yes. Fisheye, panorama and multi-PTZ views are listed for ceiling, table and wall mounting, in hardware or software decoding.

Is the IPC816SB-ADF16KMC-I1 PoE?

Yes, PoE (IEEE 802.3af) or DC 12 V ±25%, maximum 8.4 W.

Does the IPC816SB-ADF16KMC-I1 have audio?

Yes. It has a built-in dual microphone and speaker, with two-way audio support.

Can the IPC816SB-ADF16KMC-I1 go outside?

It is rated IP67 and IK10, with a working range of -30°C to 60°C.

Is this a trade-price product?

Yes. Uniview products are supplied at trade prices to approved trade customers, so the price is shown once you are logged in to a trade account. Call 01902 902251 or see our trade customer page to open an account.

How quickly can I get it?

We ship nationally from our multi-million pound warehouse, with orders leaving daily. Orders placed before 2:30pm are normally dispatched for delivery within 1–2 working days to England, Scotland and Wales. You can also collect in store from our trade counter — call first so we can confirm your order is ready. We do not ship to Northern Ireland.

Can I collect or see one before buying?

Yes. Our trade counter is at Unit 3, Park View Centre, 243 Dudley Road, Wolverhampton WV2 3JU. Call first so we can confirm the item is there for you.

Questions on specification or compatibility: call 01902 902251, see our FAQ and support pages, or contact us. Trade accounts are available — see trade customers. Browse the full Uniview range.
