IPC8544EA-KM-I1 — 16MP 180° Panoramic Network Camera, 2.8 mm Lens, 50 m IR

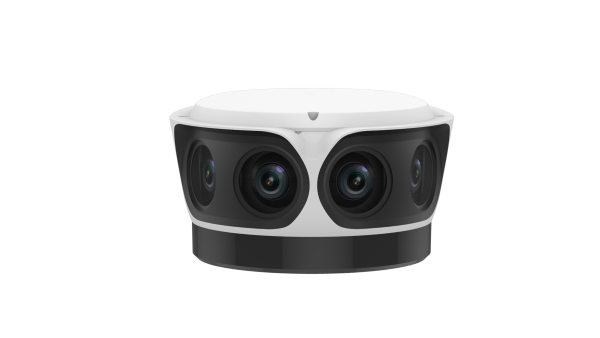

The Uniview IPC8544EA-KM-I1 is a 16MP panoramic network camera giving a 180° horizontal view from a 2.8 mm F1.6 lens, with 50 m of IR and a gigabit network port.

What the IPC8544EA-KM-I1 is for

It is for wide outdoor scenes such as car parks, yards and building frontages where one 180° image replaces several cameras. The main stream is 4800 × 2688 at up to 30 fps, with 2688 × 1520 and 1280 × 720 sub streams.

Uniview's DORI figures are 63.0 m to detect, 25.2 m to observe, 12.6 m to recognise and 6.3 m to identify. Minimum illumination is 0.001 lux in colour at F1.6, and 850 nm IR reaches 50 m. The IP67 metal body works from -40°C to 70°C with 6 kV surge protection.

Key features

• 16MP 1/1.8" CMOS sensor, 4800 × 2688 at up to 30 fps
• 2.8 mm F1.6 lens, 180° horizontal and 90° vertical field of view
• 850 nm IR to 50 m
• 1 × RJ45 10/100/1000 Mbps Ethernet
• 2/1 alarm I/O, RS485, audio in/out with two-way audio
• PoE (IEEE 802.3at), AC 24 V or DC 24 V, max 23 W; microSD up to 512 GB; IP67

Full specification

What you will need

It needs PoE+ (IEEE 802.3at) from a PoE switch or NVR, or a 24 V AC/DC supply wired to the cold-pressed terminals; maximum draw is 23 W. Use network cable for the run. For recording add an NVR that accepts 16MP streams, with a surveillance hard drive, or a microSD card of up to 512 GB. Neither is supplied.

Buying from Zenith Security Co.

We are a supplier, not an installer. We will go through the IPC8544EA-KM-I1 with you before you buy — the 180° coverage at your site, PoE+ power and recorder support for a 16MP stream — and depending on your requirements and your area we can recommend a qualified trade installer. We have been operating since 2012 and you can visit our trade counter in Wolverhampton.

What does the IPC8544EA-KM-I1 cover?

180° horizontally and 90° vertically from its 2.8 mm lens.

What resolution does the IPC8544EA-KM-I1 record?

The main stream is 4800 × 2688 (16MP) at up to 30 fps.

How is the IPC8544EA-KM-I1 powered?

PoE (IEEE 802.3at), AC 24 V ±25% or DC 24 V ±25%, with maximum consumption of 23 W. A standard 802.3af port is not listed.

How far does the IR reach?

Uniview states 50 m for its 850 nm IR, with auto or manual control.

Is this a trade-price product?

Yes. Uniview products are supplied at trade prices to approved trade customers, so the price is shown once you are logged in to a trade account. Call 01902 902251 or see our trade customer page to open an account.

How quickly can I get it?

We ship nationally from our multi-million pound warehouse, with orders leaving daily. Orders placed before 2:30pm are normally dispatched for delivery within 1–2 working days to England, Scotland and Wales. You can also collect in store from our trade counter — call first so we can confirm your order is ready. We do not ship to Northern Ireland.

Can I collect or see one before buying?

Yes. Our trade counter is at Unit 3, Park View Centre, 243 Dudley Road, Wolverhampton WV2 3JU. Call first so we can confirm the item is there for you.
