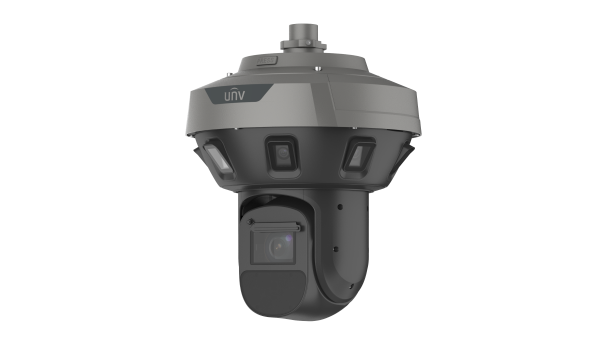

UNIVIEW - IPC98344ER-GX42-E8-W-VH3 - 32MP 360° Panoramic Multi-sensor Network Camera

IPC98344ER-GX42-E8-W-VH3 — 32MP 360° Panoramic Multi-sensor Network Camera

The Uniview IPC98344ER-GX42-E8-W-VH3 is a Pro Series camera whose panorama channel delivers 32MP (11520 × 2700) at up to 30 fps across a 360° horizontal field of view.

What the IPC98344ER-GX42-E8-W-VH3 is for

It is for very large areas such as squares, junctions, yards and perimeters where one mounting point must show the whole scene. Uniview lists a linkage function in which the fixed panorama channel triggers target tracking through smart intrusion prevention.

The figures below are for the panorama channel (Channel 1) as published on Uniview's page: 360° horizontal and 110° vertical view, DORI of 31.0 m to detect and 3.1 m to identify, and colour minimum illumination of 0.0003 lux at F1.0. Ask us for the full datasheet of the tracking channel before specifying.

Key features

• Panorama channel: 32MP (11520 × 2700) at up to 30 fps, 360° × 110° view
• Linkage tracking triggered by smart intrusion prevention
• Cross line, intrusion, area enter/leave detection with human/vehicle classification; people counting
• 1 × RJ45 10/100/1000 Mbps plus 1 × 100/1000 Mbps SFP
• 7/3 alarm I/O, RS485, 2 audio in / 2 out
• DC 24 V or DC 36 V, up to 124 W; IP67; -40°C to 70°C; 13.5 kg

Full specification

What you will need

It is powered from DC 24 V or DC 36 V (±25%) through cold-pressed terminals, at up to 124 W, so plan a dedicated supply; PoE is not listed. Connect it by network cable or SFP fibre, and record to an NVR that accepts 32MP streams, fitted with surveillance hard drives. Check the 13.5 kg weight against your pole or bracket.

Buying from Zenith Security Co.

We are a supplier, not an installer. We will go through the IPC98344ER-GX42-E8-W-VH3 with you before you buy — power, mounting for a 13.5 kg unit, network uplink and recorder support for a 32MP stream — and depending on your requirements and your area we can recommend a qualified trade installer. We have been operating since 2012 and you can visit our trade counter in Wolverhampton.

What resolution does the IPC98344ER-GX42-E8-W-VH3 panorama channel record?

32MP (11520 × 2700) at up to 30 fps, with 3072 × 676 and 2048 × 450 sub streams.

How is the IPC98344ER-GX42-E8-W-VH3 powered?

DC 24 V or DC 36 V (±25%) via cold-pressed terminals, with power consumption up to 124 W.

What network connections does it have?

One RJ45 10/100/1000 Mbps port and one 100/1000 Mbps SFP port.

How heavy is the IPC98344ER-GX42-E8-W-VH3?

Uniview lists 13.5 kg, with dimensions of Φ380 mm × 475.9 mm.

Is this a trade-price product?

Yes. Uniview products are supplied at trade prices to approved trade customers, so the price is shown once you are logged in to a trade account. Call 01902 902251 or see our trade customer page to open an account.

How quickly can I get it?

We ship nationally from our multi-million pound warehouse, with orders leaving daily. Orders placed before 2:30pm are normally dispatched for delivery within 1–2 working days to England, Scotland and Wales. You can also collect in store from our trade counter — call first so we can confirm your order is ready. We do not ship to Northern Ireland.

Can I collect or see one before buying?

Yes. Our trade counter is at Unit 3, Park View Centre, 243 Dudley Road, Wolverhampton WV2 3JU. Call first so we can confirm the item is there for you.

Questions on specification or compatibility: call 01902 902251, see our FAQ and support pages, or contact us. Trade accounts are available — see trade customers. Browse the full Uniview range.
