UNIVIEW - KIT-NVR301-04LS3-W-4-2122LB-ABF40WK-G - 4-Channel WiFi NVR Kit with 4 x 2MP WiFi Bullet Cameras, 4mm

KIT-NVR301-04LS3-W-4-2122LB-ABF40WK-G — 4-Channel WiFi NVR Kit with 4 x 2MP WiFi Bullet Cameras, 4mm

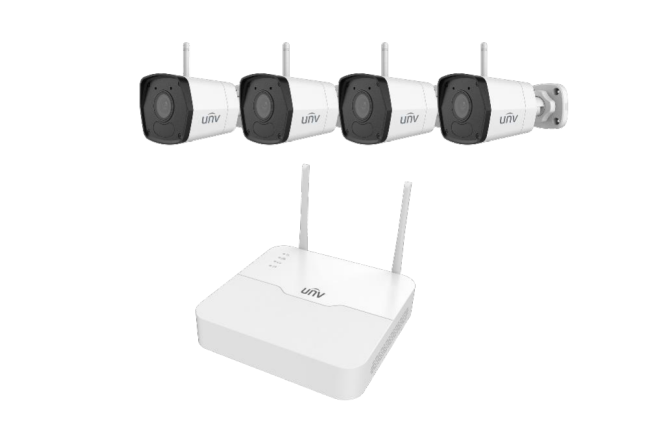

This Uniview kit pairs the NVR301-04LS3-W 4-channel WiFi network video recorder with four IPC2122LB-AF40WK-G 2MP WiFi bullet cameras. The cameras connect to the recorder over 2.4 GHz WiFi, so no network cable is needed to each camera.

What the KIT-NVR301-04LS3-W-4-2122LB-ABF40WK-G is for

It suits homes and small sites where running network cable to every camera is impractical. The recorder has an embedded WiFi module (IEEE 802.11b/g/n, 2.4 GHz, WPA2-PSK), records up to 1080P on all four channels and takes one SATA hard drive of up to 6 TB.

Each camera has a 1/2.9" 2MP sensor, a fixed 4.0 mm lens, Smart IR to 30 m, a built-in mic and an IP67 housing. Uniview's DORI figures for the 4.0 mm lens are 64.3 m to detect, 25.7 m to observe, 12.9 m to recognise and 6.4 m to identify. Human body detection is listed on both the cameras and the recorder.

Key features

• 4-channel WiFi NVR with HDMI and VGA outputs (synchronous)
• Four 2MP (1920 × 1080) WiFi bullet cameras, 4.0 mm fixed lens
• Smart IR up to 30 m, IP67, built-in mic on each camera
• Ultra 265, H.265 and H.264; up to 1080P recording
• 1 SATA bay, up to 6 TB; cloud upgrade
• Cameras also support Micro SD up to 128 GB

Full specification

What you will need

The cameras are powered by 12 V DC (Ø5.5 mm plug), not PoE, so each camera needs a 12 V supply near its mounting point; the recorder also runs on 12 V DC. Add a surveillance hard drive of up to 6 TB for recording. A network cable connects the recorder to your router. For larger systems see our NVRs.

Buying from Zenith Security Co.

We are a supplier, not an installer. We will go through the KIT-NVR301-04LS3-W-4-2122LB-ABF40WK-G with you before you buy — WiFi range on your site, camera power, hard drive size and coverage — and depending on your requirements and your area we can recommend a qualified trade installer. We have been operating since 2012 and you can visit our trade counter in Wolverhampton.

What is in this kit?

One NVR301-04LS3-W 4-channel WiFi recorder and four IPC2122LB-AF40WK-G 2MP WiFi bullet cameras with 4.0 mm lenses.

Do the cameras need cables?

Video goes over 2.4 GHz WiFi, but each camera still needs 12 V DC power. They do not take PoE.

Is a hard drive included?

No hard drive is listed. The recorder has one SATA bay for a drive of up to 6 TB.

How far is the night vision?

Each camera has Smart IR rated up to 30 m.

Is this a trade-price product?

Yes. Uniview products are supplied at trade prices to approved trade customers, so the price is shown once you are logged in to a trade account. Call 01902 902251 or see our trade customer page to open an account.

How quickly can I get it?

We ship nationally from our multi-million pound warehouse, with orders leaving daily. Orders placed before 2:30pm are normally dispatched for delivery within 1–2 working days to England, Scotland and Wales. You can also collect in store from our trade counter — call first so we can confirm your order is ready. We do not ship to Northern Ireland.

Can I collect or see one before buying?

Yes. Our trade counter is at Unit 3, Park View Centre, 243 Dudley Road, Wolverhampton WV2 3JU. Call first so we can confirm the item is there for you.

Questions on specification or compatibility: call 01902 902251, see our FAQ and support pages, or contact us. Trade accounts are available — see trade customers. Browse the full Uniview range.
