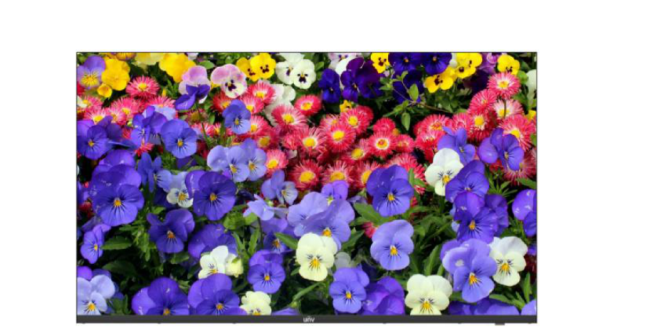

UNIVIEW - MW3255-F-V2 - 55 Inch 4K LED Monitor
Product Features
55-inch 4K (3840 × 2160) LED monitor with an industrial-grade panel rated for 24/7 operation, 2 × HDMI and 2 × DP inputs, 2 × 10 W speakers and 200 × 200 mm VESA mounting. Remote, HDMI and power cable included.
MW3255-F-V2 — 55 Inch 4K LED Monitor
The Uniview MW3255-F-V2 is a 55-inch 4K LED monitor with an industrial-grade panel rated for 24/7 continuous operation, for control rooms and large viewing positions.
What the MW3255-F-V2 is for
It displays 4K (3840 × 2160) video from a 4K-capable NVR or other source, so multi-camera layouts stay legible at size. It has two HDMI and two DisplayPort inputs and 178° viewing angles.
It runs from mains (AC 100 to 240 V) and mounts on a wall using its 200 × 200 mm VESA pattern, or on a stand. Uniview lists silent operation.
Key features
- 55-inch LED panel, 3840 × 2160, 60 Hz, 8 ms response
- 350 cd/m² brightness, 1200:1 contrast, 1.07 B colours
- Industrial-grade panel, 24/7 continuous operation
- 2 × HDMI, 2 × DP, 3.5 mm headphone output
- 2 × 10 W speakers
- VESA 200 × 200 mm, remote control included
Full specification
| Panel | |
| Backlight | LED |
| Panel Size | 55" |
| Resolution | 3840 × 2160 |
| Pixel Pitch (H × V) | 0.315 × 0.315 mm |
| Colour Support | 1.07 B |
| Brightness | 350 cd/m² |
| Contrast Ratio | 1200:1 |
| Refresh Rate | 60 Hz |
| Response Time | 8 ms |
| Viewing Angle (H/V) | 178° / 178° |
| Display Size | 1209.60 × 680.40 mm |
| Interface | |
| Video Input | 2 × HDMI, 2 × DP |
| Audio Output | 3.5 mm headphone jack |
| Speaker | 2 × 10 W |
| Mounting | |
| VESA | 200 × 200 mm |
| Wall-mount Thread | M6, 10 mm deep |
| General | |
| Input Voltage | AC 100 to 240 V, 50/60 Hz |
| Typical Power Consumption | ≤ 120 W |
| Standby Power | ≤ 0.5 W |
| Dimensions (W × H × D) | 1226.20 × 708.70 × 74 mm |
| Package Dimensions | 1325 × 820 × 140 mm |
| Weight | Net 11.4 kg, gross 15.5 kg |
| Operating Environment | 0°C to 40°C, humidity 20% to 85% (non-condensing) |
| Storage Environment | -20°C to 60°C, humidity 10% to 90% (non-condensing) |
| In the Box | 1 × HDMI cable, 1 × quick guide, 1 × remote control, 1 × power cable |
| Optional Accessories | HB-4032-E wall bracket, HB-5055-H pedestal support |
What you will need
Connect it to a 4K-capable NVR or other source with the supplied HDMI cable. It runs from mains power with the included cable. A wall bracket or pedestal is optional and sold separately.
Buying from Zenith Security Co.
We are a supplier, not an installer. We will go through the MW3255-F-V2 with you before you buy — screen size, 4K output from your recorder and mounting — and depending on your requirements and your area we can recommend a qualified trade installer. We have been operating since 2012 and you can visit our trade counter in Wolverhampton.
What resolution is the MW3255-F-V2?
4K UHD, 3840 × 2160, at 60 Hz.
What inputs does it have?
Two HDMI and two DisplayPort inputs, plus a 3.5 mm headphone output.
Can it run 24/7?
Yes. Uniview lists an industrial-grade panel for 24/7 continuous operation.
Can it be wall mounted?
Yes, with a 200 × 200 mm VESA bracket using M6 threads.
Is this a trade-price product?
Yes. Uniview products are supplied at trade prices to approved trade customers, so the price is shown once you are logged in to a trade account. Call 01902 902251 or see our trade customer page to open an account.
How quickly can I get it?
We ship nationally from our multi-million pound warehouse, with orders leaving daily. Orders placed before 2:30pm are normally dispatched for delivery within 1–2 working days to England, Scotland and Wales. You can also collect in store from our trade counter — call first so we can confirm your order is ready. We do not ship to Northern Ireland.
Can I collect or see one before buying?
Yes. Our trade counter is at Unit 3, Park View Centre, 243 Dudley Road, Wolverhampton WV2 3JU. Call first so we can confirm the item is there for you.
Questions on specification or compatibility: call 01902 902251, see our FAQ and support pages, or contact us. Trade accounts are available — see trade customers. Browse the full Uniview range.
| Product Code | MW3255-F-V2 |
|---|---|
| Manufacturer | Uniview |
| Colour | Black |
