UNIVIEW - NSW2020-24T1GT1GC-POE-IN - Unmanaged Ethernet PoE Switch, 24 PoE Ports, 370W

NSW2020-24T1GT1GC-POE-IN — Unmanaged Ethernet PoE Switch, 24 PoE Ports, 370W

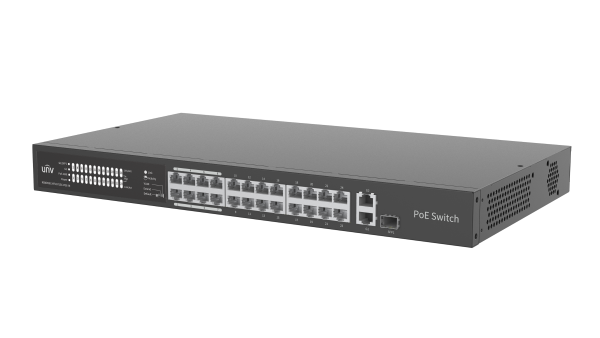

The Uniview NSW2020-24T1GT1GC-POE-IN is an unmanaged Ethernet PoE switch with 24 100Mbps PoE ports, one 1000Mbps Ethernet port and one 1000Mbps combo port. It supplies up to 370W of PoE in total and up to 30W on a single port.

What the NSW2020-24T1GT1GC-POE-IN is for

It suits a CCTV network of up to 24 PoE IP cameras, with the gigabit and combo ports used to link to the recorder or the rest of the network. The combo port gives a choice of copper or fibre for that uplink.

The 370W budget is the limit to plan around: add up the actual draw of your cameras rather than assuming 30W on every port. Uniview lists IEEE 802.3af and 802.3at in PoE mode B (4578). Default mode lets all ports talk to each other; VLAN (secure) mode lets downlink ports communicate only with uplink ports.

Key features

• 24 x 100Mbps PoE ports (RJ45), 1 x 1000Mbps Ethernet port and 1 x 1000Mbps combo port
• PoE budget of 370W in total, up to 30W on a single port
• IEEE 802.3af and 802.3at, PoE mode B (4578)
• Switching capacity 8.8 Gbps, forwarding performance 6.55Mpps, 16K MAC table
• Mains powered (AC 100 to 240V), 440 x 250 x 44mm body, 1 cooling fan
• Uniview lists NDAA compliance for this model

Full specification

What you will need

You need a mains supply (AC 100 to 240V, 50/60Hz), network cable to each device and PoE cameras whose combined draw stays within 370W. Use the 1000Mbps port or the combo port to link to your recorder or network. See our PoE switches and NVRs.

Buying from Zenith Security Co.

We are a supplier, not an installer. We will go through the NSW2020-24T1GT1GC-POE-IN with you before you buy — how many PoE cameras fit the 370W budget and which port to use for the uplink — and depending on your requirements and your area we can recommend a qualified trade installer. We have been operating since 2012 and you can visit our trade counter in Wolverhampton.

How much PoE power does the NSW2020-24T1GT1GC-POE-IN supply?

Up to 370W in total and up to 30W on a single port.

Which ports on the NSW2020-24T1GT1GC-POE-IN are gigabit?

One 1000Mbps Ethernet port and one 1000Mbps combo port. The 24 PoE ports are 100Mbps.

Is the NSW2020-24T1GT1GC-POE-IN managed?

No. It is an unmanaged switch; the only setting is the working mode (default, VLAN secure or Extend surveillance mode).

Does the NSW2020-24T1GT1GC-POE-IN have a fan?

Yes, Uniview lists 1 cooling fan. Maximum power consumption is 390W.

Is this a trade-price product?

Yes. Uniview products are supplied at trade prices to approved trade customers, so the price is shown once you are logged in to a trade account. Call 01902 902251 or see our trade customer page to open an account.

How quickly can I get it?

We ship nationally from our multi-million pound warehouse, with orders leaving daily. Orders placed before 2:30pm are normally dispatched for delivery within 1–2 working days to England, Scotland and Wales. You can also collect in store from our trade counter — call first so we can confirm your order is ready. We do not ship to Northern Ireland.

Can I collect or see one before buying?

Yes. Our trade counter is at Unit 3, Park View Centre, 243 Dudley Road, Wolverhampton WV2 3JU. Call first so we can confirm the item is there for you.

Questions on specification or compatibility: call 01902 902251, see our FAQ and support pages, or contact us. Trade accounts are available — see trade customers. Browse the full Uniview range.
