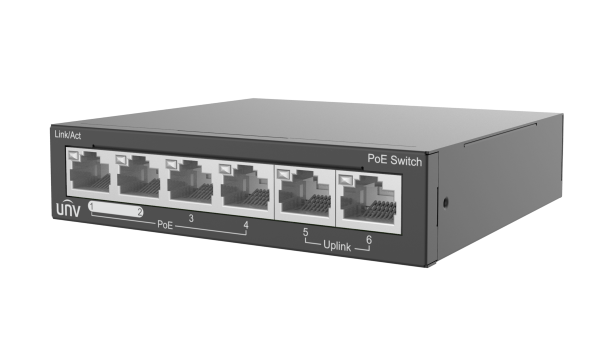

UNIVIEW - NSW2020-6T-POE-IN - Unmanaged Ethernet PoE Switch, 6 Ports (4 PoE)

NSW2020-6T-POE-IN — Unmanaged Ethernet PoE Switch, 6 Ports (4 PoE)

The Uniview NSW2020-6T-POE-IN is a small unmanaged Ethernet switch with six 100Mbps ports, four of them PoE, sharing a 60W PoE budget with up to 30W on a single port.

What the NSW2020-6T-POE-IN is for

It suits a small CCTV setup of up to four PoE IP cameras, with the two non-PoE ports used to connect a recorder or router. It is the original version of the NSW2020-6T-POE-IN; a V2 revision is listed separately.

Power comes from a 48/51V DC adapter (100 to 240V input). Extend (surveillance) mode gives transmission distance up to 250 metres. Uniview lists IEEE 802.3af and 802.3at in PoE mode B (4578). The fanless body is 107 x 101 x 25mm and weighs 0.19KG.

Key features

• 6 x 100Mbps RJ45 ports, 4 with PoE
• PoE budget of 60W, up to 30W on a single port
• IEEE 802.3af and 802.3at, PoE mode B (4578)
• Extend mode for runs up to 250 metres
• Fanless, 107 x 101 x 25mm, 0.19KG
• Uniview lists NDAA compliance for this model

Full specification

What you will need

It runs from a 48/51V DC adapter (100 to 240V, 50/60Hz). You need network cable to each device and PoE cameras whose combined draw stays within 60W. See our PoE switches and NVRs.

Buying from Zenith Security Co.

We are a supplier, not an installer. We will go through the NSW2020-6T-POE-IN with you before you buy — whether four PoE ports and 60W cover your cameras — and depending on your requirements and your area we can recommend a qualified trade installer. We have been operating since 2012 and you can visit our trade counter in Wolverhampton.

How many PoE ports does the NSW2020-6T-POE-IN have?

Four of its six 100Mbps ports supply PoE, up to 60W in total and 30W on one port.

Is the NSW2020-6T-POE-IN the same as the V2?

It is the original model; the NSW2020-6T-POE-IN-V2 is a later revision listed separately. Ask us if you need to match an existing install.

How far can the NSW2020-6T-POE-IN reach?

In Extend (surveillance) mode Uniview states transmission distance up to 250 metres.

Does the NSW2020-6T-POE-IN have a fan?

No, Uniview lists 0 cooling fans.

Is this a trade-price product?

Yes. Uniview products are supplied at trade prices to approved trade customers, so the price is shown once you are logged in to a trade account. Call 01902 902251 or see our trade customer page to open an account.

How quickly can I get it?

We ship nationally from our multi-million pound warehouse, with orders leaving daily. Orders placed before 2:30pm are normally dispatched for delivery within 1–2 working days to England, Scotland and Wales. You can also collect in store from our trade counter — call first so we can confirm your order is ready. We do not ship to Northern Ireland.

Can I collect or see one before buying?

Yes. Our trade counter is at Unit 3, Park View Centre, 243 Dudley Road, Wolverhampton WV2 3JU. Call first so we can confirm the item is there for you.

Questions on specification or compatibility: call 01902 902251, see our FAQ and support pages, or contact us. Trade accounts are available — see trade customers. Browse the full Uniview range.
