UNIVIEW - NVR301-04B-IQ - 4-Channel Network Video Recorder with 1 SATA Bay
Product Features
4-channel Easy Series NVR with one SATA bay (up to 24 TB), 80 Mbps in/out, 4K HDMI and Smart by NVR functions. No PoE ports. Hard drive not included.
NVR301-04B-IQ — 4-Channel Network Video Recorder with 1 SATA Bay

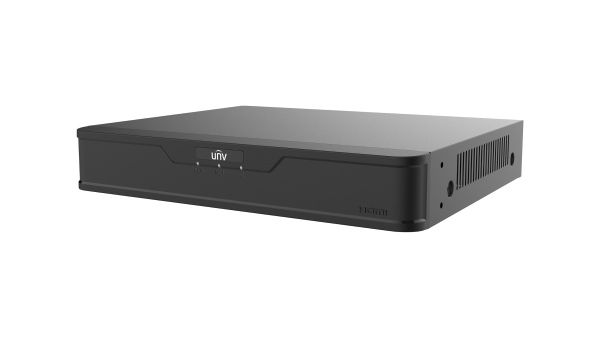

The Uniview NVR301-04B-IQ is a 4-channel Easy Series network video recorder with one SATA bay for a drive of up to 24 TB. It decodes Ultra 265, H.265 and H.264 and records at up to 12 MP.
What the NVR301-04B-IQ is for
It suits a small site of up to four IP cameras, with 80 Mbps incoming and 80 Mbps outgoing bandwidth. Decoding is listed as 2 x 12MP, 2 x 4K or 4 x 4MP at 30 fps.
It has no built-in PoE ports, so cameras are powered from a PoE switch or local supplies. A 1U case (260 × 222 × 47 mm) runs from DC 12 V/2 A at no more than 12W without a drive.
Uniview lists Smart by NVR functions (face detection, SIP and UMD, one analyser mode at a time) and AcuSearch / AcuTrack with Uniview SIP/UMD cameras. Up to 32 IP speakers can be linked.
Key features
- 4 IP video channels, recording up to 12 MP
- 80 Mbps incoming / 80 Mbps outgoing bandwidth
- No built-in PoE; cameras are powered separately
- 1 SATA bay, up to 24 TB
- HDMI up to 4K (3840 × 2160) at 30 Hz plus VGA
- Smart by NVR face detection, SIP and UMD; AcuSearch / AcuTrack
- NDAA compliance listed
Full specification
| Decoding | |
| Decoding Format | Ultra 265,H.265,H.264 |
| Decoding Capability | Smart Off: 2 x 12MP@30, 2 x 4K@30, 4 x 4MP@30 Smart On: 2 x 4K@30, 4 x 4MP@30 |
| Decoding Capability Description | The resolution of each channel cannot exceed 8192 pixels in length and 4096 pixels in width |
| Audio Compression | G.711A, G.711U |
| Network | |
| Incoming Bandwidth | 80 Mbps |
| Outgoing Bandwidth | 80 Mbps |
| Max Remote Users | 128 |
| Protocols | TCP/IP, P2P, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, RTSP, IPv6, IPv4, 802.1x, UPnP |
| Video/Audio Input | |
| IP Video Input | 4-ch |
| RCA Audio Input | 1-ch |
| Peripheral Input | |
| Ip Speaker | 32-ch |
| POS | All channels |
| Video/Audio Output | |
| HDMI Output | 4K (3840 × 2160)/30 Hz, 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz |
| VGA Output | 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz |
| RCA Audio Output | 1-ch |
| Liveview Display | 1/4/6/8/9 |
| Corridor Mode Screen | 3/4 |
| Two-way Audio | |
| Two-way Audio | 1-ch,RCA(Using the audio input and output) |
| Snapshot | |
| FTP/Schedule/Event Snapshot | 4-ch snapshot (max. D1 (720 × 576) video resolution, with D1 snapshot resolution) |
| Recording | |
| Recording Resolution | 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF |
| Num of Concurrent Playback | 16-ch |
| Smart Function | |
| Smart by IPC | All channels (up to 8 images/s in total) Face Detection, Face detection, Vehicle Detection (LPR), SIP, UMD, Traffic Monitoring |
| Smart by NVR | Face Detection, Face detection, Smart Intrusion Prevention (SIP), Ultra Motion Detection (UMD) |
| Smart by NVR Analyzer Mode | Single Mode (), Single Mode (SIP), Single Mode (UMD), Single Mode (AcuSearch/AcuTrack), Modes cannot active simultaneously, only one mode can active at a time. |
| VCA Search | AcuSearch, AcuTrack, , Face detection Search, Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report, Heat Map |
| AcuSearch | |
| Acu Search Performance | All channels with UNV SIP/UMD Camera |
| AcuTrack | |
| Acu Track Performance | All channels with UNV SIP/UMD Camera |
| face detection | |
| face detection by NVR | Up to 4-ch with UNV Face Detection Camera, Up to 1-ch with normal camera (UNV and Third-part brand, 1-ch 2MP) |
| Search by Image | Support |
| Plate Comparison | |
| Vehicle Number Library | Up to 5 vehicle picture libraries, with up to 25,000 vehicle pictures in total |
| SIP | |
| SIP by NVR with normal cameras | Up to 2-ch with normal camera (UNV and Third-part brand, 2-ch 2MP, 1-ch 4MP) |
| UMD | |
| UMD by NVR with normal cameras | Up to 4-ch with normal camera (UNV and Third-part brand, 4-ch 2MP, 2-ch 4MP, 1-ch 4K) |
| Alarm | |
| General Alarm | Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion Detection, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection |
| Alert Alarm | IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal |
| Hard Disk | |
| SATA | 1 SATA Interfaces |
| Capacity | Up to 24 TB for each HDD (The maximum HDD capacity varies with environment temperature and hard disk size, The environment temperature for use should not exceed 40°C) |
| External Interface | |
| Network Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet Interface |
| USB | Rear panel: 1 × USB2.0, 1 × USB3.0 |
| Power Supply | DC 12 V/2 A |
| Working Environment | |
| Working Temperature | -10°C to 55°C |
| Working Humidity | ≤ 90% RH (non-condensing) |
| Power Consumption (without HDD) | ≤ 12W |
| Dimensions | |
| Weight (without HDD) | ≤ 2Kg |
| Height | 1U |
| Dimensions | 260mm × 222mm × 47mm |
| Certification | |
| Certification | CE; FCC; UL; RoHS; WEEE |
| FCC | Part15 Subpart B |
| Compliance | |
| NDAA Compliant | Support |
What you will need
Power the cameras from a PoE switch or their own supplies, and connect them with network cable. No hard drive is supplied, so add a surveillance hard drive of up to 24 TB. It runs from a DC 12 V/2 A supply, and a monitor connects by HDMI or VGA.
Buying from Zenith Security Co.
We are a supplier, not an installer. We will go through the NVR301-04B-IQ with you before you buy — camera count and which hard drive size to fit — and depending on your requirements and your area we can recommend a qualified trade installer. We have been operating since 2012 and you can visit our trade counter in Wolverhampton.
How many cameras can the NVR301-04B-IQ record?
4 IP channels, sharing 80 Mbps of incoming bandwidth.
Is a hard drive included with the NVR301-04B-IQ?
No. It has one SATA bay for a drive of up to 24 TB, so add a surveillance hard drive.
Does the NVR301-04B-IQ power cameras?
No, it has no PoE ports. Use a PoE switch or local supplies for the cameras.
What resolution does the NVR301-04B-IQ record?
Up to 12 MP; decoding is listed as 2 x 12MP, 2 x 4K or 4 x 4MP at 30 fps.
Is this a trade-price product?
Yes. Uniview products are supplied at trade prices to approved trade customers, so the price is shown once you are logged in to a trade account. Call 01902 902251 or see our trade customer page to open an account.
How quickly can I get it?
We ship nationally from our multi-million pound warehouse, with orders leaving daily. Orders placed before 2:30pm are normally dispatched for delivery within 1–2 working days to England, Scotland and Wales. You can also collect in store from our trade counter — call first so we can confirm your order is ready. We do not ship to Northern Ireland.
Can I collect or see one before buying?
Yes. Our trade counter is at Unit 3, Park View Centre, 243 Dudley Road, Wolverhampton WV2 3JU. Call first so we can confirm the item is there for you.
Questions on specification or compatibility: call 01902 902251, see our FAQ and support pages, or contact us. Trade accounts are available — see trade customers. Browse the full Uniview range.
| Product Code | NVR301-04B-IQ |
|---|---|
| Manufacturer | Uniview |
| Colour | Black |
| In/Out Bandwidth | In: 80 Mbps / Out: 80 Mbps |
| Storage Capacity | Up to 24 TB for each HDD |
| USB Port | Rear panel: 1 × USB2.0, 1 × USB3.0 |
| Power Consumption (without HDD) | ≤ 12W |
