NVR301-04B-LP4-IQ — 4-Channel PoE Network Video Recorder with 4 PoE Ports

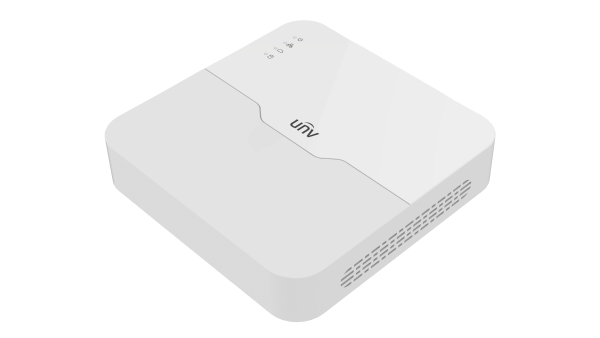

The Uniview NVR301-04B-LP4-IQ is a 4-channel Easy Series network video recorder with one SATA bay for a drive of up to 24 TB, and four built-in PoE ports. It decodes Ultra 265, H.265 and H.264 and records at up to 12 MP.

What the NVR301-04B-LP4-IQ is for

It suits a small site of up to four IP cameras, with 80 Mbps incoming and 80 Mbps outgoing bandwidth. Decoding is listed as 2 x 12MP, 2 x 4K or 4 x 4MP at 30 fps.

Its four PoE ports supply up to 30W each and 50W in total. It runs from DC 48 V/1.35 A, in a 205 × 212 × 46 mm case; Uniview notes the drive's environment should not exceed 35°C.

Uniview lists Smart by NVR functions (face detection, SIP and UMD, one analyser mode at a time) and AcuSearch / AcuTrack with Uniview SIP/UMD cameras. Up to 32 IP speakers can be linked.

Key features

• 4 IP video channels, recording up to 12 MP
• 80 Mbps incoming / 80 Mbps outgoing bandwidth
• 4 PoE ports, max 30W per port and 50W in total, IEEE 802.3af/at
• 1 SATA bay, up to 24 TB
• HDMI up to 4K (3840 × 2160) at 30 Hz plus VGA
• Smart by NVR face detection, SIP and UMD; AcuSearch / AcuTrack
• NDAA compliance listed

Full specification

What you will need

Plug up to four PoE IP cameras into the PoE ports with network cable, keeping their combined draw within 50W. No hard drive is supplied, so add a surveillance hard drive of up to 24 TB. It runs from a DC 48 V/1.35 A supply, and a monitor connects by HDMI or VGA.

Buying from Zenith Security Co.

We are a supplier, not an installer. We will go through the NVR301-04B-LP4-IQ with you before you buy — camera count, PoE draw against the 50W total and which hard drive size to fit — and depending on your requirements and your area we can recommend a qualified trade installer. We have been operating since 2012 and you can visit our trade counter in Wolverhampton.

How many cameras can the NVR301-04B-LP4-IQ record?

4 IP channels, sharing 80 Mbps of incoming bandwidth.

Is a hard drive included with the NVR301-04B-LP4-IQ?

No. It has one SATA bay for a drive of up to 24 TB, so add a surveillance hard drive.

Does the NVR301-04B-LP4-IQ power cameras?

Yes, its 4 PoE ports supply up to 30W each and 50W in total (IEEE 802.3af/at).

What resolution does the NVR301-04B-LP4-IQ record?

Up to 12 MP; decoding is listed as 2 x 12MP, 2 x 4K or 4 x 4MP at 30 fps.
