NVR501-04B-P4 — 4-Channel PoE Network Video Recorder with 4 PoE Ports

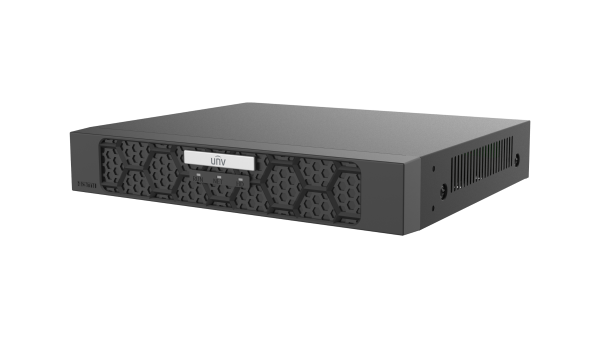

The Uniview NVR501-04B-P4 is a 4-channel Prime Series NVR with four built-in PoE ports and one SATA bay for a drive of up to 24 TB. It records at up to 16 MP.

What the NVR501-04B-P4 is for

It suits a small site of up to four PoE IP cameras plugged straight into the recorder. Incoming bandwidth is 80 Mbps and outgoing 64 Mbps; Ultra 265/H.265 decoding is listed as 2 x 16MP, 2 x 12MP or 4 x 4K at 30 fps.

The PoE ports supply up to 30 W each and 50 W in total. Smart by IPC is listed for a total of 4 channels (face detection, SIP and UMD). This is the standard NVR501-04B-P4; the IQ version is listed separately.

Key features

• 4 IP channels, recording up to 16 MP
• 4 PoE ports, max 30 W per port and 50 W total, IEEE 802.3af/at
• 1 SATA bay, up to 24 TB
• 80 Mbps incoming / 64 Mbps outgoing
• HDMI up to 4K at 30 Hz plus VGA
• DC 48 V/1.35 A, ≤ 10W without drive

Full specification

What you will need

Plug up to four PoE IP cameras into the PoE ports with network cable, keeping their combined draw within 50 W. No hard drive is supplied; add a surveillance hard drive of up to 24 TB. It runs from DC 48 V/1.35 A and a monitor connects by HDMI or VGA.

Buying from Zenith Security Co.

We are a supplier, not an installer. We will go through the NVR501-04B-P4 with you before you buy — PoE draw against the 50 W total and which hard drive size to fit — and depending on your requirements and your area we can recommend a qualified trade installer. We have been operating since 2012 and you can visit our trade counter in Wolverhampton.

Does the NVR501-04B-P4 power cameras?

Yes, its 4 PoE ports supply up to 30 W each and 50 W in total.

What is the difference from the NVR501-04B-P4-IQ?

The IQ model is a separate listing with its own feature set. Ask us to compare them against your cameras.

What resolution does the NVR501-04B-P4 record?

Up to 16 MP.

Is a hard drive included?

No. It has one SATA bay for a drive of up to 24 TB; add a surveillance hard drive.

Is this a trade-price product?

Yes. Uniview products are supplied at trade prices to approved trade customers, so the price is shown once you are logged in to a trade account. Call 01902 902251 or see our trade customer page to open an account.

How quickly can I get it?

We ship nationally from our multi-million pound warehouse, with orders leaving daily. Orders placed before 2:30pm are normally dispatched for delivery within 1–2 working days to England, Scotland and Wales. You can also collect in store from our trade counter — call first so we can confirm your order is ready. We do not ship to Northern Ireland.

Can I collect or see one before buying?

Yes. Our trade counter is at Unit 3, Park View Centre, 243 Dudley Road, Wolverhampton WV2 3JU. Call first so we can confirm the item is there for you.

Questions on specification or compatibility: call 01902 902251, see our FAQ and support pages, or contact us. Trade accounts are available — see trade customers. Browse the full Uniview range.
