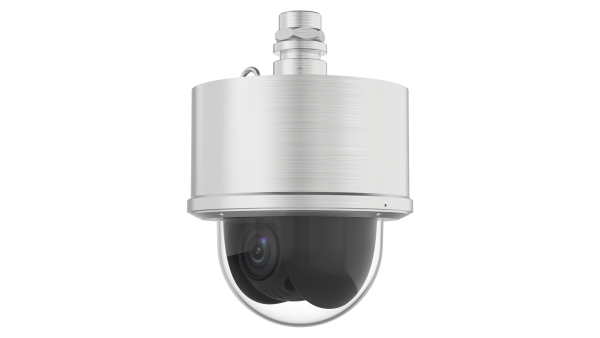

UNIVIEW - UNV-EXC6524S-X33-VD2 - 4MP 33X Explosion-proof Network PTZ Camera
Product Features
4MP explosion-proof network PTZ camera with a 33x 4.5–148.5 mm lens, 120 dB WDR, auto tracking and ATEX/IECEx certification. IP68, 220 V AC; recorder not included.
UNV-EXC6524S-X33-VD2 — 4MP 33X Explosion-proof Network PTZ Camera
The Uniview EXC6524S-X33-VD2 is a 4MP network PTZ camera in an explosion-proof housing, certified to ATEX and IECEx standards, with a 33x optical zoom lens.
What the UNV-EXC6524S-X33-VD2 is for
It is intended for hazardous areas where a certified enclosure is required. The safety certification lists CE LVD, ATEX (EN IEC 60079-0, EN 60079-1, IEC 60079-31) and IECEx (IEC 60079-0, 60079-1, 60079-31); check the zone rating against your site before specifying.
The 4.5–148.5 mm lens gives a horizontal view from 53.6° to 2.68°, and Uniview's DORI figures run from 105.8 m to 3172.5 m to detect and 10.6 m to 317.3 m to identify. It pans 360° endlessly, tilts 0° to 90°, stores 1024 presets and supports auto tracking. Housing is IP68 and the working range is -40°C to 60°C.
Key features
- 4MP, 1/2.7" CMOS sensor, 120 dB WDR
- 33x optical zoom, 4.5–148.5 mm, F1.5–F4.0
- 360° endless pan, 1024 presets, auto tracking, 3D positioning
- ATEX and IECEx certification, IP68
- Smart intrusion prevention with human/vehicle classification
- MicroSD up to 512 GB, two-way audio, 2/1 alarm I/O
- AC 220 V (100–240 V), 17 W
Full specification
| Camera | |
| Max Resolution | 4 MP |
| Sensor | 1/2.7" CMOS |
| Min. Illumination | Colour: 0.002 lux (F1.5, AGC ON); B/W: 0.001 lux (F1.5, AGC ON); 0 lux with IR |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 to 1/100000 s |
| S/N | > 56 dB |
| WDR | 120 dB |
| Lens | |
| Focal Length | 4.5 to 148.5 mm |
| Optical Zoom | 33X |
| Iris | F1.5 to F4.0 |
| Field of View (H) | 53.6° to 2.68° |
| Field of View (V) | 31.7° to 1.51° |
| Field of View (D) | 65.9° to 3.20° |
| DORI | |
| DORI Distance (Detect) | 105.8 m to 3172.5 m |
| DORI Distance (Observe) | 42.3 m to 1269.0 m |
| DORI Distance (Recognize) | 21.2 m to 634.5 m |
| DORI Distance (Identify) | 10.6 m to 317.3 m |
| Video | |
| Video Resolution | Main Stream: 4MP (2688×1520), max. 30 fps; Sub Stream: 2MP (1920×1080), max. 30 fps; Third, Fourth and Fifth Streams: D1 (720 × 576), max. 30 fps |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Video Bit Rate | 128 Kbps to 16 Mbps |
| OSD | Up to 10 OSDs |
| Privacy Mask | 24 areas, up to 8 areas per scene |
| ROI | Support |
| U-code | Support |
| Video Stream | Five streams |
| Image | |
| White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 |
| Digital Noise Reduction | 2D/3D DNR |
| Flip | Normal, Flip vertical, Flip horizontal, 180° |
| HLC | Support |
| BLC | Support |
| Defog | Digital defog |
| Image Stabilization | DIS |
| Intelligent | |
| Smart Intrusion Prevention | Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) |
| Auto Tracking | Support |
| People Counting | Support people flow counting and crowd density detection |
| Audio | |
| Audio Compression | G.711U, G.711A |
| Two-way Audio | Support |
| Suppression | Support |
| Sampling Rate | 8 kHz, 16 kHz |
| Events | |
| Basic Detection | Tampering alarm, Audio detection, Custom Event, Motion detection |
| General Function | IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication, Alarm input, Alarm output, Watermark |
| PTZ | |
| Pan Range | 360° (endless) |
| Pan Speed | 0.1°/s to 240°/s |
| Tilt Range | 0° to +90° |
| Tilt Speed | 0.1°/s to 120°/s |
| Number of Presets | 1024 |
| Number of Patrols | 16 |
| Preset Image Freeze, Home Position, Patrol Recording, 3D Positioning | Support |
| Storage | |
| Edge Storage | MicroSD, up to 512 GB |
| Network Storage | ANR, NAS (NFS) |
| Network | |
| Compatible Integration | SDK, ONVIF (Profile S, Profile G, Profile T, Profile M) |
| Maximum Bandwidth | 50 Mbps |
| Interface | |
| Audio I/O | 1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p]; 1 Output: impedance 600 Ω, amplitude 2 V [p-p] |
| Alarm I/O | 2/1 |
| Serial Port | 1 × RS485 |
| Network | 1 × RJ45 10 M/100 M Base-TX Ethernet |
| General | |
| Power | AC 220 V (100 to 240 V) |
| Power Consumption | 17.0 W |
| Power Interface | Wires with cold-pressed terminal |
| PoE Support | 802.3at |
| Dimensions | Ø197.4 mm × 275.0 mm (Ø × H) |
| Weight | 7.34 kg |
| Working Environment | -40°C to 60°C, Humidity: ≤ 95% RH (non-condensing) |
| Surge Protection | 6 KV |
| Certification | |
| Protection | IP68 |
| Safety | CE LVD: EN IEC 62368-1; ATEX: EN IEC 60079-0, EN 60079-1, IEC 60079-31; IECEx: IEC 60079-0, IEC 60079-1, IEC 60079-31 |
| NDAA Compliant | Support |
What you will need
Mains power, AC 220 V (100–240 V), via wires with cold-pressed terminals; the datasheet also lists 802.3at PoE support. Use a network cable for the 10/100 Mbps Ethernet connection and record to a compatible NVR with surveillance hard drives, or a microSD card of up to 512 GB. Installation in a hazardous area must follow the applicable standards.
Buying from Zenith Security Co.
We are a supplier, not an installer. We will go through the UNV-EXC6524S-X33-VD2 with you before you buy — the certification against your site's zone requirements, the lens range and power arrangements — and depending on your requirements and your area we can recommend a qualified trade installer. We have been operating since 2012 and you can visit our trade counter in Wolverhampton.
Is the UNV-EXC6524S-X33-VD2 ATEX certified?
The datasheet lists ATEX (EN IEC 60079-0, EN 60079-1, IEC 60079-31) and IECEx certification.
What zoom does the UNV-EXC6524S-X33-VD2 have?
33x optical, 4.5 to 148.5 mm, with a horizontal view of 53.6° to 2.68°.
How is the UNV-EXC6524S-X33-VD2 powered?
AC 220 V (100–240 V), with a power consumption of 17 W.
Does the UNV-EXC6524S-X33-VD2 track targets?
Yes, auto tracking is listed, along with smart intrusion prevention.
Is this a trade-price product?
Yes. Uniview products are supplied at trade prices to approved trade customers, so the price is shown once you are logged in to a trade account. Call 01902 902251 or see our trade customer page to open an account.
How quickly can I get it?
We ship nationally from our multi-million pound warehouse, with orders leaving daily. Orders placed before 2:30pm are normally dispatched for delivery within 1–2 working days to England, Scotland and Wales. You can also collect in store from our trade counter — call first so we can confirm your order is ready. We do not ship to Northern Ireland.
Can I collect or see one before buying?
Yes. Our trade counter is at Unit 3, Park View Centre, 243 Dudley Road, Wolverhampton WV2 3JU. Call first so we can confirm the item is there for you.
