UNIVIEW - UNV-IPC2105SB-ADF16KM-I0 - 5MP HD 180° Wide-angle IR Fixed Bullet Network Camera, 1.68mm

UNV-IPC2105SB-ADF16KM-I0 — 5MP HD 180° Wide-angle IR Fixed Bullet Network Camera, 1.68mm

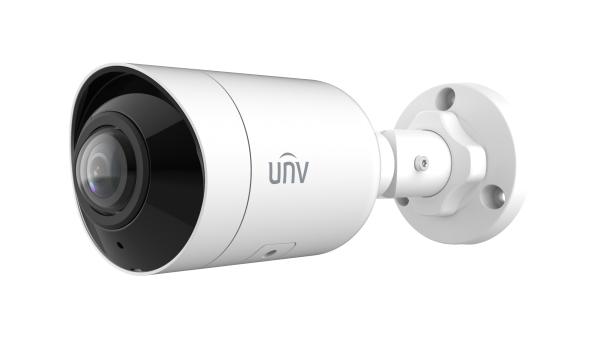

The Uniview IPC2105SB-ADF16KM-I0 is a 5MP fixed bullet network camera with a 1.68 mm lens that covers 180° horizontally, so one camera can watch a full wall-to-wall view.

What the UNV-IPC2105SB-ADF16KM-I0 is for

The 180° horizontal and 100° vertical field of view suits car parks, yards and long building frontages where several narrower cameras would otherwise be needed. Dewarping is supported. Uniview's DORI distances are 37.8 m to detect and 3.8 m to identify.

IR reaches 20 m at 850 nm with Smart IR, and minimum illumination is 0.01 lux in colour at F2.0. It is rated IP67 and works from -30°C to 60°C.

Key features

• 5MP, 1/2.7" CMOS sensor, 120 dB WDR
• 1.68 mm lens, 180° horizontal field of view, dewarping
• 850 nm IR to 20 m with Smart IR
• Smart intrusion prevention with human/vehicle classification
• Built-in microphone
• IP67, PoE (802.3af) or 12 V DC, max 5.5 W, microSD up to 512 GB

Full specification

What you will need

Supply PoE (IEEE 802.3af) from a PoE switch or an NVR's built-in PoE ports, or 12 V DC; maximum draw is 5.5 W. Use a network cable for the run. For recording, add a compatible NVR or a microSD card of up to 512 GB, with surveillance hard drives in the recorder. None of these is supplied.

Buying from Zenith Security Co.

We are a supplier, not an installer. We will go through the UNV-IPC2105SB-ADF16KM-I0 with you before you buy — the lens and coverage, how to power it and which recorder suits it — and depending on your requirements and your area we can recommend a qualified trade installer. We have been operating since 2012 and you can visit our trade counter in Wolverhampton.

What field of view does the UNV-IPC2105SB-ADF16KM-I0 have?

180° horizontal, 100° vertical and 180° diagonal from its 1.68 mm lens.

Is the UNV-IPC2105SB-ADF16KM-I0 PoE?

Yes, it takes PoE (IEEE 802.3af) or DC 12 V ±25%, with maximum consumption of 5.5 W.

How far does the IR reach on the UNV-IPC2105SB-ADF16KM-I0?

The stated IR distance is 20 m.
