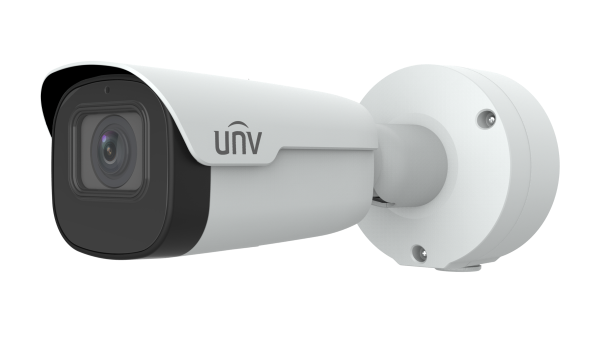

UNIVIEW - UNV-IPC2A24SE-ADZK-I0 - 4MP HD IR Motorised Varifocal Bullet Network Camera, 2.8-12mm

UNV-IPC2A24SE-ADZK-I0 — 4MP HD IR Motorised Varifocal Bullet Network Camera, 2.8-12mm

The Uniview IPC2A24SE-ADZK-I0 is a 4MP bullet network camera with a motorised 2.8 to 12 mm lens, so the view can be set remotely to suit the scene.

What the UNV-IPC2A24SE-ADZK-I0 is for

The lens range gives a horizontal field of view from 113.7° to 42.6°, and Uniview's DORI distances run from 68.0 m to 166.2 m to detect and 6.8 m to 16.6 m to identify, wide to tele. IR reaches 80 m at 850 nm, which suits long perimeters and car parks.

Minimum illumination is 0.0005 lux in colour at F1.2. The camera is rated IP67 and IK10 and works from -40°C to 60°C. The intelligent functions include smart intrusion prevention, people counting and a traffic monitoring mode that captures number plate pictures as vehicles cross a tripwire.

Key features

• 4MP (2688 × 1520), 1/1.8" CMOS sensor, 120 dB WDR
• Motorised 2.8–12 mm lens, 113.7° to 42.6° horizontal view
• 850 nm IR to 80 m
• Smart intrusion prevention, people counting, traffic monitoring
• Built-in microphone, 2/1 alarm I/O
• IP67, IK10, PoE (802.3af) or 12 V DC, max 10 W, microSD up to 512 GB

Full specification

What you will need

Supply PoE (IEEE 802.3af) from a PoE switch or an NVR's built-in PoE ports, or 12 V DC; maximum draw is 10 W. Use a network cable for the run. For recording, add a compatible NVR or a microSD card of up to 512 GB, with surveillance hard drives in the recorder. None of these is supplied.

Buying from Zenith Security Co.

We are a supplier, not an installer. We will go through the UNV-IPC2A24SE-ADZK-I0 with you before you buy — the motorised 2.8 to 12 mm lens, coverage distances, and how to power and record from it — and depending on your requirements and your area we can recommend a qualified trade installer. We have been operating since 2012 and you can visit our trade counter in Wolverhampton.

What focal length does the UNV-IPC2A24SE-ADZK-I0 have?

A motorised 2.8 to 12 mm lens, with a horizontal view of 113.7° to 42.6°.

How far does the IR reach on the UNV-IPC2A24SE-ADZK-I0?

The stated IR distance is 80 m.

Is the UNV-IPC2A24SE-ADZK-I0 PoE?

Yes, PoE (IEEE 802.3af) or DC 12 V ±25%, up to 10 W.

Is this a trade-price product?

Yes. Uniview products are supplied at trade prices to approved trade customers, so the price is shown once you are logged in to a trade account. Call 01902 902251 or see our trade customer page to open an account.

How quickly can I get it?

We ship nationally from our multi-million pound warehouse, with orders leaving daily. Orders placed before 2:30pm are normally dispatched for delivery within 1–2 working days to England, Scotland and Wales. You can also collect in store from our trade counter — call first so we can confirm your order is ready. We do not ship to Northern Ireland.

Can I collect or see one before buying?

Yes. Our trade counter is at Unit 3, Park View Centre, 243 Dudley Road, Wolverhampton WV2 3JU. Call first so we can confirm the item is there for you.

Questions on specification or compatibility: call 01902 902251, see our FAQ and support pages, or contact us. Trade accounts are available — see trade customers. Browse the full Uniview range.
