UNIVIEW - UNV-IPC325SB-DF28K-I0 - 5MP HD IR Fixed Dome Network Camera, 2.8mm

UNV-IPC325SB-DF28K-I0 — 5MP HD IR Fixed Dome Network Camera, 2.8mm

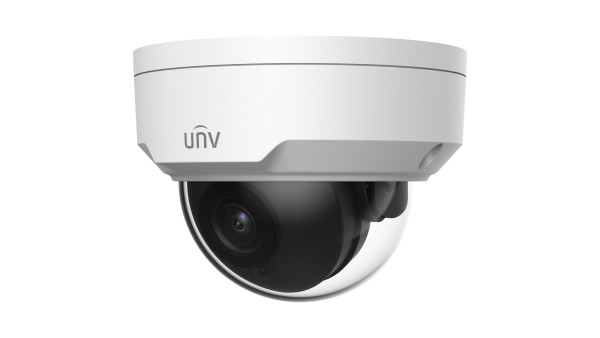

The Uniview IPC325SB-DF28K-I0 is a 5MP fixed dome network camera with a 2.8 mm lens and IR, in a metal IP67 and IK10 housing.

What the UNV-IPC325SB-DF28K-I0 is for

The 2.8 mm lens gives a 110.0° horizontal field of view, and Uniview's DORI distances are 63.0 m to detect and 6.3 m to identify. IR reaches 30 m at 850 nm, and minimum illumination is 0.002 lux in colour at F1.6.

The IK10 rating makes it suitable for lower mounting heights where a camera could be knocked or tampered with. It is rated IP67 and works from -30°C to 60°C. This model has no built-in microphone; smart intrusion prevention with human and vehicle classification is supported.

Key features

• 5MP, 1/2.7" CMOS sensor, 120 dB WDR
• Fixed 2.8 mm lens, 110.0° horizontal view
• 850 nm IR to 30 m
• Smart intrusion prevention with human/vehicle classification
• 1/1 alarm I/O, audio in/out
• IP67, IK10, PoE (802.3af) or 12 V DC, max 4.5 W, microSD up to 512 GB

Full specification

What you will need

Supply PoE (IEEE 802.3af) from a PoE switch or an NVR's built-in PoE ports, or 12 V DC; maximum draw is 4.5 W. Use a network cable for the run. For recording, add a compatible NVR or a microSD card of up to 512 GB, with surveillance hard drives in the recorder. None of these is supplied.

Buying from Zenith Security Co.

We are a supplier, not an installer. We will go through the UNV-IPC325SB-DF28K-I0 with you before you buy — the lens and coverage, how to power it and which recorder suits it — and depending on your requirements and your area we can recommend a qualified trade installer. We have been operating since 2012 and you can visit our trade counter in Wolverhampton.

Is the UNV-IPC325SB-DF28K-I0 vandal resistant?

It is rated IK10 for impact and IP67 for weather, in a metal housing.

Does the UNV-IPC325SB-DF28K-I0 have a microphone?

No, a built-in microphone is not listed for this model. It has an audio input and output for external devices.

Is the UNV-IPC325SB-DF28K-I0 PoE?

Yes, PoE (IEEE 802.3af) or DC 12 V ±25%, up to 4.5 W.

Is this a trade-price product?

Yes. Uniview products are supplied at trade prices to approved trade customers, so the price is shown once you are logged in to a trade account. Call 01902 902251 or see our trade customer page to open an account.

How quickly can I get it?

We ship nationally from our multi-million pound warehouse, with orders leaving daily. Orders placed before 2:30pm are normally dispatched for delivery within 1–2 working days to England, Scotland and Wales. You can also collect in store from our trade counter — call first so we can confirm your order is ready. We do not ship to Northern Ireland.

Can I collect or see one before buying?

Yes. Our trade counter is at Unit 3, Park View Centre, 243 Dudley Road, Wolverhampton WV2 3JU. Call first so we can confirm the item is there for you.

Questions on specification or compatibility: call 01902 902251, see our FAQ and support pages, or contact us. Trade accounts are available — see trade customers. Browse the full Uniview range.
