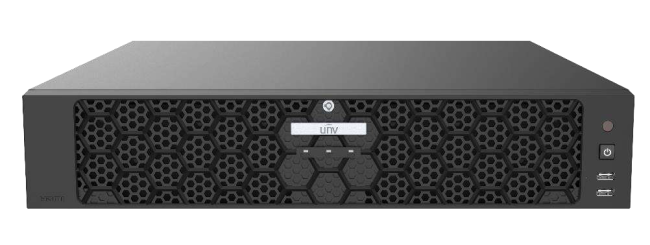

UNIVIEW - UNV-NVR508-64E-R - 64-Channel 8-Bay NVR with RAID and Redundant Power Option
Product Features
Uniview NVR508-64E-R 64-channel 2U network video recorder with 8 SATA bays (up to 16 TB each), RAID 0/1/5/6/10, hot swap, 384 Mbps incoming bandwidth and optional redundant power. Hard drives not included.
UNV-NVR508-64E-R — 64-Channel 8-Bay NVR with RAID and Redundant Power Option
The Uniview NVR508-64E-R is a 64-channel network video recorder with 8 SATA drive bays, configurable RAID and an optional redundant power supply.
What the UNV-NVR508-64E-R is for
It is built for larger IP camera systems where recordings need to survive a drive failure. RAID 0, 1, 5, 6 and 10 are supported with hot swap and N+1 hot spare, and ANR fills recording gaps after a network drop.
Incoming and outgoing bandwidth are each 384 Mbps, recording runs up to 32 MP, and it decodes Ultra 265, H.265 and H.264. There are two HDMI and two VGA outputs (HDMI up to 4K at 60 Hz), with HDMI1/VGA1 and HDMI2/VGA2 working as independent output pairs.
Key features
- 64 IP video input channels, recording up to 32 MP
- 8 SATA interfaces, up to 16 TB per drive, plus eSATA
- RAID 0, 1, 5, 6 and 10 with hot swap and N+1 hot spare
- 384 Mbps incoming and outgoing bandwidth, 128 remote users
- 2 × HDMI (up to 4K) and 2 × VGA, independent output pairs
- 2 × gigabit RJ45, 16 alarm in, 10 alarm out, redundant PSU optional
Full specification
| Video/Audio Input | |
| IP Video Input | 64-ch |
| Audio Input | 1-ch, RCA |
| Network | |
| Incoming Bandwidth | 384 Mbps |
| Outgoing Bandwidth | 384 Mbps |
| Remote Users | 128 |
| Protocols | TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, NFS, RTSP, 802.1x, IPv6 |
| Browser | Windows: IE10/11, Firefox 52+, Chrome 45+, Edge 79+ |
| Video/Audio Output | |
| HDMI1, HDMI2 | 4K (3840 × 2160)@60, 4K@30, 1920 × 1080p@60/50, 1600 × 1200@60, 1280 × 1024@60, 1280 × 720@60, 1024 × 768@60 |
| VGA1, VGA2 | 1920 × 1080p@60/50, 1600 × 1200@60, 1280 × 1024@60, 1280 × 720@60, 1024 × 768@60 |
| Recording Resolution | 32MP/16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Audio Output | 2-ch, RCA |
| Two-way Audio | 1-ch, RCA (using the audio input and output) |
| Audio Compression | G.711A, G.711U |
| Synchronous Playback | 16-ch |
| Live View Display | HDMI1/VGA1: 1/4/6/8/9/16/25/36/64; HDMI2/VGA2: 1/4/6/8/9/16/25/36 |
| Corridor Mode Screen | 3/4/5/7/9/10/12/16/32 |
| FTP/Schedule/Event Snapshot | 16-ch snapshot, up to 1080P resolution |
| Decoding | |
| Decoding Format | Ultra 265, H.265, H.264 |
| Live View/Playback | 32MP/12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Capability | 2 × 32MP@30, 4 × 16MP@30, 5 × 12MP@30, 8 × 4K@30, 16 × 4MP@30, 32 × 1080P@30, 54 × 960P@25, 72 × 720P@30, 128 × D1 |
| Hard Disk | |
| SATA | 8 SATA interfaces |
| Capacity | Up to 16 TB for each disk |
| Disk Group | Support |
| Disk Array Type | RAID 0/1/5/6/10 |
| Smart | |
| VCA Detection by Camera | Smart Intrusion Prevention (cross line, intrusion, enter area, leave area, with human and vehicle classification), Ultra Motion Detection, Temperature Detection, People Counting, Video Metadata, Traffic Monitoring |
| VCA Search | Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report, Heat Map |
| Smart by Camera | Total 16-ch |
| Alarm | |
| General Alarm | Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection |
| Alert Alarm | IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal |
| External Interface | |
| Network Interface | 2 × RJ45 10/100/1000 Mbps self-adaptive |
| USB | Front: 2 × USB 2.0; Rear: 2 × USB 3.0 |
| eSATA | 1 |
| RS232 | 1 |
| RS485 | 1 |
| Alarm In | 16-ch |
| Alarm Out | 10-ch |
| Power Output | 12 V |
| General | |
| Power Supply | 100 to 240 V AC |
| Power Consumption | ≤ 50 W (without HDD) |
| Working Environment | -10°C to +55°C, humidity ≤ 90% RH (non-condensing) |
| Dimensions (W × D × H) | 442 mm × 448 mm × 93 mm |
| Certification | |
| Certification | CE, FCC, UL, RoHS, WEEE |
| CE | EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035 |
| FCC | Part 15 Subpart B |
What you will need
Up to 64 IP cameras, and a PoE switch to power them, as the recorder has no PoE ports. Use network cable for the runs and add up to eight surveillance hard drives, which are not included. Power is 100 to 240 V AC.
Buying from Zenith Security Co.
We are a supplier, not an installer. We will go through the UNV-NVR508-64E-R with you before you buy — camera count, combined bitrate, RAID level and storage — and depending on your requirements and your area we can recommend a qualified trade installer. We have been operating since 2012 and you can visit our trade counter in Wolverhampton.
How many cameras does the NVR508-64E-R support?
64 IP channels, with 384 Mbps incoming bandwidth.
What RAID levels does it support?
RAID 0, 1, 5, 6 and 10, with HDD hot swap and N+1 hot spare.
Are hard drives included?
No. It has 8 SATA interfaces taking drives of up to 16 TB each, plus one eSATA port.
Does the NVR508-64E-R have PoE ports?
No PoE ports are listed, so use a PoE switch for PoE cameras.
What is the highest recording resolution?
Up to 32 MP, with decoding of two 32 MP streams at 30 fps or eight 4K streams at 30 fps.
Is this a trade-price product?
Yes. Uniview products are supplied at trade prices to approved trade customers, so the price is shown once you are logged in to a trade account. Call 01902 902251 or see our trade customer page to open an account.
How quickly can I get it?
We ship nationally from our multi-million pound warehouse, with orders leaving daily. Orders placed before 2:30pm are normally dispatched for delivery within 1–2 working days to England, Scotland and Wales. You can also collect in store from our trade counter — call first so we can confirm your order is ready. We do not ship to Northern Ireland.
Can I collect or see one before buying?
Yes. Our trade counter is at Unit 3, Park View Centre, 243 Dudley Road, Wolverhampton WV2 3JU. Call first so we can confirm the item is there for you.
Questions on specification or compatibility: call 01902 902251, see our FAQ and support pages, or contact us. Trade accounts are available — see trade customers. Browse the full Uniview range.
| Product Code | UNV-NVR508-64E-R |
|---|---|
| Manufacturer | Uniview |
| Colour | Black |
| Max No. of Channels | 64 ch |
