UNV-OEU-201S-HMK-W — 2MP Villa Door Station with Card Reader, PoE and WiFi

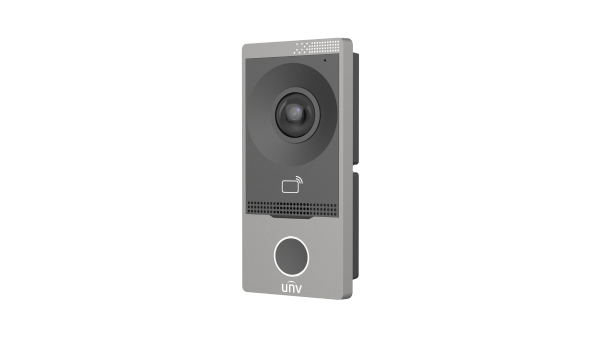

The Uniview OEU-201S-HMK-W is a 2MP single-button villa door station for flush wall mounting, with adaptive infrared, a 13.56 MHz card reader and WiFi as well as a wired network port.

What the UNV-OEU-201S-HMK-W is for

It is the outdoor call point for a house or small building on a Uniview IP video intercom system. It holds up to 10,000 cards and links up to 20 indoor stations.

The camera has a 124.3° horizontal field of view and DWDR. It is rated IP65 and IK08, with an operating range of -30°C to +60°C; Uniview notes waterproof glue should be applied to the gap between the unit and the wall.

Key features

• 2MP camera, 124.3° horizontal field of view, DWDR
• Adaptive IR supplementary light
• 1 call button, 13.56 MHz card reader, 10,000 cards
• Links up to 20 indoor stations
• PoE (802.3af) or 12 V DC, wired network or WiFi
• 2 door lock interfaces, 4 IO inputs, RS485; IP65, IK08

Full specification

What you will need

Power it from an IEEE 802.3af PoE switch or a 12 V DC supply (DC12V ±25%), and run network cable to it. You will also need Uniview indoor stations to answer calls, and a lock if you want door release.

Buying from Zenith Security Co.

We are a supplier, not an installer. We will go through the UNV-OEU-201S-HMK-W with you before you buy — PoE or WiFi connection, flush mounting, and linking indoor stations — and depending on your requirements and your area we can recommend a qualified trade installer. We have been operating since 2012 and you can visit our trade counter in Wolverhampton.

Is the OEU-201S-HMK-W PoE?

Yes, IEEE 802.3af PoE or DC 12 V ±25%. Power consumption is under 10 W.

Does it read access cards?

It has a 13.56 MHz card reader with capacity for 10,000 cards.

How many indoor stations can it link to?

Up to 20.

Is it weatherproof?

It is rated IP65 and IK08 for outdoor use, -30°C to +60°C. Uniview advises sealing the gap to the wall with waterproof glue.

Is this a trade-price product?

Yes. Uniview products are supplied at trade prices to approved trade customers, so the price is shown once you are logged in to a trade account. Call 01902 902251 or see our trade customer page to open an account.

How quickly can I get it?

We ship nationally from our multi-million pound warehouse, with orders leaving daily. Orders placed before 2:30pm are normally dispatched for delivery within 1–2 working days to England, Scotland and Wales. You can also collect in store from our trade counter — call first so we can confirm your order is ready. We do not ship to Northern Ireland.

Can I collect or see one before buying?

Yes. Our trade counter is at Unit 3, Park View Centre, 243 Dudley Road, Wolverhampton WV2 3JU. Call first so we can confirm the item is there for you.

Questions on specification or compatibility: call 01902 902251, see our FAQ and support pages, or contact us. Trade accounts are available — see trade customers. Browse the full Uniview range.
