UNIVIEW - UNV-OEU-202S-HMK2 - 2-Button Villa Door Station with Card Reader, PoE

UNV-OEU-202S-HMK2 — 2-Button Villa Door Station with Card Reader, PoE

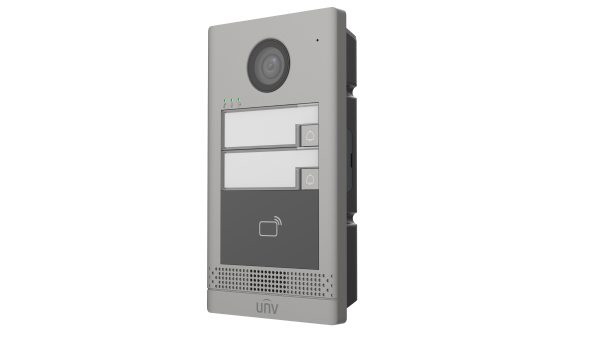

The Uniview OEU-202S-HMK2 is a 2-button villa door station with adaptive IR, a 13.56 MHz card reader and PoE, for wall mounting outdoors.

What the UNV-OEU-202S-HMK2 is for

Each of the 2 call buttons can call a different household, so it suits a small multi-occupancy building on a Uniview IP video intercom system. It holds up to 10,000 cards and connects up to 40 indoor stations.

The camera has a 106.9° horizontal field of view and DWDR. It is rated IP65 and IK08 and works from -40°C to 60°C; Uniview advises applying waterproof glue to the gap between the unit and the wall.

Key features

• 2 call buttons
• 13.56 MHz card reader, 10,000 cards
• Up to 40 connected indoor stations
• 106.9° horizontal field of view, DWDR, adaptive IR
• PoE (802.3af, 6.48 W) or 12 V DC (5.35 W)
• Wiegand, RS485, 4 IO inputs, 2 door locks, tamper; IP65, IK08

Full specification

What you will need

Power it from an IEEE 802.3af PoE switch or a 12 V DC supply (DC12V ±25%), and run network cable to it. You will also need Uniview indoor stations to answer calls, and a lock if you want door release.

Buying from Zenith Security Co.

We are a supplier, not an installer. We will go through the UNV-OEU-202S-HMK2 with you before you buy — button count, indoor stations and lock wiring — and depending on your requirements and your area we can recommend a qualified trade installer. We have been operating since 2012 and you can visit our trade counter in Wolverhampton.

How many call buttons does the OEU-202S-HMK2 have?

2.

How many indoor stations can the OEU-202S-HMK2 connect?

Up to 40.

Is the OEU-202S-HMK2 PoE?

Yes, IEEE 802.3af PoE (6.48 W) or DC 12 V ±25% (5.35 W).

Can it release a door lock?

It has two door lock interfaces supporting an electric lock or door magnet, and a 12 V / 0.25 A power output.
