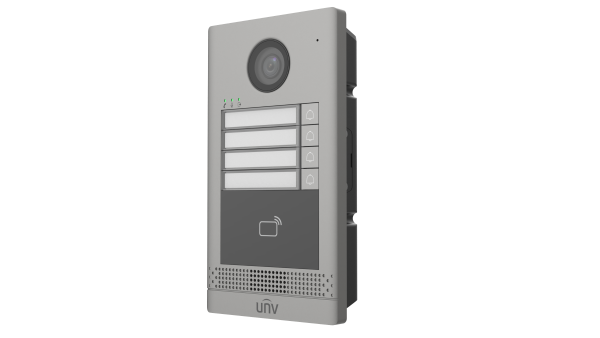

UNIVIEW - UNV-OEU-202S-HMK4 - 4-Button Villa Door Station with Card Reader, PoE

UNV-OEU-202S-HMK4 — 4-Button Villa Door Station with Card Reader, PoE

The Uniview OEU-202S-HMK4 is a 4-button villa door station with adaptive IR, a 13.56 MHz card reader and PoE, for wall mounting outdoors.

What the UNV-OEU-202S-HMK4 is for

Each of the 4 call buttons can call a different household, so it suits a small multi-occupancy building on a Uniview IP video intercom system. It holds up to 10,000 cards and connects up to 80 indoor stations.

The camera has a 106.9° horizontal field of view and DWDR. It is rated IP65 and IK08 and works from -40°C to 60°C; Uniview advises applying waterproof glue to the gap between the unit and the wall.

Key features

• 4 call buttons
• 13.56 MHz card reader, 10,000 cards
• Up to 80 connected indoor stations
• 106.9° horizontal field of view, DWDR, adaptive IR
• PoE (802.3af, 6.48 W) or 12 V DC (5.35 W)
• Wiegand, RS485, 4 IO inputs, 2 door locks, tamper; IP65, IK08

Full specification

What you will need

Power it from an IEEE 802.3af PoE switch or a 12 V DC supply (DC12V ±25%), and run network cable to it. You will also need Uniview indoor stations to answer calls, and a lock if you want door release.

Buying from Zenith Security Co.

We are a supplier, not an installer. We will go through the UNV-OEU-202S-HMK4 with you before you buy — button count, indoor stations and lock wiring — and depending on your requirements and your area we can recommend a qualified trade installer. We have been operating since 2012 and you can visit our trade counter in Wolverhampton.

How many call buttons does the OEU-202S-HMK4 have?

4.

How many indoor stations can the OEU-202S-HMK4 connect?

Up to 80.

Is the OEU-202S-HMK4 PoE?

Yes, IEEE 802.3af PoE (6.48 W) or DC 12 V ±25% (5.35 W).

Can it release a door lock?

It has two door lock interfaces supporting an electric lock or door magnet, and a 12 V / 0.25 A power output.

Is this a trade-price product?

Yes. Uniview products are supplied at trade prices to approved trade customers, so the price is shown once you are logged in to a trade account. Call 01902 902251 or see our trade customer page to open an account.

How quickly can I get it?

We ship nationally from our multi-million pound warehouse, with orders leaving daily. Orders placed before 2:30pm are normally dispatched for delivery within 1–2 working days to England, Scotland and Wales. You can also collect in store from our trade counter — call first so we can confirm your order is ready. We do not ship to Northern Ireland.

Can I collect or see one before buying?

Yes. Our trade counter is at Unit 3, Park View Centre, 243 Dudley Road, Wolverhampton WV2 3JU. Call first so we can confirm the item is there for you.

Questions on specification or compatibility: call 01902 902251, see our FAQ and support pages, or contact us. Trade accounts are available — see trade customers. Browse the full Uniview range.
