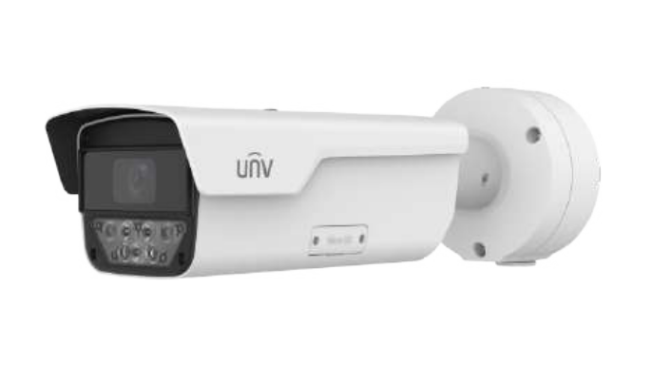

UNIVIEW - UNV-PKC2641-Z80-IR-P - 4MP LPR Bullet Camera with 8 to 32mm Lens, PoE and IR

UNV-PKC2641-Z80-IR-P — 4MP LPR Bullet Camera with 8 to 32mm Lens, PoE and IR

The PKC2641-Z80-IR-P is a Uniview 4MP licence plate recognition (ANPR) bullet camera with an 8 to 32mm focal length and a built-in infrared illumination module. It has relay outputs and barrier opening policies.

What the UNV-PKC2641-Z80-IR-P is for

Uniview lists this model for regular roads with vehicles up to 80 km/h. The 8 to 32mm lens gives a horizontal field of view of 42° to 15.5°. Plates with numbers and letters are recognised by default, and allowlists and blocklists hold 20,000 items each.

Illumination is 5 IR LEDs with a 50 m distance and automatic on/off control, so plates are lit without visible light. Minimum illumination is 0.002 lux (F1.7), WDR is 120 dB, and the housing is rated IP67 and IK10.

Key features

• 4MP 1/1.8-inch CMOS sensor, 2688 × 1520 at up to 60 fps
• 8 to 32mm focal length, horizontal field of view 42° to 15.5°
• Built-in illumination of 5 IR LEDs, 50 m distance, automatic
• Listed for regular roads with vehicles up to 80 km/h
• Allowlist and blocklist, 20,000 items each, with 2 relay outputs
• IP67 and IK10, NDAA compliant, PoE+ (802.3at, class 4)

Full specification

What you will need

Power needs PoE+ (IEEE 802.3at, class 4) from a PoE switch or injector, or a 12 V DC supply; maximum consumption is 20 W. A 3-axis bracket and a junction box for the tail cable are listed with the camera. Add network cable and an NVR or a microSD card up to 512 GB for storage.

Buying from Zenith Security Co.

We are a supplier, not an installer. We will go through the UNV-PKC2641-Z80-IR-P with you before you buy — the 8 to 32mm view for your lane, PoE+ power, barrier wiring and plate data use — and depending on your requirements and your area we can recommend a qualified trade installer. We have been operating since 2012 and you can visit our trade counter in Wolverhampton.

What speed is the PKC2641-Z80-IR-P listed for?

Uniview lists it for regular roads with vehicles up to 80 km/h, using the 8 to 32mm focal length.

What light does the PKC2641-Z80-IR-P use at night?

5 IR LEDs with a 50 m illumination distance and automatic on/off control.

How does it differ from the PKC2641-Z80-P?

The lens and camera are the same; the Z80-P uses 5 warm light LEDs, while this IR model uses 5 infrared LEDs.

How is the PKC2641-Z80-IR-P powered?

PoE (IEEE 802.3at, class 4) or 12 V DC, with maximum power consumption of 20 W.
