UNIVIEW - UNV-TIC2A32SA-F7-4F6AC-I1 - Thermal and 4MP Optical Bullet Network Camera, 6 mm Optical Lens

UNV-TIC2A32SA-F7-4F6AC-I1 — Thermal and 4MP Optical Bullet Network Camera, 6 mm Optical Lens

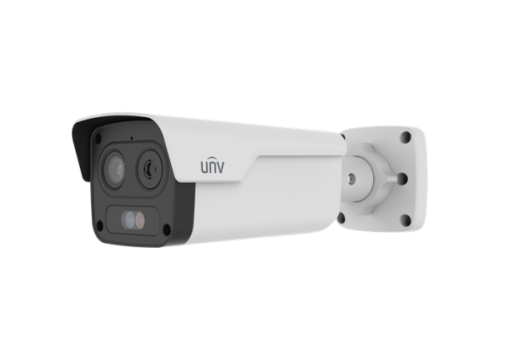

The Uniview TIC2A32SA-F7-4F6AC-I1 is a thermal network bullet camera with a 4MP optical channel and a 6 mm optical lens, powered by PoE.

What the UNV-TIC2A32SA-F7-4F6AC-I1 is for

The TIC2A32SA-F7-4F6AC-I1 pairs a thermal channel with a 4MP optical channel in a bullet housing. The figures Uniview publishes are for the optical channel: a 6 mm lens with a 53.8° horizontal view, IR to 50 m, and DORI distances of 135.0 m to detect and 13.5 m to identify.

Uniview lists Smart Intrusion Prevention, smoke and fire detection and temperature measurement selectable between -20°C to 150°C and 100°C to 550°C, accuracy ±8 °C or ±8% (whichever is greater). It is rated IP67, -40°C to 70°C. Thermal resolution is not given in the specification we hold, so ask us before relying on it.

Key features

• Thermal network bullet camera with a 4MP optical channel
• Temperature measurement: selectable between -20 °C to 150 °C and 100 °C to 550 °C, accuracy ±8 °C or ±8% (whichever is greater)
• Optical lens 6 mm, 53.8° horizontal field of view
• IR to 50 m (750 nm)
• DORI detect 135.0 m, identify 13.5 m (optical)
• Smart Intrusion Prevention and smoke and fire detection
• PoE (802.3af) or 12 V DC, max 12 W; IP67; -40°C to 70°C

Full specification

What you will need

Supply PoE (IEEE 802.3af) from a PoE switch or an NVR's PoE ports, or 12 V DC through the Ø5.5 mm plug; maximum draw is 12 W. Use network cable for the run. For recording, add a compatible NVR or a microSD card of up to 512 GB. Neither is supplied.

Buying from Zenith Security Co.

We are a supplier, not an installer. We will go through the UNV-TIC2A32SA-F7-4F6AC-I1 with you before you buy — the 6 mm optical lens, detection distances, and how to power and record from it — and depending on your requirements and your area we can recommend a qualified trade installer. We have been operating since 2012 and you can visit our trade counter in Wolverhampton.

What lens does the TIC2A32SA-F7-4F6AC-I1 have?

The optical channel has a 6 mm lens with a 53.8° horizontal field of view. Thermal lens details are not in the specification we hold.

How far can the TIC2A32SA-F7-4F6AC-I1 see?

Uniview's optical DORI figures are 135.0 m to detect and 13.5 m to identify. IR reaches 50 m.

Can the TIC2A32SA-F7-4F6AC-I1 measure temperature?

Yes. Uniview lists a selectable range of -20°C to 150°C or 100°C to 550°C, with accuracy ±8 °C or ±8% (whichever is greater).

Is the TIC2A32SA-F7-4F6AC-I1 PoE?

Yes, IEEE 802.3af PoE or DC 12 V ±25%, maximum 12 W.

Is the TIC2A32SA-F7-4F6AC-I1 suitable for outdoor use?

Yes, it is rated IP67 with a working range of -40°C to 70°C.

Is this a trade-price product?

Yes. Uniview products are supplied at trade prices to approved trade customers, so the price is shown once you are logged in to a trade account. Call 01902 902251 or see our trade customer page to open an account.

How quickly can I get it?

We ship nationally from our multi-million pound warehouse, with orders leaving daily. Orders placed before 2:30pm are normally dispatched for delivery within 1–2 working days to England, Scotland and Wales. You can also collect in store from our trade counter — call first so we can confirm your order is ready. We do not ship to Northern Ireland.

Can I collect or see one before buying?

Yes. Our trade counter is at Unit 3, Park View Centre, 243 Dudley Road, Wolverhampton WV2 3JU. Call first so we can confirm the item is there for you.

Questions on specification or compatibility: call 01902 902251, see our FAQ and support pages, or contact us. Trade accounts are available — see trade customers. Browse the full Uniview range.
