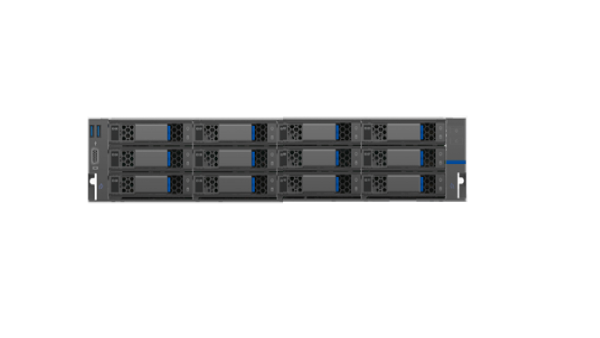

UNIVIEW - VS-R5320-B1H-N-IN - Computation Server, Intel Xeon 4310, 32GB RAM, 12 Drive Bays
Product Features
The Uniview VS-R5320-B1H-N-IN is a computation server with an Intel Xeon 4310, 32GB RAM, a 4TB SATA drive fitted and 12 front drive bays. It has 1+1 redundant power; the RAID controller is sold separately.
VS-R5320-B1H-N-IN — Computation Server, Intel Xeon 4310, 32GB RAM, 12 Drive Bays
The Uniview VS-R5320-B1H-N-IN is a computation server fitted with one Intel Xeon 4310 processor and 32GB of RAM, with support for two 3rd-generation Intel Xeon Scalable processors and 12 front drive bays.
What the VS-R5320-B1H-N-IN is for
Uniview lists it under its computation server range. It ships with one 4TB SATA hard drive and has 16 memory slots, 3 PCI-E 4.0 slots and 1+1 redundant power supplies. A RAID controller is listed as sold separately.
It measures 87.8 mm (H) x 446 mm (W) x 794 mm (D) and weighs 35 kg fully loaded, so check your rack depth and load rating before ordering. Operating temperature is 5 to 40 degrees C.
Key features
- Intel Xeon 4310 fitted; supports 2 x 3rd-generation Intel Xeon Scalable processors
- 32GB RAM, 16 memory slots in total
- 4TB SATA HDD fitted; 12 front bays for 2.5/3.5-inch SAS/SATA/SSD drives
- 2 x GE network ports plus 1 x 1000Mbps IPMI management port
- 3 x PCI-E 4.0 slots; RAID controller sold separately
- 1+1 redundant power supply
Full specification
| Hardware Parameters | |
| CPU | Intel_4310_Xeon*1, support 2* 3rd-generation Intel® Xeon® Scalable processors |
| RAM | 32GB, total 16 slots |
| Standard HDD | 4T SATA HDD*1 |
| Front HDD expansion | 12*2.5/3.5-inch SAS/SATA/SSD HDDs |
| Network interface | GE*2, supports PCIe network interface expansion |
| Management | 1*1000Mbps network interface dedicated for IPMI remote management |
| USB | 2*USB 3.0 (rear) |
| VGA | 1* VGA interface (rear) |
| PCIE card slots | 3*PCI-E 4.0 slots |
| Built-in RAID controller | 1 (sold separately) |
| Power supply | 1+1 redundancy |
| Dimensions | 87.8mm(H)x446mm(W)x794mm(D) |
| Weight | 35KG (fully loaded) |
| Environment temperature | Operating: 5°C to 40°C Non-operating: -40°C to 60°C |
| Relative humidity | Operating: 35% to 80% Non-operating: 20% to 93% |
What you will need
You need a server rack deep enough for the 794 mm chassis, network cable for the two GE ports and the IPMI management port, and extra surveillance hard drives if you want to fill the 12 front bays. The RAID controller is sold separately. Talk to us about the software and camera load you plan to run on it.
Buying from Zenith Security Co.
We are a supplier, not an installer. We will go through the VS-R5320-B1H-N-IN with you before you buy — the processor and memory fitted, drive expansion and the RAID controller, and what you plan to run on it — and depending on your requirements and your area we can recommend a qualified trade installer. We have been operating since 2012 and you can visit our trade counter in Wolverhampton.
What processor does the VS-R5320-B1H-N-IN have?
One Intel Xeon 4310 is fitted, and the server supports two 3rd-generation Intel Xeon Scalable processors.
How many drives does the VS-R5320-B1H-N-IN take?
It has 12 front bays for 2.5/3.5-inch SAS, SATA or SSD drives, and ships with one 4TB SATA drive.
Is a RAID controller included?
No. Uniview lists one built-in RAID controller position, sold separately.
How big is the VS-R5320-B1H-N-IN?
It measures 87.8 mm (H) x 446 mm (W) x 794 mm (D) and weighs 35 kg fully loaded.
Is this a trade-price product?
Yes. Uniview products are supplied at trade prices to approved trade customers, so the price is shown once you are logged in to a trade account. Call 01902 902251 or see our trade customer page to open an account.
How quickly can I get it?
We ship nationally from our multi-million pound warehouse, with orders leaving daily. Orders placed before 2:30pm are normally dispatched for delivery within 1–2 working days to England, Scotland and Wales. You can also collect in store from our trade counter — call first so we can confirm your order is ready. We do not ship to Northern Ireland.
Can I collect or see one before buying?
Yes. Our trade counter is at Unit 3, Park View Centre, 243 Dudley Road, Wolverhampton WV2 3JU. Call first so we can confirm the item is there for you.
Questions on specification or compatibility: call 01902 902251, see our FAQ and support pages, or contact us. Trade accounts are available — see trade customers. Browse the full Uniview range.
| Product Code | VS-R5320-B1H-N-IN |
|---|---|
| Manufacturer | Uniview |
| Colour | White |
