Yealink WMB-T53/T53W/T54W - Wall Mount Bracket for Yealink T53, T53W and T54W IP Phones
Product Features
The Yealink WMB-T53/T53W/T54W is a wall mount bracket for the Yealink SIP-T53, SIP-T53W and SIP-T54W IP phones, which Yealink sells separately from the phone. It slots onto the back of the phone and fixes to the wall at three screw positions. Check before ordering that you have screws and wall anchors, as these are not in the package.
Yealink WMB-T53/T53W/T54W - Wall Mount Bracket for Yealink T53, T53W and T54W IP Phones
The Yealink WMB-T53/T53W/T54W is a wall mount bracket for turning a Yealink SIP-T53, SIP-T53W or SIP-T54W IP phone from a desk phone into a wall-mounted VoIP phone. It is sold on its own, because the bracket is not included with the phone.
What the WMB-T53/T53W/T54W is for
Yealink's wall mount guide says wall mounting is available for the SIP-T53, SIP-T53W and SIP-T54W IP phones, and that the bracket is required for a wall-mount installation. It suits places where desk space is limited, such as a reception area, workshop, corridor or kitchen, where an IP phone can sit on a wall instead of a desk.
Key features
- Wall mount bracket for the Yealink SIP-T53, SIP-T53W and SIP-T54W IP phones, as listed in Yealink's guide

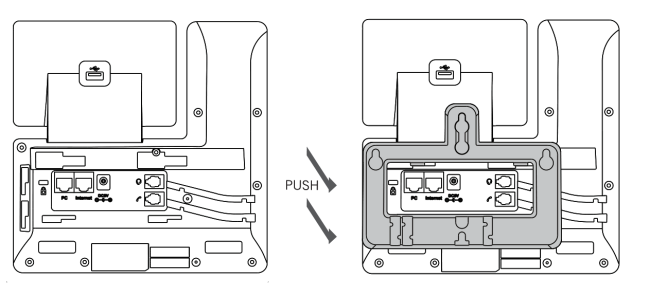

- Attaches by inserting the tabs on the bracket into the slots on the back of the phone, then sliding the bracket to the right
- Three screw positions for fixing to the wall; Yealink supplies a drilling template in its guide
- Package contents per Yealink: the wall mount bracket and a quick installation guide
- Wall anchors, screws and tools are not in the package
Full specification
| Product | |
| Brand | Yealink |
| Type | Wall mount bracket for IP phones |
| Manufacturer part number (MPN) | WMB-T53/T53W/T54W |
| Phones listed by Yealink | SIP-T53, SIP-T53W, SIP-T54W |
| Mounting | |
| Fixing to phone | Tabs on the bracket slot into the back of the phone, then the bracket slides to the right |
| Wall screw positions | 3 |
| Upper screw spacing (template) | 147.90 mm |
| Vertical spacing, upper to lower screw (template) | 70.11 mm |
| Lower screw offset (template) | 81.76 mm |
| Hookswitch tab | Must be set to the wall mount position (rotated 180 degrees) before wall mounting |
| In the package | |
| Included | Wall mount bracket, quick installation guide |
| Not included | Wall anchors, screws and tools; the IP phone |
What you will need
You need a compatible Yealink IP phone (the SIP-T53, SIP-T53W or SIP-T54W, as named in Yealink's guide), screws and wall anchors suited to your wall, and the tools to fit them. Before mounting, Yealink says to pull out the hookswitch tab in the handset cradle, rotate it 180 degrees and reinsert it so the handset stays on-hook when the phone is vertical. For any other Yealink phone, check the product page or call us before ordering.
Buying from Zenith Security Co.
We are a UK supplier, not an installer, and we will go through the product with you before you buy. Our trade counter is in Wolverhampton, and we have been operating since 2012. See more Yealink products or browse VoIP phone accessories.
Which Yealink phones does this wall mount bracket fit?
Yealink's wall mount guide lists the SIP-T53, SIP-T53W and SIP-T54W IP phones. If you have a different model, call us before ordering.
Is the wall mount bracket supplied with the phone?
No. Yealink states the bracket is not included with the IP phone and is bought separately.
Are screws and wall anchors included?
No. Yealink says wall anchors and tools are not in the package, and the screws for the drilling template are not provided.
How quickly can I get it?
Orders placed before 2:30pm are normally dispatched for delivery within 1–2 working days to England, Scotland and Wales. You can also collect in store from our trade counter - call first so we can confirm your order is ready. We do not ship to Northern Ireland.
Can I collect it from your trade counter?
Yes. Our trade counter is at Unit 3, Park View Centre, 243 Dudley Road, Wolverhampton WV2 3JU. Please call 01902 902251 first so we can confirm your order is ready.
Do you offer trade accounts?
Yes, trade accounts are available. See our trade customer page.
Questions on specification or compatibility: call 01902 902251, see our FAQ and support pages, or contact us.
| Product Code | WMB-T53/T53W/T54W |
|---|---|
| Manufacturer | Yealink |
| Product Type | VoIP phone accessory |
