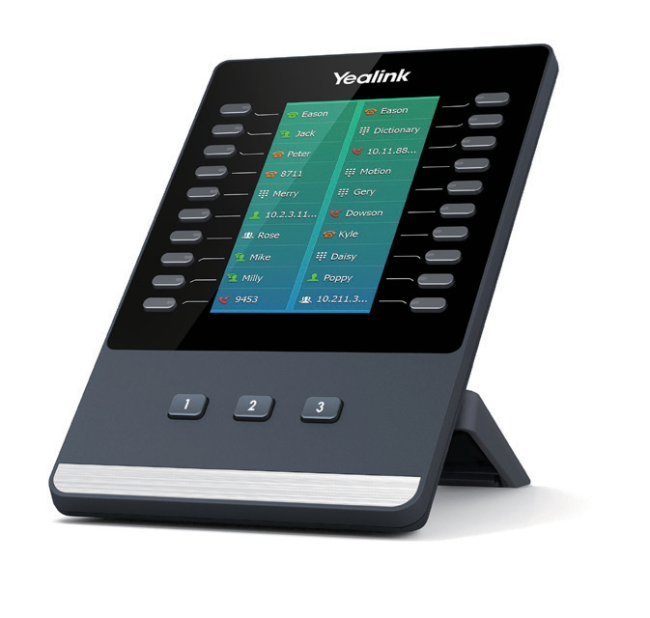

Yealink EXP50 - Colour-screen Expansion Module for Yealink T53, T53W, T54W, T57W and T58A IP Phones
Product Features
The Yealink EXP50 is a colour-screen expansion module with a 4.3-inch display and 20 dual-colour LED keys per page, giving up to 60 programmable keys per module. Up to three can be fitted to a compatible Yealink IP phone. Check before ordering that your phone is one of the T53, T53W, T54W, T57W or T58A models Yealink lists.
EXP50 - Colour-screen Expansion Module for Yealink IP Phones
The Yealink EXP50 is a colour-screen expansion module that adds extra programmable keys to a compatible Yealink IP phone. It has a 4.3-inch display showing 20 keys at a time, with three pages giving up to 60 keys per module. Yealink lists it for the T53, T53W, T54W, T57W and T58A.
What the EXP50 is for
On a busy VoIP desk, the keys on the phone itself soon run out. The EXP50 adds more, which you can set up as BLF, speed dial, call forward, transfer, call park, call pickup and similar functions. Yealink positions it for receptionists, administrative assistants and contact centre staff who need to watch colleagues' lines and handle many calls. Each key has a dual-colour LED, and the colour screen shows icons for each function.
Key features
- 4.3-inch, 272 x 480-pixel colour display with backlight
- 20 physical keys per page, each with a dual-colour LED
- Three page views for up to 60 programmable keys per module
- Three control keys with illuminated LED for quick page switching
- Up to three modules per phone, adding up to 180 keys
- Stand with two adjustable angles
- Connects to the phone by the supplied USB cable
- Second USB 2.0 port for functions such as a USB headset or USB call recording
- Wallpaper, screensaver and power saving settings
Full specification
| General | |
| Brand | Yealink |
| Model | EXP50 |
| Manufacturer part number (MPN) | EXP50 |
| Type | Colour-screen expansion module |
| Applies to | Yealink T53, T53W, T54W, T57W and T58A IP phones |
| Display | |
| Screen | 4.3-inch, 272 x 480-pixel colour display with backlight |
| Colour depth | 16 bit |
| Page views | Three |
| Keys and indicators | |
| Physical keys | 20 per page, each with a dual-colour LED |
| Additional keys via page switch | 40 |
| Programmable keys per module | Up to 60 across three pages |
| Control keys | 3 independent keys with illuminated LED for quick page switching |
| Key functions (examples) | Shared line, BLF list, call park, conference, forward, group pickup, group listening, LDAP, XML browser |
| Expansion and connectivity | |
| Modules per phone | Up to three EXP50 modules (up to 180 additional keys) |
| Connection to phone | USB cable (supplied) |
| USB port | USB 2.0 compliant port for data in and out |
| Second USB port | USB 2.0 compliant, for a wired or wireless USB headset, Wi-Fi through WF40/WF50 on the T53, or USB call recording to a flash drive |
| Power | An external Yealink power adapter (5V/2A) is required when two or three modules are used; maximum power consumption (PSU) 1.5W |
| Features | |
| Display extras | Wallpaper, screensaver and power saving |
| Stand | Two adjustable angles |
| Physical and environment | |
| Dimensions (W x D x H x T) | 196.5 x 124.0 x 137.5 x 42.6 mm |
| Operating temperature | -10 to 50 °C (14 to 122 °F) |
| Operating humidity | 10 to 95% |
| Package | |
| Package contents | EXP50 colour-screen expansion module, stand, connecting sheet, USB cable, screwdriver, screws, quick start guide |
| Giftbox size | 212 x 148 x 90 mm |
| Quantity per carton | 10 pieces |
| Carton weight (net / gross) | 6.0 kg / 6.598 kg |
What you will need
You will need one of the Yealink IP phones the manufacturer lists for the EXP50: T53, T53W, T54W, T57W or T58A. If you fit two or three modules, Yealink says an external Yealink power adapter (5V/2A) is required; this is bought separately. The box includes the stand, connecting sheet, USB cable, screwdriver and screws. For any other phone model, check the product page or call us before ordering.
Buying from Zenith Security Co.
We are a UK supplier, not an installer, and we will go through the product with you before you buy. Our trade counter is in Wolverhampton and we have been operating since 2012. Browse more Yealink products or the VoIP phone accessories range.
Which phones does the EXP50 work with?
Yealink lists the EXP50 for the T53, T53W, T54W, T57W and T58A IP phones. For any other model, call us on 01902 902251 before ordering.
How many EXP50 modules can I fit to one phone?
Up to three, according to Yealink, which adds up to 180 extra keys. With two or three modules an external Yealink 5V/2A power adapter is required.
How quickly can I get it?
Orders placed before 2:30pm are normally dispatched for delivery within 1–2 working days to England, Scotland and Wales. You can also collect in store from our trade counter - call first so we can confirm your order is ready. We do not ship to Northern Ireland.
Can I collect it from your trade counter?
Yes. Our trade counter is at Unit 3, Park View Centre, 243 Dudley Road, Wolverhampton WV2 3JU. Please call 01902 902251 first so we can confirm your order is ready.
Do you offer trade accounts?
Yes, trade accounts are available. See our trade customer page for details.
Questions on specification or compatibility: call 01902 902251, see our FAQ and support pages, or contact us.
| Product Code | EXP50 |
|---|---|
| Manufacturer | Yealink |
| Product Type | VoIP phone accessory |
