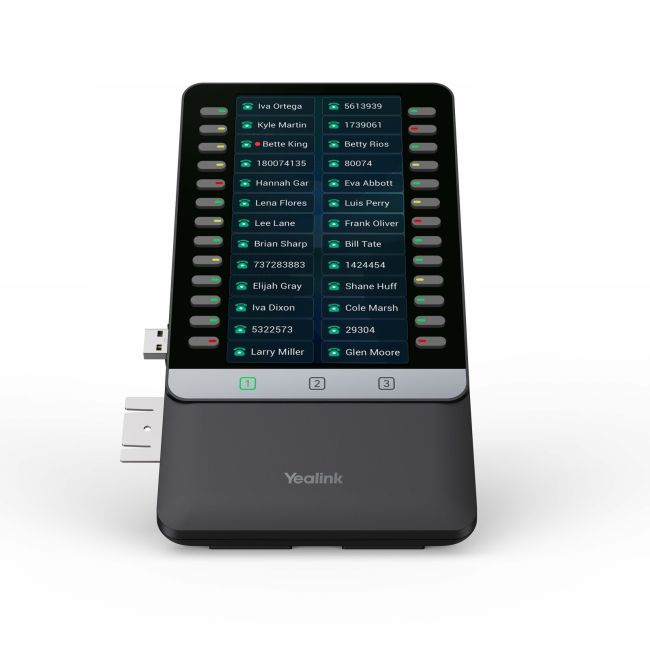

Yealink EXP55 - Colour Expansion Module for Yealink T7 and T8 Series IP Phones, 5.5 Inch Display
Product Features
The Yealink EXP55 is a colour expansion module with a 5.5-inch display and 26 keys per page across three pages, giving up to 78 programmable features for BLF, speed dial, call park and more. Up to three modules can be attached to one Yealink IP phone. Yealink lists it for T7X/T8X phones, so check the product page or call us to confirm your phone model before ordering.
Yealink EXP55 - Colour Expansion Module for Yealink T7 and T8 Series IP Phones
The Yealink EXP55 is a colour-screen expansion module that adds extra programmable keys to a Yealink IP phone. It has a 5.5-inch 480 x 960-pixel display, 26 physical keys on each page and three pages, so one module gives up to 78 programmable features. Yealink lists it as applying to its T7X and T8X IP phones.
What the EXP55 is for
On a busy desk phone, line keys run out quickly. The EXP55 gives you more keys that can be set as BLF, speed dial, call forward, transfer, call park, call pickup and other features, so you can monitor colleagues and handle a high volume of calls without scrolling through menus. Yealink describes it as suited to receptionists, administrative assistants and contact centre staff. Up to three modules can be attached to one phone, which adds up to 234 additional buttons.
Key features
- 5.5-inch 480 x 960-pixel colour display with backlight and colour icons
- 26 physical keys per page, each with a dual-colour LED
- Three pages, with three independent illuminated control keys for switching between them (up to 78 programmable features per module)
- Up to three modules daisy chained on one phone (234 additional buttons at most)
- Stand with two adjustable angles
- Wallpaper, screensaver and power saving options
- Remaining USB 2.0 port on the module can be used for extended phone functions, for example USB call recording to a flash drive
Full specification
| General | |
| Brand | Yealink |
| Model | EXP55 Color Expansion Module |
| Manufacturer part number (MPN) | EXP55 |
| Applies to | Yealink T7X/T8X IP phones |
| Display and keys | |
| Display | 5.5-inch, 480 x 960-pixel colour display with backlight |
| Page views | Three |
| Physical keys | 26, each with a dual-colour LED |
| Additional keys through page switch | 52 |
| Programmable features per module | Up to 78 |
| Page keys | 3 independent control keys with illuminated LED |
| Programmable for | Shared line, BLF list, call park, conference, forward, group pickup, group listening, LDAP, XML browser and more |
| Connectivity and expansion | |
| Modules per phone | Up to three EXP55 (234 additional buttons at most) |
| USB port | USB 2.0 compliant, for data in and out |
| USB port uses | Wired or wireless USB headset; Wi-Fi through WF40/WF50; USB call recording through a USB flash drive |
| Power and physical | |
| External power adapter | For two or three expansion modules, an external Yealink power adapter (5 V/2 A) is required |
| Maximum power consumption (PSU) | 1.5 W |
| Dimensions (W x D x H x T) | 124.0 mm x 137.5 mm x 42.6 mm |
| Stand | Two adjustable angles |
| Operating temperature | -10 to +50 °C (+14 to 122 °F) |
| Storage temperature | -30 to +70 °C (-22 to +158 °F) |
| Operating humidity | 10-95% |
| Package | |
| Package contents | EXP55 Color Expansion Module, stand, screwdriver, screws, quick start guide |
| Giftbox size | 212 mm x 148 mm x 90 mm |
| Carton quantity and gross weight | 10 pieces per carton, 6.4 kg gross per carton |
What you will need
You need a Yealink IP phone from the T7X or T8X range, which is what Yealink lists the EXP55 as applying to. Yealink states that an external Yealink power adapter (5 V/2 A) is required when two or three expansion modules are used. For a specific phone model, check the product page or call us before ordering and we will go through it with you.
Buying from Zenith Security Co.
Zenith Security Co is a UK supplier, not an installer, and has been operating since 2012. We will go through the product with you before you buy. See the full Yealink range and our VoIP phone accessories. Our trade counter is in Wolverhampton.
Which phones does the EXP55 work with?
Yealink lists the EXP55 as applying to its T7X and T8X IP phones. For a particular model, check the product page or call 01902 902251 and we will go through it with you.
How many EXP55 modules can I attach to one phone?
Up to three, which adds up to 234 additional buttons. Yealink states that an external Yealink power adapter (5 V/2 A) is required for two or three modules.
How quickly can I get it?
Orders placed before 2:30pm are normally dispatched for delivery within 1–2 working days to England, Scotland and Wales. You can also collect in store from our trade counter - call first so we can confirm your order is ready. We do not ship to Northern Ireland.
Can I collect it from your trade counter?
Yes. Our trade counter is at Unit 3, Park View Centre, 243 Dudley Road, Wolverhampton WV2 3JU. Please call 01902 902251 first so we can confirm your order is ready.
Do you offer trade accounts?
Trade accounts are available. See our trade customer page for details.
Questions on specification or compatibility: call 01902 902251, see our FAQ and support pages, or contact us.
