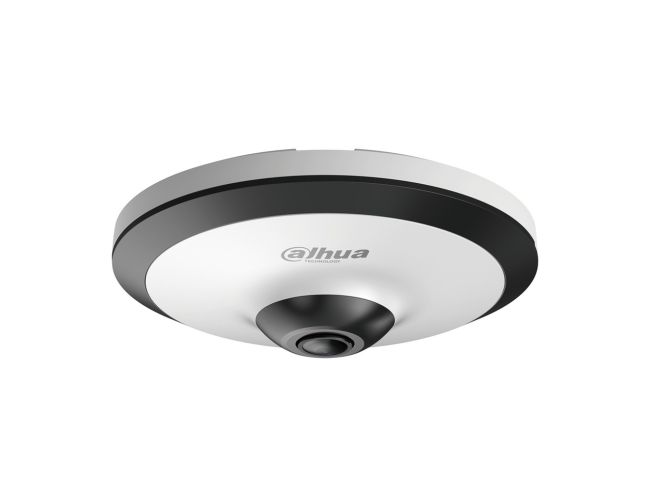

Dahua DH-HAC-EW2501P - 5MP HDCVI Infrared Fisheye CCTV Camera, 1.4mm 180 Degree View, 120dB WDR, Built-in Mic, Indoor
Product Features
- Dahua DH-HAC-EW2501P is a 5MP (2592 × 1944) HDCVI fisheye CCTV camera.
- 1.4mm lens with a 180° view.
- IR night vision up to 10m.
- 120dB WDR; built-in microphone.
- Indoor use (no IP rating), 12V DC.
Dahua DH-HAC-EW2501P — 5MP HDCVI IR Fisheye Camera
The Dahua DH-HAC-EW2501P (also written HAC-EW2501P or HAC-EW2501) is a 5MP HDCVI fisheye camera from Dahua's panorama series. A 1.4mm lens gives a 180° view, so one camera can cover a whole room from the ceiling. It has 120dB WDR, IR up to 10m and a built-in microphone. Dahua lists no IP or IK rating, so it is for indoor use.
Key features
- 5MP (2592 × 1944) 1/2.8" CMOS; 20 fps at 5MP, 25/30 fps at 4MP.
- 1.4 mm fixed lens, F2.0, 180° horizontal and vertical.
- 0.005 lux colour at F2.0; IR up to 10 m from 3 IR LEDs.
- 120dB WDR, BLC, HLC, 2D/3D NR.
- Built-in microphone.
- Slim Ø126.2 × 40.6 mm aluminium and plastic housing; 12V DC.
Technical specification
| Model | DH-HAC-EW2501P (PAL version of the datasheet model HAC-EW2501) |
|---|---|
| Image sensor | 1/2.8" 5MP CMOS, progressive |
| Max. resolution | 5MP, 2592 × 1944 |
| Frame rate | 20 fps @ 5MP; 25/30 fps @ 4MP |
| Video output | 1-channel BNC HD video output |
| Min. illumination | 0.005 lux at F2.0 (colour, 30IRE); 0 lux IR on |
| S/N ratio | More than 65 dB |
| Lens | 1.4 mm fixed, fixed iris, F2.0 |
| Field of view | H: 180°; V: 180° |
| IR | Up to 10 m, 3 IR LEDs |
| Day/night | Auto (electronic) / manual |
| Image functions | 120dB WDR, BLC, HLC, AGC, 2D/3D NR |
| Audio | Built-in mic |
| Power | DC12V ±30%; 7.3 W (IR on) |
| Operating temperature | -30 °C to +60 °C; less than 95% RH |
| Protection | N/A (indoor) |
| Casing | Aluminium and plastic |
| Dimensions | Ø126.2 mm × 40.6 mm |
| Weight | 0.24 kg net; 0.42 kg gross |
| Certifications | CE, FCC, UL |
Works with
- An HDCVI recorder supporting 5MP input. See our range of DVRs and XVRs.
- A 12V DC power supply.
Common questions
What does HDCVI mean?
HDCVI is Dahua's way of sending HD video over standard coax cable, so an analogue system can be upgraded without rewiring. See our guide to Dahua HDCVI cameras.
What does a fisheye camera see?
Its 1.4 mm lens covers 180° horizontally and vertically, so a ceiling-mounted camera sees the whole room below it.
Can it be used outdoors?
Dahua lists no IP rating for this model, so use it indoors.
Does it have a microphone?
Yes, built-in.
Full manufacturer specification: Dahua product page
Supplied by Zenith Security Co, Wolverhampton. Orders placed before 2:30pm are normally dispatched for delivery within 1-2 working days to England, Scotland and Wales, or collect from our Wolverhampton trade counter (please call first).
Browse the full Dahua range, more HD analogue cameras, or contact us on 01902 902251 or visit our Wolverhampton trade counter for advice.
| Product Code | DH-HAC-EW2501P |
|---|---|
| Manufacturer | Dahua |
| Built-in Mic | Yes |
| Power Supply | 12V DC |
| Product Type | HDCVI Camera |
| Colour | White |
| Max Resolution | 5MP |
| Lens Type | Fixed |
| WDR | 120dB WDR |
| Noise Reduction | 2D/3D NR |
| Video Output | HDCVI |
| Power | DC12V |
| Dimensions | Ø126.2mm x 40.6mm |
