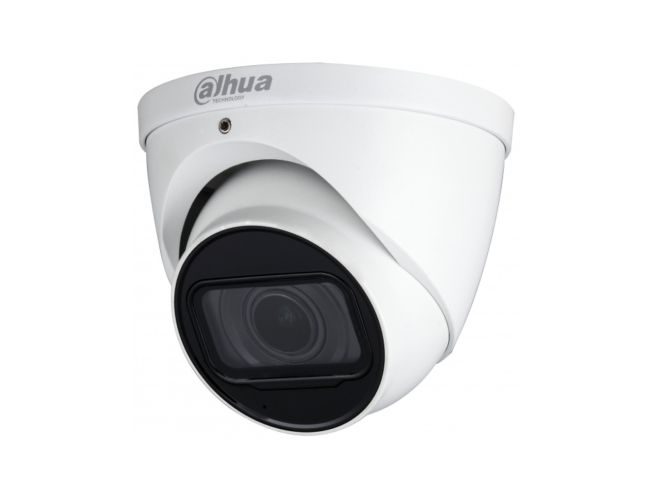

Dahua DH-HAC-HDW1500TMP-A-POC-S2 - 5MP HDCVI PoC Infrared Eyeball Turret CCTV Camera, 60m Night Vision, Built-in Mic, IP67 Waterproof
Product Features
- Dahua DH-HAC-HDW1500TMP-A-POC-S2 is a 5MP (2880 × 1620) HDCVI eyeball turret CCTV camera with a 1/2.7" CMOS sensor.
- PoC: power and CVI video over one coax cable, or 12V DC.
- Smart IR night vision up to 60m from 2 IR LEDs.
- Built-in microphone.
- IP67 metal casing, -40 °C to +60 °C.
Dahua DH-HAC-HDW1500TMP-A-POC-S2 — 5MP HDCVI PoC IR Eyeball Turret CCTV Camera
The Dahua DH-HAC-HDW1500TMP-A-POC-S2 (also written HAC-HDW1500TMP-A-POC-S2 or HAC-HDW1500TM-A-POC) is a 5MP HDCVI eyeball turret camera from Dahua's Lite PoC series. PoC (power over coax) lets the camera take its power and send CVI video over the same coaxial cable, and it can also run on 12V DC. It has a built-in microphone (-A), Smart IR night vision up to 60m and an IP67 metal casing.
Key features
- 5MP (2880 × 1620) from a 1/2.7" CMOS sensor, 5MP at 25 fps over CVI.
- CVI, TVI, AHD and CVBS output from one BNC port.
- PoC (CVI only) or 12V DC ±30%, max 5.2 W.
- Smart IR up to 60m; 0.005 lux at F1.6, 0 lux with IR on.
- Built-in microphone; DWDR, BLC, HLC and 2D NR.
- IP67 metal casing, -40 °C to +60 °C.
Technical specification
| Model | DH-HAC-HDW1500TMP-A-POC-S2 (PAL -S2 version of the datasheet model HAC-HDW1500TM-A-POC) |
|---|---|
| Image sensor | 1/2.7" CMOS, progressive scan |
| Max. resolution | 5MP, 2880 × 1620 |
| Frame rate | CVI: 5M@25 fps, 4M@25 fps (PAL); AHD and TVI: 4M@25 fps (PAL); CVBS: 960H |
| Video output | CVI / TVI / AHD / CVBS by one BNC port |
| Min. illumination | 0.005 lux at F1.6 (30IRE); 0 lux IR on |
| S/N ratio | > 65 dB |
| Lens | Fixed-focal, M12, F1.6; 2.8 mm, 3.6 mm or 6 mm (contact us for a specific lens) |
| Field of view | 2.8 mm: H 111°; 3.6 mm: H 92°; 6 mm: H 57° |
| IR | Up to 60 m, Smart IR, 2 IR LEDs |
| Day/night | Auto (ICR) |
| Image functions | BLC, HLC, DWDR, 2D NR, mirror, privacy masking (8 areas) |
| Audio | One channel built-in mic |
| Power | PoC (CVI only) / 12V DC ±30%; max 5.2 W (12V DC, IR on) |
| Operating temperature | -40 °C to +60 °C; < 95% non-condensing |
| Protection | IP67; metal casing |
| Dimensions | Ø106 mm × 69.0 mm |
| Weight | 0.55 kg net; 0.71 kg gross |
| Certifications | CE, FCC, UL |
Works with
- PoC power needs a PoC-capable Dahua XVR or a PoC transceiver; otherwise use a 12V DC supply. See our range of DVRs and XVRs.
- The Dahua DH-HAC-HDW1500TP-A-POC-0360B-S2 is a related 5MP PoC eyeball camera.
Common questions
What does HDCVI mean?
HDCVI is Dahua's way of sending HD video over standard coax cable, so an analogue system can be upgraded without rewiring. See our guide to Dahua HDCVI cameras.
What is PoC?
Power over coax: the camera is powered through the same coax cable that carries its video. Dahua lists PoC for CVI output only; it can also be powered from 12V DC.
Does it have a microphone?
Yes, one channel built-in mic.
How far can it see at night?
Smart IR reaches up to 60 m, and 0 lux with the IR on.
Which lens does it have?
Dahua lists 2.8 mm, 3.6 mm and 6 mm versions. Contact us for a specific lens.
Full manufacturer specification: Dahua product page
Supplied by Zenith Security Co, Wolverhampton. Orders placed before 2:30pm are normally dispatched for delivery within 1-2 working days to England, Scotland and Wales, or collect from our Wolverhampton trade counter (please call first).
Browse the full Dahua range, more HD analogue cameras, or contact us on 01902 902251 or visit our Wolverhampton trade counter for advice.
| Product Code | DH-HAC-HDW1500TMP-A-POC-S2 |
|---|---|
| Manufacturer | Dahua |
| Built-in Mic | Yes |
| Protection Level | IP67 |
| Power Supply | 12V DC & PoC |
| Product Type | HDCVI Camera |
| Colour | White |
| Max Resolution | 5MP |
| Lens Type | Fixed |
| WDR | DWDR |
| Noise Reduction | 2D NR |
| Video Output | CVI/TVI/AHD/CVBS switchable |
| Protection Level, Ingress Protection | IP67 |
| Power | PoC / 12V DC |
| Dimensions | Ø106mm x 69.0mm |
