Name: Dahua DH-XVR5832S-4KL-I3 - 32 Channel Penta-brid 4K WizSense XVR
Brand: Dahua
SKU: DH-XVR5832S-4KL-I3
Price: 978.6 GBP
Availability: InStock

Dahua DH-XVR5832S-4KL-I3 - 32 Channel Penta-brid 4K WizSense XVR CCTV DVR

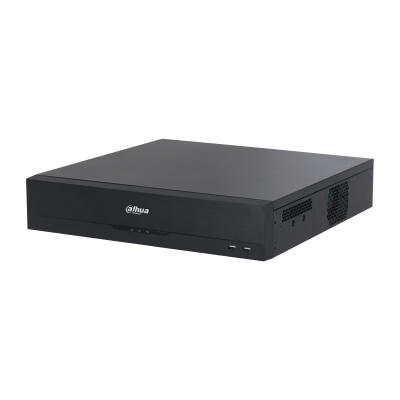

The Dahua DH-XVR5832S-4KL-I3 (Dahua lists it as XVR5832S-4KL-I3) is a 32 channel Penta-brid 4K CCTV recorder and hybrid DVR in a 2U case with 8 HDD bays. Its 32 BNC inputs auto-detect HDCVI, AHD, TVI and CVBS cameras, so it records from analogue CCTV cameras as well as IP cameras, and it takes up to 64 IP channels at up to 12 MP each. Dahua's ordering description is 32CH Penta-brid 4K Value/5MP 2U 8HDDs WizSense Digital Video Recorder.

Also listed as XVR5832S-4KL-I3.

Key features

32 BNC inputs with HDCVI, AHD, TVI and CVBS auto-detect, plus up to 64 IP channels (up to 12 MP each, 256 Mbps incoming bandwidth)
4K HDCVI input (up to 25/30 fps) and 4K HDMI output (HDMI 1 up to 3840 x 2160)
WizSense AI by recorder: 32-channel SMD Plus (64-channel SMD by camera) to filter motion alarms for humans and vehicles
12-channel perimeter protection, 6-channel face recognition and 6-channel QuickPick 2.0 for analogue channels
1-channel Privacy Protection (face masking) and 1-channel EPTZ
32-channel AI Coding and Smart H.265+ to save storage and bandwidth
8 SATA ports, each disk up to 16 TB
16 alarm inputs and 6 alarm outputs (5 relay and 1 x 12 V 1 A)

Technical specification

Model	DH-XVR5832S-4KL-I3
Dahua description	32CH Penta-brid 4K Value/5MP 2U 8HDDs WizSense Digital Video Recorder
Analogue camera input	32 BNC ports, HDCVI/AHD/TVI/CVBS auto-detect
Analogue formats	HDCVI: 4K@25/30 and 12.5/15 fps, 6 MP@20 fps, 5 MP@25/20 fps, 4 MP@25/30 fps, 1080p@25/30 fps, 720p@25/30/50/60 fps. TVI: 4K@15 fps, 5 MP@20 fps, 4 MP and 3 MP@25/30 fps, 1080p and 720p@25/30 fps. AHD: 4K@15 fps, 5 MP@20 fps, 4 MP and 3 MP@25/30 fps, 1080p and 720p@25/30 fps
IP camera input	Up to 64 channels (32 IP channels by default plus 32 converted from analogue channels), up to 12 MP each; incoming, recording and outgoing bandwidth 256 Mbps
Encoding capacity	Encode Enhancement off, main stream: 4K up to 15 fps on channels 1, 9, 17 and 25 (up to 7 fps on the others); 5 MP up to 25 fps on those four channels (up to 12 fps on the others); 4K-N/4 MP/3 MP up to 25/30 fps on those four channels (up to 15 fps on the others)
Video compression	AI Coding; Smart H.265+; H.265; Smart H.264+; H.264
AI by recorder	QuickPick 2.0: 6 channels; perimeter protection: 12 channels (general mode); face recognition: 6 channels; SMD Plus: 32 channels (64 channels by camera); privacy protection: 1 channel; EPTZ: 1 channel
Face database	Up to 10 face databases with 20,000 images
Video output	2 HDMI, 1 VGA, 1 CVBS; HDMI 1 up to 3840 x 2160, VGA/HDMI 2 up to 1920 x 1080
Storage	8 SATA ports, each disk up to 16 TB (limit varies with environment temperature)
Alarm input / output	16 channels / 6 channels (5-channel relay output, 1-channel 12 V 1 A output)
Audio	Input: 16-channel BNC and 32-channel BNC (coaxial audio); output: 1-channel BNC; two-way talk: 1-channel BNC
Interfaces	1 eSATA, 1 RS-232, 1 RS-485, 4 USB (2 front USB 2.0, 2 rear USB 3.0), 2 network ports (10/100/1000 Mbps RJ-45)
Interoperability	ONVIF 24.06 (Profile T, Profile S, Profile G); CGI; SDK; third-party camera access: Panasonic, Sony, Hanwha, Axis, Arecont, ONVIF
Power supply	100-240 VAC, 50 Hz plus or minus 2%
Power consumption	Under 30 W (without HDD)
Dimensions (W x D x H)	440.0 x 463.0 x 94.9 mm (2U)
Net weight	7.00 kg (15.44 lb)
Operating conditions	-10 °C to +55 °C; 10%-90% RH, non-condensing
Certifications	CE (LVD EN 60950-1/IEC 60950-1; EMC EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024); FCC Part 15 Subpart B

Works with

Dahua DHI-ARB1606 alarm box (optional accessory listed in Dahua's datasheet)
Surveillance hard drives: choose one from the Hard Drive option on this page, or order the recorder without a drive

Other Dahua recorders: DH-XVR5832S-I3 (5MP Value/1080P), DH-XVR5432L-4KL-I3, DH-XVR7416L-4K-I3 (16 channel).

Common questions

What does Penta-brid mean on this recorder?

It accepts HDCVI, AHD, TVI, CVBS and IP video inputs. The 32 BNC ports auto-detect the analogue format and IP cameras can be added on top. See Dahua Penta-brid recorders explained and Dahua HDCVI explained.

Does it record 4K?

Dahua's description is 4K Value/5MP. With Encode Enhancement off, main stream 4K is up to 15 fps on channels 1, 9, 17 and 25 and up to 7 fps on the other channels; 5 MP is up to 25 fps on those four channels and up to 12 fps on the others. HDMI 1 outputs up to 3840 x 2160.

How many IP cameras can it add?

Up to 64 IP channels (32 by default plus 32 when analogue channels are converted), each up to 12 MP, with 256 Mbps incoming bandwidth. Once IP extension is enabled, EPTZ, Video Quality Analytics, Scene Changing, Face Recognition, Face Detection, SMD, Perimeter Protection, QuickPick 2.0 and Privacy Protection cannot be used.

What does WizSense mean on this recorder?

Dahua describes WizSense as a series of AI products using an independent AI chip and deep learning, focused on humans and vehicles. This model has 32-channel SMD Plus. See Dahua WizSense explained.

How many hard drives can it hold?

8 SATA ports, each disk up to 16 TB (the limit varies with environment temperature). Choose a surveillance hard drive from the Hard Drive option on this page to order a DVR with hard drive, or order the recorder only.

What is the difference from the DH-XVR5832S-I3?

Both are 32 channel 2U 8 HDD WizSense recorders. The 4KL model adds 4K HDCVI input (4K@25/30 fps), up to 64 IP channels at 12 MP, 6-channel face recognition and 12-channel perimeter protection; the DH-XVR5832S-I3 is the 5MP Value/1080P model with up to 48 IP channels at 8 MP.

Full manufacturer specification: Dahua product page
