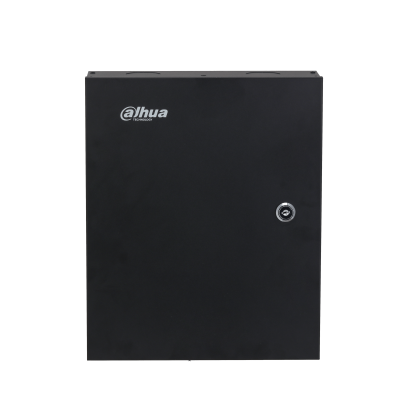

Dahua DHI-ASC2204C-S - 4-Door Networked Access Controller
Product Features
- 4 Door, 1-Way Networked Access Controller
- Supports up to 100,000 users, 100,000 cards, 100,000 passwords and 3,000 fingerprints (500,000 records)
- 5 x RS485 ports and 4 x Wiegand ports
- 2 channel alarm input, 2 channel alarm output with fire alarm linkage
- Anti-passback, multi-person unlock, first-card unlock and remote verification
- Supports backup DC12V7A battery access, charging and discharging
Dahua DHI-ASC2204C-S — 4-Door Networked Access Controller
The Dahua DHI-ASC2204C-S is a 4-door, 1-way networked access controller with TCP/IP communication and dual protocol support. It is the central management panel in an access control system, storing credentials and making the access decisions for up to 4 doors.
Who is it for?
This is a controller, not a reader — it is installed as the panel behind the scenes and needs separate card or fingerprint readers wired to its Wiegand ports to actually identify people at the door. It suits installations needing centralised, networked control of up to 4 doors with large-capacity user, card and fingerprint storage.
Key specification
| Device type | 4-Door, 1-Way Networked Access Controller |
|---|---|
| Communication | TCP/IP with dual protocol support |
| Capacity | 100,000 Users, 100,000 Passwords, 100,000 Cards, 3,000 Fingerprints, 500,000 Records |
| Interfaces | 5 x RS485 ports, 4 x Wiegand ports |
| Alarm I/O | 2 Channel Alarm Input, 2 Channel Alarm Output |
| Features | Anti-Passback, Multi-Person Unlock, First-Card Unlock, Remote Verification |
| Battery backup | Supports Backup DC12V7A Battery Access, Charging and Discharging |
| Fire alarm | Fire Alarm Linkage |
What you will need
- Card or fingerprint readers wired to the Wiegand ports — this controller does not include a reader
- Compatible electric door locks or strikes for each of the up to 4 doors
- A power supply for the controller and locks, plus a backup 12V battery if continuity during a power cut is required
- Access control management software to configure users, credentials and permissions over the network
Frequently asked questions
Is the DHI-ASC2204C-S a card reader?
No. It is a networked access controller — the panel that manages doors, stores user credentials and makes access decisions. Separate card or fingerprint readers connect to it via its Wiegand ports.
How many doors can it control?
The DHI-ASC2204C-S is a 4-door, 1-way controller, meaning it can manage entry control on up to 4 doors.
Does it support fingerprint access?
Yes, it can store up to 3,000 fingerprint templates alongside card and password credentials, provided a compatible fingerprint reader is connected.
Can it keep working if mains power fails?
Yes, it supports a backup DC12V7A battery for continued access control and alarm linkage during a power outage.
Browse the full Dahua range, explore our Access control category, or Contact us on 01902 902251 for advice. Visit our Wolverhampton trade counter to see access control hardware in person.
| Product Code | DHI-ASC2204C-S |
|---|---|
| Manufacturer | Dahua |
| Interface | 5 x RS485 ports, 4 x Wiegand ports |
