UNIVIEW - IPC3638SE-ADZKMC-WP-I1-BLACK - 8MP Tri-Guard VF Dual-light Turret Network Camera, 2.8 to 12mm Motorised, Black

IPC3638SE-ADZKMC-WP-I1-BLACK — 8MP Tri-Guard VF Dual-light Turret Network Camera, 2.8 to 12mm Motorised, Black

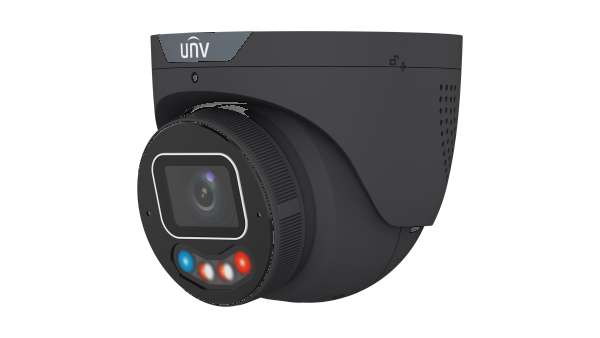

The Uniview IPC3638SE-ADZKMC-WP-I1-BLACK is the black-housing version of the IPC3638SE-ADZKMC-WP-I1, an 8MP turret network camera with a motorised lens running from 2.8 to 12 mm, so the view can be set to suit the scene rather than being fixed at one focal length.

What the IPC3638SE-ADZKMC-WP-I1-BLACK is for

The lens range gives a horizontal field of view from 111.5° at 2.8 mm down to 54.1° at 12 mm. Uniview's DORI distances run from 63.0 m to 270.0 m to detect and from 6.3 m to 27.0 m to identify, wide to tele. That range helps where the working distance is not known exactly.

It has dual light, 850 nm infrared and warm light, each to 30 m, and is rated IP67, IK10 and NEMA 4X for outdoor use (working range -40 to 60 degrees C). Minimum illumination is 0.0005 lux in colour at F1.2. The black finish suits dark fascias and soffits where a white camera would stand out.

Tri-Guard appears in the datasheet title. The rows list line crossing, intrusion, area enter and leave detection, with false alarm filtering and classification of human, non-motor vehicle and vehicle.

Key features

• 8MP maximum resolution, 1/1.8" CMOS sensor, 130 dB WDR
• Motorised lens, 2.8 to 12 mm, F1.2 iris
• Horizontal view from 111.5° to 54.1° across the lens range
• Dual light: IR and warm light to 30 m
• Built-in dual microphone, speaker and two-way audio support
• IP67, IK10, PoE (802.3af) or 12 V DC, microSD up to 512 GB
• Black housing

Full specification

What you will need

Supply PoE (IEEE 802.3af) from a PoE switch or an NVR's built-in PoE ports, or 12 V DC through the Ø5.5 mm coaxial plug; maximum draw is 7.0 W. Use a network cable for the run. For recording, add a compatible NVR with surveillance hard drives, or a microSD card of up to 512 GB. Neither is supplied.

Buying from Zenith Security Co.

We are a supplier, not an installer. We will go through the IPC3638SE-ADZKMC-WP-I1-BLACK with you before you buy — the motorised 2.8 to 12 mm lens, coverage distances, and how to power and record from it — and depending on your requirements and your area we can recommend a qualified trade installer. We have been operating since 2012 and you can visit our trade counter in Wolverhampton.

Is the IPC3638SE-ADZKMC-WP-I1-BLACK the same camera as the white version?

Yes. It shares the specification of the IPC3638SE-ADZKMC-WP-I1; only the housing colour differs.

What focal length does the IPC3638SE-ADZKMC-WP-I1-BLACK have?

A motorised lens covering 2.8 to 12 mm, with a horizontal field of view of 111.5° to 54.1°.

How far can the IPC3638SE-ADZKMC-WP-I1-BLACK see?

Uniview's DORI figures run from 63.0 m to 270.0 m to detect, and 6.3 m to 27.0 m to identify, depending on the lens setting.

Is the IPC3638SE-ADZKMC-WP-I1-BLACK PoE?

Yes, it takes PoE (IEEE 802.3af) or DC 12 V ±25%, with maximum consumption of 7.0 W.

Is this a trade-price product?

Yes. Uniview products are supplied at trade prices to approved trade customers, so the price is shown once you are logged in to a trade account. Call 01902 902251 or see our trade customer page to open an account.

How quickly can I get it?

We ship nationally from our multi-million pound warehouse, with orders leaving daily. Orders placed before 2:30pm are normally dispatched for delivery within 1–2 working days to England, Scotland and Wales. You can also collect in store from our trade counter — call first so we can confirm your order is ready. We do not ship to Northern Ireland.

Can I collect or see one before buying?

Yes. Our trade counter is at Unit 3, Park View Centre, 243 Dudley Road, Wolverhampton WV2 3JU. Call first so we can confirm the item is there for you.

Questions on specification or compatibility: call 01902 902251, see our FAQ and support pages, or contact us. Trade accounts are available — see trade customers. Browse the full Uniview range.
