UNIVIEW - IPC6325LFW-AX5C-VG - 5MP 5X Dual-light Auto-tracking Mini PTZ Network Camera

IPC6325LFW-AX5C-VG — 5MP 5X Dual-light Auto-tracking Mini PTZ Network Camera

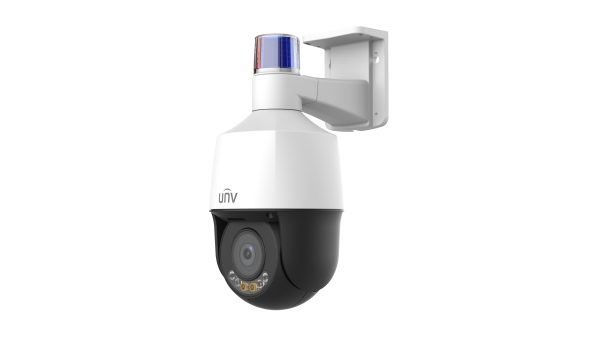

The Uniview IPC6325LFW-AX5C-VG is a 5MP mini PTZ network camera with a 5X optical zoom lens running from 2.7 to 13.5 mm on a 1/2.7" CMOS sensor.

What the IPC6325LFW-AX5C-VG is for

Pan runs 0° to 345° and tilt -10° to 100°, with 1024 presets and 16 patrols, and auto tracking is listed with target filtering for humans. The horizontal field of view runs from 106.9° to 30.6°, and Uniview's DORI distances are 70.9 m to 247.5 m to detect and 7.1 m to 24.8 m to identify. That suits yards, car parks and building frontages where one camera needs to cover and follow movement across a wide area.

It has 850 nm IR to 50 m and warm light to 15 m, a built-in microphone and speaker with two-way audio, a heater and IP66 protection (working range -30 to 60 degrees C). The intelligent rows list cross line, intrusion, enter and leave area detection with human and vehicle classification, plus people counting.

Key features

• 5MP, 1/2.7" CMOS, 120 dB WDR
• 2.7 to 13.5 mm lens, 5X optical zoom, F1.2
• Pan 0° to 345°, tilt -10° to 100°, 1024 presets, human auto tracking
• IR to 50 m and warm light to 15 m
• Built-in mic and speaker, two-way audio, alarm I/O 1/1
• IP66, PoE (802.3at) or 12 V DC, microSD up to 512 GB

Full specification

What you will need

Supply PoE (IEEE 802.3at) from a PoE switch or an NVR's built-in PoE ports, or 12 V DC through the Ø5.5 mm coaxial plug; maximum draw is 19.3 W. Use a network cable for the run. For recording, add a compatible NVR with surveillance hard drives, or a microSD card of up to 512 GB. Neither is supplied.

Buying from Zenith Security Co.

We are a supplier, not an installer. We will go through the IPC6325LFW-AX5C-VG with you before you buy — the 5X zoom range, PTZ coverage, and PoE+ power and recording — and depending on your requirements and your area we can recommend a qualified trade installer. We have been operating since 2012 and you can visit our trade counter in Wolverhampton.

What zoom does the IPC6325LFW-AX5C-VG have?

A 2.7 to 13.5 mm lens with 5X optical zoom, giving 106.9° to 30.6° horizontally.

Does the IPC6325LFW-AX5C-VG need PoE+?

It takes PoE (IEEE 802.3at) or DC 12 V ±25%; power consumption is listed as 19.3 W.

Does the IPC6325LFW-AX5C-VG track people?

Yes. Auto tracking is listed, with target filtering set to humans only.

How far does the IPC6325LFW-AX5C-VG light at night?

IR reaches 50 m and warm light 15 m.

Is the IPC6325LFW-AX5C-VG weatherproof?

It is rated IP66 with a working range of -30°C to 60°C, and has a heater.

Is this a trade-price product?

Yes. Uniview products are supplied at trade prices to approved trade customers, so the price is shown once you are logged in to a trade account. Call 01902 902251 or see our trade customer page to open an account.

How quickly can I get it?

We ship nationally from our multi-million pound warehouse, with orders leaving daily. Orders placed before 2:30pm are normally dispatched for delivery within 1–2 working days to England, Scotland and Wales. You can also collect in store from our trade counter — call first so we can confirm your order is ready. We do not ship to Northern Ireland.

Can I collect or see one before buying?

Yes. Our trade counter is at Unit 3, Park View Centre, 243 Dudley Road, Wolverhampton WV2 3JU. Call first so we can confirm the item is there for you.

Questions on specification or compatibility: call 01902 902251, see our FAQ and support pages, or contact us. Trade accounts are available — see trade customers. Browse the full Uniview range.
