UNIVIEW - IPC6412LR-X5UPW-VG - 2MP 5X LightHunter Indoor Mini PTZ Network Camera

IPC6412LR-X5UPW-VG — 2MP 5X LightHunter Indoor Mini PTZ Network Camera

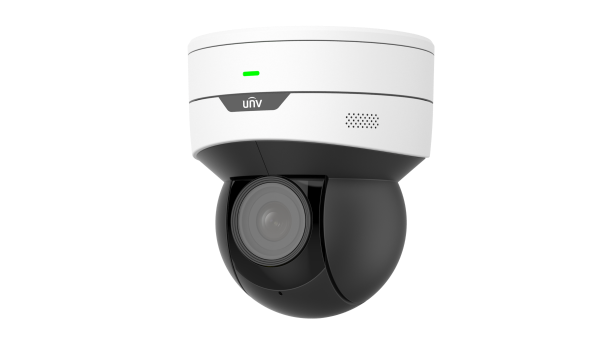

The Uniview IPC6412LR-X5UPW-VG is a 2MP (1080P) mini PTZ network camera for indoor use, with a 5X optical zoom lens running from 2.7 to 13.5 mm on a 1/2.7" CMOS sensor.

What the IPC6412LR-X5UPW-VG is for

Pan covers 350° and tilt 0° to 90°, with 1024 presets and 16 patrols. The horizontal field of view runs from 104.9° to 30.6°, and Uniview's DORI distances are 70.9 m to 247.5 m to detect and 7.1 m to 24.8 m to identify.

It has 850 nm IR to 30 m with Smart IR, a built-in microphone and speaker with two-way audio, and a plastic housing with a working range of -10 to 50 degrees C, so it suits offices, shops and warehouses rather than exposed outdoor positions. No IP rating is given.

Key features

• 2MP (1920 × 1080), 1/2.7" CMOS, 120 dB WDR
• 2.7 to 13.5 mm lens, 5X optical zoom, F1.2
• Pan 350°, tilt 0° to 90°, 1024 presets
• IR to 30 m with Smart IR
• Built-in mic and speaker, two-way audio, RS485, alarm I/O 1/1
• PoE (802.3at) or 12 V DC, microSD up to 512 GB

Full specification

What you will need

Supply PoE (IEEE 802.3at) from a PoE switch or an NVR's built-in PoE ports, or 12 V DC through the Ø5.5 mm coaxial plug; maximum draw is 15 W. Use a network cable for the run. For recording, add a compatible NVR with surveillance hard drives, or a microSD card of up to 512 GB. Neither is supplied.

Buying from Zenith Security Co.

We are a supplier, not an installer. We will go through the IPC6412LR-X5UPW-VG with you before you buy — the 5X zoom range, indoor mounting position, and PoE+ power and recording — and depending on your requirements and your area we can recommend a qualified trade installer. We have been operating since 2012 and you can visit our trade counter in Wolverhampton.

Can the IPC6412LR-X5UPW-VG be used outdoors?

It is listed with a plastic housing, a working range of -10°C to 50°C and no IP rating, so it is intended for indoor use.

What resolution is the IPC6412LR-X5UPW-VG?

The main stream is 1080P (1920 × 1080) at up to 30 fps.

What zoom does the IPC6412LR-X5UPW-VG have?

A 2.7 to 13.5 mm lens with 5X optical zoom, giving 104.9° to 30.6° horizontally.

How is the IPC6412LR-X5UPW-VG powered?

PoE (IEEE 802.3at) or DC 12 V ±25%, maximum 15 W.

Is this a trade-price product?

Yes. Uniview products are supplied at trade prices to approved trade customers, so the price is shown once you are logged in to a trade account. Call 01902 902251 or see our trade customer page to open an account.

How quickly can I get it?

We ship nationally from our multi-million pound warehouse, with orders leaving daily. Orders placed before 2:30pm are normally dispatched for delivery within 1–2 working days to England, Scotland and Wales. You can also collect in store from our trade counter — call first so we can confirm your order is ready. We do not ship to Northern Ireland.

Can I collect or see one before buying?

Yes. Our trade counter is at Unit 3, Park View Centre, 243 Dudley Road, Wolverhampton WV2 3JU. Call first so we can confirm the item is there for you.

Questions on specification or compatibility: call 01902 902251, see our FAQ and support pages, or contact us. Trade accounts are available — see trade customers. Browse the full Uniview range.
