IPC8645EA-ADZKM-I1 — 4 × 5MP Multi-sensor Network Camera, 2.7 to 13.5mm Motorised

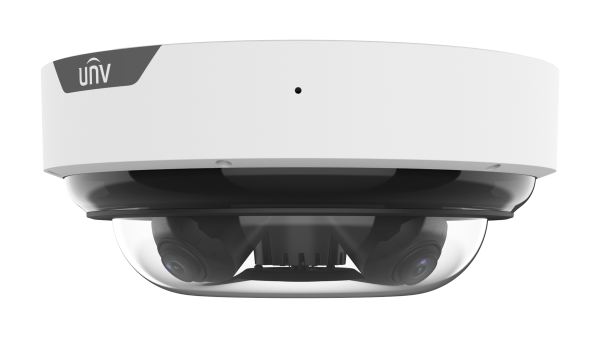

The Uniview IPC8645EA-ADZKM-I1 is a multi-sensor network camera with four 5MP channels, each on a 1/2.7" CMOS sensor behind its own motorised 2.7 to 13.5 mm lens.

What the IPC8645EA-ADZKM-I1 is for

Four separately aimed views from one mounting point suit junctions, car parks and building corners, where several fixed cameras would otherwise be needed. Each lens gives 110.3° to 31° horizontally, and Uniview's DORI distances are 70.9 m to 247.5 m to detect and 7.1 m to 24.8 m to identify. Corridor mode is supported.

It has IR to 50 m, IP67 and IK10 ratings (working range -30 to 60 degrees C), a gigabit network port, 3/2 alarm I/O, a built-in microphone and a built-in 12 V DC output. Power is PoE (IEEE 802.3bt) or 24 V AC/DC, maximum 31 W. Each channel counts as a camera on the recorder, so allow four NVR channels.

Key features

• 4 × 5MP channels, 1/2.7" CMOS, 130 dB WDR
• Four motorised 2.7 to 13.5 mm lenses, 5X zoom, F1.2
• IR to 50 m
• 1 × RJ45 10/100/1000 Mbps; alarm I/O 3/2; built-in mic
• IP67 and IK10, Ø318 × 136.6 mm, 4.77 kg
• PoE (802.3bt) or 24 V AC/DC, max. 31 W

Full specification

What you will need

Power it from a PoE switch or injector that supplies IEEE 802.3bt, or from 24 V AC/DC on the wired terminals; maximum draw is 31 W. The network port is gigabit, so use a network cable rated for it. Record on a compatible NVR with four free channels and surveillance hard drives, or on a microSD card of up to 512 GB. None of these are supplied.

Buying from Zenith Security Co.

We are a supplier, not an installer. We will go through the IPC8645EA-ADZKM-I1 with you before you buy — channel count on your recorder, 802.3bt power, and aiming the four lenses — and depending on your requirements and your area we can recommend a qualified trade installer. We have been operating since 2012 and you can visit our trade counter in Wolverhampton.

How many channels does the IPC8645EA-ADZKM-I1 use?

Four. It has four 5MP sensors, so allow four channels on the recorder.

How is the IPC8645EA-ADZKM-I1 powered?

PoE (IEEE 802.3bt), DC 24 V ±25% or AC 24 V ±25%, maximum 31 W.

What lenses does the IPC8645EA-ADZKM-I1 have?

Each channel has a motorised 2.7 to 13.5 mm lens (5X), giving 110.3° to 31° horizontally.

Is the IPC8645EA-ADZKM-I1 weatherproof?

It is rated IP67 and IK10, with a working range of -30°C to 60°C.

Is this a trade-price product?

Yes. Uniview products are supplied at trade prices to approved trade customers, so the price is shown once you are logged in to a trade account. Call 01902 902251 or see our trade customer page to open an account.

How quickly can I get it?

We ship nationally from our multi-million pound warehouse, with orders leaving daily. Orders placed before 2:30pm are normally dispatched for delivery within 1–2 working days to England, Scotland and Wales. You can also collect in store from our trade counter — call first so we can confirm your order is ready. We do not ship to Northern Ireland.

Can I collect or see one before buying?

Yes. Our trade counter is at Unit 3, Park View Centre, 243 Dudley Road, Wolverhampton WV2 3JU. Call first so we can confirm the item is there for you.
