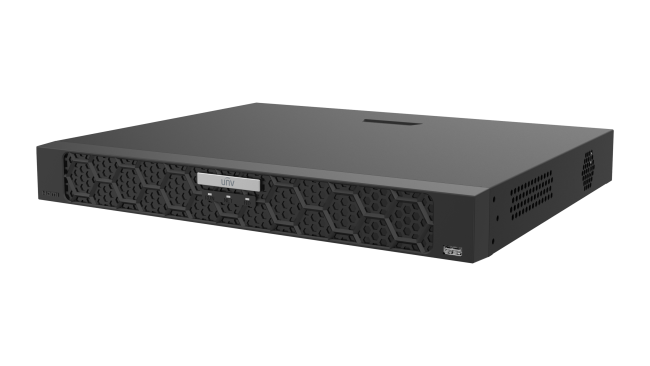

UNIVIEW - NVR502-16B-P16 - 16-Channel PoE Network Video Recorder with 2 SATA Bays
Product Features
16-channel Prime Series PoE NVR with two SATA bays (up to 16 TB each), RAID 1, 220 Mbps incoming bandwidth and mains power input. Hard drives not included.
NVR502-16B-P16 — 16-Channel PoE Network Video Recorder with 2 SATA Bays
The Uniview NVR502-16B-P16 is a 16-channel Prime Series NVR with built-in PoE, two SATA bays (up to 16 TB each) and RAID 1 support.
What the NVR502-16B-P16 is for
It accepts 16 IP channels with 220 Mbps incoming and 260 Mbps outgoing bandwidth, recording up to 16 MP. Ultra 265/H.265 decoding is listed up to 16 x 1080P at 30 fps.
Note: the Uniview page we sourced is a regional (Colombia) datasheet, and its PoE rows list 8 PoE interfaces with 130 W in total, despite the P16 suffix. Confirm the PoE port count with us before ordering.
It has 8 alarm inputs, 2 alarm outputs, RS485 and runs from AC 100 to 240 V. Smart by IPC covers all channels (face, vehicle, SIP, UMD and more).
Key features
- 16 IP channels, recording up to 16 MP
- 220 Mbps incoming / 260 Mbps outgoing
- 2 SATA bays, up to 16 TB each, RAID 1
- Built-in PoE, IEEE 802.3af/at (see PoE note)
- 8/2 alarm I/O, RS485, gigabit network port
- AC 100 to 240 V mains input
Full specification
| Decoding | |
| Decoding Format | Ultra 265, H.265, Ultra 264, H.264, MPEG4 |
| Decoding Capability | Ultra 265/H.265: 2 x 16MP@30, 2 x 12MP@30, 4 x 4K@30, 6 x 5MP@30, 8 x 4MP@30, 10 x 3MP@30, 16 x 1080P@30 Ultra 264/H.264: 2 x 16MP(4800*2688)@30, 2 x 12MP@30, 2 x 4K@30, 4 x 5MP@30, 6 x 4MP@30, 8 x 3MP@30, 14 x 1080P@30, 16 x 720P@30 |
| Decoding Capability Description | The resolution of each channel cannot exceed 8192 pixels in length and 4096 pixels in width, For VGA/HDMI independent output, the VGA live video is output by default. To output the highest resolution video from the HDMI port, please clear the VGA video on the preview page. |
| Audio Compression | G.711A, G.711U |
| Network | |
| Incoming Bandwidth | 220 Mbps |
| Outgoing Bandwidth | 260 Mbps |
| Remote Users | 128 |
| Protocols | TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, RTSP, IPv6, IPv4 |
| Video/Audio Input | |
| IP Video Input | 16-ch |
| RCA Audio Input | 1-ch |
| Video/Audio Output | |
| HDMI Output | 4K (3840 × 2160)/30 Hz, 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz |
| VGA Output | 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz |
| RCA Audio Output | 1-ch |
| Liveview Display | 1/4/6/8/9/16 |
| Corridor Mode Screen | 3/4/5/7/9/10/12/16 |
| Two-way Audio | |
| Two-way Audio | 1-ch, RCA (Using the audio input and output) |
| Snapshot | |
| FTP/Schedule/Event Snapshot | 4-ch snapshot (max. D1 (720 × 576) video resolution, with D1 snapshot resolution) |
| Recording | |
| Recording Resolution | 16 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF/QCIF |
| Synchronous Playback in Local | 16-ch |
| Smart | |
| VCA Detection by IPC | Face Detection, Vehicle Detection, SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area), Ultra Motion Detection (UMD), Temperature Detection (Fire Detection, Smoking Detection, Temperature Measurement, Smoke and Fire Detection), People Counting (People Flow Counting, Crowd Density Monitoring), Video Metadata, Traffic Monitoring |
| VCA Search | Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report, Heat Map |
| Smart by IPC | All channels (up to 8 images/s in total) Face Detection, Vehicle Detection, Temperature Detection, SIP, UMD, Video Metadata, Traffic Monitoring |
| Alarm | |
| General Alarm | Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion Detection, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection |
| Alert Alarm | IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal |
| Hard Disk | |
| SATA | 2 SATA Interfaces |
| Capacity | Up to 16 TB for each HDD (The maximum HDD capacity varies with environment temperature) |
| Disk Group | Support |
| Redundant Storage | Support |
| Disk Array Type | RAID 1 |
| External Interface | |
| Network Interface | 1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface |
| USB | Front panel: 1 × USB2.0, Rear panel: 1 × USB3.0 |
| RS485 | 1 |
| Alarm In | 8-ch |
| Alarm Out | 2-ch |
| Power Supply | AC 100 to 240 V |
| Power Switch | Support |
| PoE | |
| PoE Interface | 8 RJ45 10 M/100 M self-adaptive Ethernet Interface |
| Max Power | Max 30 W for single port, Max 130 W in total |
| Supported Standard | IEEE 802.3at, IEEE 802.3af |
| Working Environment | |
| Working Temperature | -10°C to 55°C |
| Working Humidity | ≤ 90% RH (non-condensing) |
| Power Consumption (without HDD) | ≤ 20W |
| Dimensions | |
| Weight (without HDD) | ≤ 2.6Kg |
| Dimensions | 380mm × 322mm × 53mm |
| Certification | |
| Certification | CE; FCC; UL; RoHS; WEEE |
| CE | EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035 |
| FCC | Part15 Subpart B |
What you will need
Connect the cameras with network cable; where the built-in PoE is not enough, add a PoE switch. No hard drives are supplied; add up to two surveillance hard drives of up to 16 TB each. A monitor connects by HDMI or VGA.
Buying from Zenith Security Co.
We are a supplier, not an installer. We will go through the NVR502-16B-P16 with you before you buy — the PoE port count, camera count and storage to fit — and depending on your requirements and your area we can recommend a qualified trade installer. We have been operating since 2012 and you can visit our trade counter in Wolverhampton.
How many cameras can the NVR502-16B-P16 record?
16 IP channels, with 220 Mbps incoming bandwidth.
How many PoE ports does the NVR502-16B-P16 have?
The datasheet we sourced lists 8 PoE interfaces and 130 W total, which conflicts with the P16 name. Call us to confirm before ordering.
Does the NVR502-16B-P16 support RAID?
Yes, RAID 1 across its two SATA bays.
What drive size does it take?
Up to 16 TB per drive. Add a surveillance hard drive.
Is this a trade-price product?
Yes. Uniview products are supplied at trade prices to approved trade customers, so the price is shown once you are logged in to a trade account. Call 01902 902251 or see our trade customer page to open an account.
How quickly can I get it?
We ship nationally from our multi-million pound warehouse, with orders leaving daily. Orders placed before 2:30pm are normally dispatched for delivery within 1–2 working days to England, Scotland and Wales. You can also collect in store from our trade counter — call first so we can confirm your order is ready. We do not ship to Northern Ireland.
Can I collect or see one before buying?
Yes. Our trade counter is at Unit 3, Park View Centre, 243 Dudley Road, Wolverhampton WV2 3JU. Call first so we can confirm the item is there for you.
Questions on specification or compatibility: call 01902 902251, see our FAQ and support pages, or contact us. Trade accounts are available — see trade customers. Browse the full Uniview range.
| Product Code | NVR502-16B-P16 |
|---|---|
| Manufacturer | Uniview |
| Colour | Black |
| In/Out Bandwidth | In: 220 Mbps / Out: 260 Mbps |
| Storage Capacity | Up to 16 TB for each HDD |
| Power Consumption (without HDD) | ≤ 20W |
