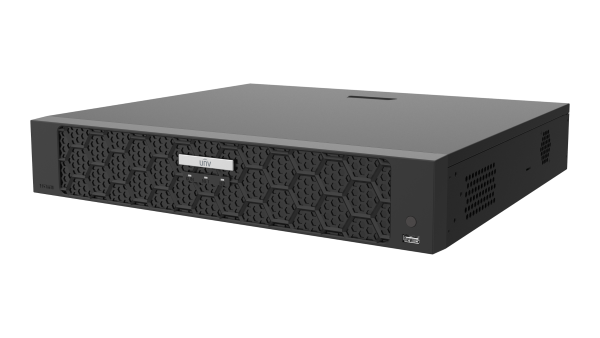

UNIVIEW - NVR504-16B-P16 - 16-Channel 16-Port PoE Network Video Recorder with 4 SATA Bays
Product Features
16-channel Prime Series NVR with 16 PoE ports (150 W total), four SATA bays up to 24 TB each, RAID 1/5 and mains input. Hard drives not included.
NVR504-16B-P16 — 16-Channel 16-Port PoE Network Video Recorder with 4 SATA Bays
The Uniview NVR504-16B-P16 is a 16-channel Prime Series NVR with 16 built-in PoE ports, four SATA bays (up to 24 TB each) and RAID 1 and 5.
What the NVR504-16B-P16 is for
It accepts 16 IP channels with 320 Mbps incoming and 160 Mbps outgoing bandwidth, recording up to 16 MP. Ultra 265/H.265 decoding is listed up to 16 x 1080P at 30 fps.
Its 16 PoE ports supply up to 30 W each and 150 W in total, so check the cameras' combined draw. It has 16 alarm inputs, 4 alarm outputs and RS485, and runs from AC 100 to 240 V. This is the standard model; the IQ version is listed separately.
Key features
- 16 IP channels, recording up to 16 MP
- 16 PoE ports, 30 W per port, 150 W total
- 4 SATA bays, up to 24 TB each, RAID 1 and 5
- 320 Mbps incoming / 160 Mbps outgoing
- 16/4 alarm I/O, RS485, gigabit network port
- AC 100 to 240 V mains input
Full specification
| Decoding | |
| Decoding Format | Ultra 265, H.265, H.264 |
| Decoding Capability | Ultra 265/H.265: 2 x 16MP@30, 2 x 12MP@30, 4 x 4K@30, 6 x 5MP@30, 8 x 4MP@30, 10 x 3MP@30, 16 x 1080P@30 H.264: 2 x 16MP(4800*2688)@30, 2 x 12MP@30, 2 x 4K@30, 4 x 5MP@30, 6 x 4MP@30, 8 x 3MP@30, 14 x 1080P@30, 16 x 720P@30 |
| Decoding Capability Description | The resolution of each channel cannot exceed 8192 pixels in length and 4096 pixels in width, For VGA/HDMI independent output, the VGA live video is output by default. To output the highest resolution video from the HDMI port, please clear the VGA video on the preview page. |
| Audio Compression | G.711A, G.711U |
| Network | |
| Incoming Bandwidth | 320 Mbps |
| Outgoing Bandwidth | 160 Mbps |
| Remote Users | 128 |
| Protocols | TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, RTSP, 802.1x, IPv6, IPv4 |
| Video/Audio Input | |
| IP Video Input | 16-ch |
| RCA Audio Input | 1-ch |
| Video/Audio Output | |
| HDMI Output | 4K (3840 × 2160)/30 Hz, 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz |
| VGA Output | 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz |
| RCA Audio Output | 1-ch |
| Liveview Display | 1/4/6/8/9/16 |
| Corridor Mode Screen | 3/4/5/7/9/10/12/16 |
| Two-way Audio | |
| Two-way Audio | 1-ch, RCA (Using the audio input and output) |
| Snapshot | |
| FTP/Schedule/Event Snapshot | 4-ch snapshot (max. D1 (720 × 576) video resolution, with D1 snapshot resolution) |
| Recording | |
| Recording Resolution | 16 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF |
| Synchronous Playback in Local | 16-ch |
| Smart Function | |
| Smart by IPC | All channels (up to 8 images/s in total) Face Detection, Vehicle Detection (LPR), Temperature Detection, SIP, UMD, Video Metadata, Traffic Monitoring |
| VCA Search | Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report, Heat Map |
| Alarm | |
| General Alarm | Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion Detection, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection |
| Alert Alarm | IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal |
| Hard Disk | |
| SATA | 4 SATA Interfaces |
| Capacity | Up to 24 TB for each HDD (The maximum HDD capacity varies with environment temperature and hard disk size, The environment temperature for use should not exceed 40°C) |
| Disk Group | Support |
| Redundant Storage | Support |
| Disk Array Type | RAID 1, 5 |
| External Interface | |
| Network Interface | 1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface |
| USB | Front panel: 1 × USB2.0, Rear panel: 1 × USB3.0 |
| RS485 | 1 |
| Alarm In | 16-ch |
| Alarm Out | 4-ch |
| Power Supply | AC 100 to 240 V |
| Power Switch | Support |
| PoE | |
| PoE Interface | 16 RJ45 10 M/100 M self-adaptive Ethernet Interface |
| Max Power | Max 30 W for single port, Max 150 W in total |
| Supported Standard | IEEE 802.3at, IEEE 802.3af |
| Working Environment | |
| Working Temperature | -10°C to 55°C |
| Working Humidity | ≤ 90% RH (non-condensing) |
| Power Consumption (without HDD) | ≤ 20W |
| Dimensions | |
| Weight (without HDD) | ≤ 4Kg |
| Dimensions | 400mm × 368mm × 74mm |
| Certification | |
| Certification | CE; FCC; UL; RoHS; WEEE |
| CE | EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035 |
| FCC | Part15 Subpart B |
What you will need
Plug up to 16 PoE cameras into the PoE ports with network cable, keeping the total within 150 W. No hard drives are supplied; add up to four surveillance hard drives of up to 24 TB each. A monitor connects by HDMI or VGA.
Buying from Zenith Security Co.
We are a supplier, not an installer. We will go through the NVR504-16B-P16 with you before you buy — PoE draw against the 150 W total, RAID choice and storage — and depending on your requirements and your area we can recommend a qualified trade installer. We have been operating since 2012 and you can visit our trade counter in Wolverhampton.
Does the NVR504-16B-P16 power cameras?
Yes, 16 PoE ports, up to 30 W each and 150 W in total.
How many hard drives does it take?
Four SATA drives of up to 24 TB each, with RAID 1 and 5. Add a surveillance hard drive.
What resolution does it record?
Up to 16 MP.
How is it powered?
AC 100 to 240 V mains, with a power switch; ≤ 20W without drives.
Is this a trade-price product?
Yes. Uniview products are supplied at trade prices to approved trade customers, so the price is shown once you are logged in to a trade account. Call 01902 902251 or see our trade customer page to open an account.
How quickly can I get it?
We ship nationally from our multi-million pound warehouse, with orders leaving daily. Orders placed before 2:30pm are normally dispatched for delivery within 1–2 working days to England, Scotland and Wales. You can also collect in store from our trade counter — call first so we can confirm your order is ready. We do not ship to Northern Ireland.
Can I collect or see one before buying?
Yes. Our trade counter is at Unit 3, Park View Centre, 243 Dudley Road, Wolverhampton WV2 3JU. Call first so we can confirm the item is there for you.
Questions on specification or compatibility: call 01902 902251, see our FAQ and support pages, or contact us. Trade accounts are available — see trade customers. Browse the full Uniview range.
| Product Code | NVR504-16B-P16 |
|---|---|
| Manufacturer | Uniview |
| Colour | Black |
| In/Out Bandwidth | In: 320 Mbps / Out: 160 Mbps |
| Storage Capacity | Up to 24 TB for each HDD |
| PoE Port | 16 |
| Power Consumption (without HDD) | ≤ 20W |
