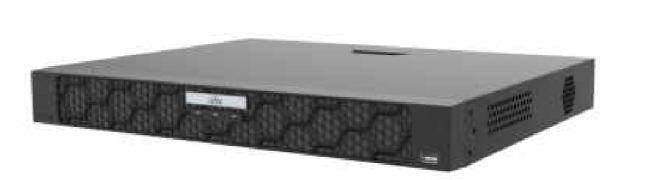

UNIVIEW - NVR502-32B-P16-IQ - 32-Channel 16-Port PoE Network Video Recorder
Product Features
The Uniview NVR502-32B-P16-IQ is a 32-channel NVR with 16 built-in PoE ports (up to 30 W per port, 240 W in total), 2 SATA bays and 4K HDMI output. Hard drives are not included.
NVR502-32B-P16-IQ — 32-Channel 16-Port PoE Network Video Recorder
The Uniview NVR502-32B-P16-IQ is a 32-channel network video recorder from the NVR502-B-P-IQ series, with 16 built-in PoE ports and two SATA bays. Recording is supported up to 16MP.
What the NVR502-32B-P16-IQ is for
It records up to 32 IP cameras, and 16 of them can plug straight into its PoE ports (IEEE 802.3at/af, up to 30 W per port and 240 W in total). Further cameras need their own power, for example from a PoE switch. Incoming bandwidth is 320 Mbps with smart functions off and 160 Mbps with them on.
The IQ series adds NVR-side analytics: face detection and comparison, smart intrusion prevention (SIP) and ultra motion detection (UMD), plus AcuSearch and AcuTrack with Uniview SIP/UMD cameras. Only one analyser mode can be active at a time. Video output is HDMI up to 4K at 30 Hz plus an independent VGA output.
Key features
- 32 IP video inputs, Ultra 265, H.265 and H.264 decoding
- 16 PoE ports, IEEE 802.3at/af, 30 W per port, 240 W in total
- 2 SATA bays, up to 24 TB per drive, RAID 1
- Recording up to 16MP; HDMI up to 4K and independent VGA
- Face detection, SIP, UMD, AcuSearch and AcuTrack
- Gigabit network port, 8 alarm inputs and 2 outputs
Full specification
| Decoding | |
| Decoding Format | Ultra 265, H.265, H.264 |
| Decoding Capability (Smart Off) | 2 × 16MP@30, 2 × 12MP@30, 4 × 4K@30, 8 × 4MP@30, 10 × 3MP@30, 16 × 1080P@30, 32 × 720P@30 |
| Decoding Capability (Smart On) | 2 × 12MP@30, 2 × 4K@30, 6 × 4MP@30, 8 × 3MP@30, 12 × 1080P@30, 24 × 720P@30, 32 × D1 |
| Audio Compression | G.711A, G.711U |
| Network | |
| Incoming Bandwidth | Smart off: 320 Mbps; Smart on: 160 Mbps |
| Outgoing Bandwidth | 160 Mbps |
| Max Remote Users | 128 |
| Protocols | TCP/IP, P2P, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, NFS, RTSP, IPv6, IPv4 |
| Video/Audio Input and Output | |
| IP Video Input | 32-ch |
| RCA Audio In / Out | 1-ch / 1-ch |
| HDMI Output | Up to 4K (3840 × 2160) at 30 Hz |
| VGA Output | Up to 1920 × 1080 at 60 Hz |
| Liveview Display | 1/4/6/8/9/16/25/32 |
| Two-way Audio | 1-ch, RCA |
| Recording | |
| Recording Resolution | 16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080P/960P/720P/D1/2CIF/CIF |
| Synchronous Playback | 16-ch |
| Smart Function | |
| Smart by NVR | Face detection, face comparison, SIP, UMD |
| Face Detection by NVR | Up to 8-ch with Uniview face detection cameras; up to 2-ch with normal cameras |
| SIP by NVR (normal cameras) | Up to 4-ch |
| UMD by NVR (normal cameras) | Up to 8-ch |
| VCA Search | AcuSearch, AcuTrack, face snapshot, face comparison, motor vehicle, non-motor vehicle, human body, people counting report, heat map |
| Hard Disk | |
| SATA | 2 SATA interfaces |
| Capacity | Up to 24 TB per HDD |
| Disk Array Type | RAID 1 |
| External Interface | |
| Network Interface | 1 × RJ45 10/100/1000 Mbps |
| USB | Front: 1 × USB 2.0; Rear: 1 × USB 3.0 |
| RS485 | 1 |
| Alarm In / Out | 8-ch / 2-ch |
| Power Supply | AC 100 to 240 V |
| PoE | |
| PoE Interface | 16 × RJ45 10/100 Mbps |
| Max Power | 30 W per port, 240 W in total |
| Standard | IEEE 802.3at, IEEE 802.3af |
| General | |
| Working Temperature | -10°C to 50°C |
| Working Humidity | ≤ 90% RH (non-condensing) |
| Power Consumption (without HDD) | ≤ 12 W |
| Weight (without HDD) | ≤ 2.7 kg |
| Dimensions | 380 × 322 × 53 mm, 1U |
| Certification | CE, FCC, UL, RoHS, WEEE |
What you will need
Add surveillance hard drives, as none are included: there are 2 SATA bays of up to 24 TB each. PoE cameras need network cable to the 16 PoE ports. Cameras beyond 16, or beyond the 240 W total, need a PoE switch. See other NVRs if you need a different channel count.
Buying from Zenith Security Co.
We are a supplier, not an installer. We will go through the NVR502-32B-P16-IQ with you before you buy — your camera count and PoE draw against the 240 W budget, hard drive size and cable runs — and depending on your requirements and your area we can recommend a qualified trade installer. We have been operating since 2012 and you can visit our trade counter in Wolverhampton.
How many PoE ports does the NVR502-32B-P16-IQ have?
16 PoE ports (10/100 Mbps), IEEE 802.3at and 802.3af, up to 30 W per port and 240 W in total.
Is a hard drive included with the NVR502-32B-P16-IQ?
No. It has 2 SATA bays, each up to 24 TB, with RAID 1 support.
What does the IQ version add?
NVR-side face detection and comparison, SIP and UMD, plus AcuSearch and AcuTrack with Uniview SIP/UMD cameras. Only one analyser mode runs at a time.
What is the maximum recording resolution?
Uniview lists recording up to 16MP, and HDMI output up to 4K at 30 Hz.
Is this a trade-price product?
Yes. Uniview products are supplied at trade prices to approved trade customers, so the price is shown once you are logged in to a trade account. Call 01902 902251 or see our trade customer page to open an account.
How quickly can I get it?
We ship nationally from our multi-million pound warehouse, with orders leaving daily. Orders placed before 2:30pm are normally dispatched for delivery within 1–2 working days to England, Scotland and Wales. You can also collect in store from our trade counter — call first so we can confirm your order is ready. We do not ship to Northern Ireland.
Can I collect or see one before buying?
Yes. Our trade counter is at Unit 3, Park View Centre, 243 Dudley Road, Wolverhampton WV2 3JU. Call first so we can confirm the item is there for you.
Questions on specification or compatibility: call 01902 902251, see our FAQ and support pages, or contact us. Trade accounts are available — see trade customers. Browse the full Uniview range.
| Product Code | NVR502-32B-P16-IQ |
|---|---|
| Manufacturer | Uniview |
| Colour | Black |
| Max No. of Channels | 32 ch |
| In/Out Bandwidth | In: 320 Mbps (Smart off) / Out: 160 Mbps |
| Storage Capacity | Up to 24 TB for each HDD |
| PoE Port | 16 |
| USB Port | Front panel: 1 × USB2.0, Rear panel: 1 × USB3.0 |
| Power Consumption (without HDD) | ≤ 12W |
