UNIVIEW - UNV-DE3124-V2 - DE3124-V2 24-Bay Disk Enclosure, Dual Controller

UNV-DE3124-V2 — DE3124-V2 24-Bay Disk Enclosure, Dual Controller

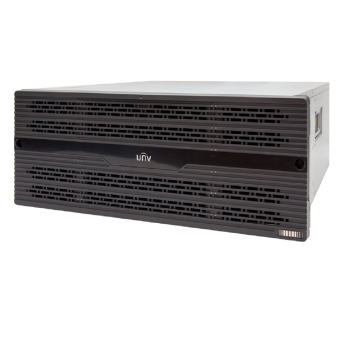

The Uniview DE3124-V2 (UNV-DE3124-V2) is a 24-bay disk enclosure with two controller modules, used to add drive capacity to compatible Uniview storage over Mini SAS HD.

What the UNV-DE3124-V2 is for

It connects back to the host storage through four primary 4 × 12 Gbps Mini SAS HD ports and four backup 2 × 12 Gbps Mini SAS HD ports, so large camera systems can expand recording capacity without replacing the host.

The chassis measures 482.0 × 589.0 × 175.0 mm, draws 270 W fully loaded and weighs under 40 kg with drives fitted. It runs from 100–127 V or 200–240 V AC and is rated for 5°C to 40°C, so it belongs in a server room or cabinet.

Key features

• 24 HDD slots
• Two controller modules
• 4-port 4 × 12 Gbps Mini SAS HD (primary), 4-port 2 × 12 Gbps Mini SAS HD (backup)
• Two serial ports
• 100–127 V / 200–240 V AC, 270 W fully loaded
• CE, FCC, CB, RoHS, WEEE

Full specification

What you will need

A compatible Uniview host storage unit with Mini SAS HD expansion, Mini SAS HD cables and surveillance hard drives for the 24 bays; none are supplied. Allow rack space for the 482 × 589 × 175 mm chassis and an AC supply.

Buying from Zenith Security Co.

We are a supplier, not an installer. We will go through the UNV-DE3124-V2 with you before you buy — host compatibility, drive sizing and the cabling between the enclosure and your storage — and depending on your requirements and your area we can recommend a qualified trade installer. We have been operating since 2012 and you can visit our trade counter in Wolverhampton.

How many drives does the UNV-DE3124-V2 hold?

24 HDD slots. Drives are not supplied.

How does the UNV-DE3124-V2 connect?

Through Mini SAS HD: four primary ports at 4 × 12 Gbps and four backup ports at 2 × 12 Gbps.

What power does the UNV-DE3124-V2 need?

100–127 V or 200–240 V AC at 50/60 Hz; consumption is 270 W fully loaded.

Is this a trade-price product?

Yes. Uniview products are supplied at trade prices to approved trade customers, so the price is shown once you are logged in to a trade account. Call 01902 902251 or see our trade customer page to open an account.

How quickly can I get it?

We ship nationally from our multi-million pound warehouse, with orders leaving daily. Orders placed before 2:30pm are normally dispatched for delivery within 1–2 working days to England, Scotland and Wales. You can also collect in store from our trade counter — call first so we can confirm your order is ready. We do not ship to Northern Ireland.

Can I collect or see one before buying?

Yes. Our trade counter is at Unit 3, Park View Centre, 243 Dudley Road, Wolverhampton WV2 3JU. Call first so we can confirm the item is there for you.

Questions on specification or compatibility: call 01902 902251, see our FAQ and support pages, or contact us. Trade accounts are available — see trade customers. Browse the full Uniview range.
