UNIVIEW - UNV-IPC3615SB-ADF28KM-I0 - 5MP HD IR Fixed Eyeball Network Camera, 2.8mm

UNV-IPC3615SB-ADF28KM-I0 — 5MP HD IR Fixed Eyeball Network Camera, 2.8mm

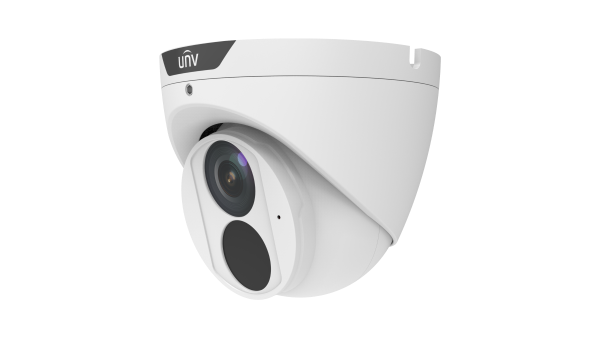

The Uniview IPC3615SB-ADF28KM-I0 is a 5MP fixed eyeball network camera with a 2.8 mm lens, IR and a built-in microphone.

What the UNV-IPC3615SB-ADF28KM-I0 is for

The 2.8 mm lens gives a 110.0° horizontal field of view, and Uniview's DORI distances are 63.0 m to detect and 6.3 m to identify. IR reaches 30 m at 850 nm and minimum illumination is 0.002 lux in colour at F1.6.

It is rated IP67 and works from -30°C to 60°C. For warm light and a speaker, see the IPC3615SB-ADF28KMC-I0.

Key features

• 5MP, 1/2.7" CMOS sensor, 120 dB WDR
• Fixed 2.8 mm lens, 110.0° horizontal view
• 850 nm IR to 30 m
• Built-in microphone
• Smart intrusion prevention with human/vehicle classification
• IP67, PoE (802.3af) or 12 V DC, max 4.0 W, microSD up to 512 GB

Full specification

What you will need

Supply PoE (IEEE 802.3af) from a PoE switch or an NVR's built-in PoE ports, or 12 V DC; maximum draw is 4.0 W. Use a network cable for the run. For recording, add a compatible NVR or a microSD card of up to 512 GB, with surveillance hard drives in the recorder. None of these is supplied.

Buying from Zenith Security Co.

We are a supplier, not an installer. We will go through the UNV-IPC3615SB-ADF28KM-I0 with you before you buy — the lens and coverage, how to power it and which recorder suits it — and depending on your requirements and your area we can recommend a qualified trade installer. We have been operating since 2012 and you can visit our trade counter in Wolverhampton.

What is the difference between the IPC3615SB-ADF28KM-I0 and the KMC version?

The KMC version adds warm light and a built-in speaker; this KM version has IR only and a microphone.

How far does the UNV-IPC3615SB-ADF28KM-I0 see?

Uniview's DORI distances are 63.0 m to detect and 6.3 m to identify, with IR to 30 m.

Is the UNV-IPC3615SB-ADF28KM-I0 PoE?

Yes, PoE (IEEE 802.3af) or DC 12 V ±25%, up to 4.0 W.
