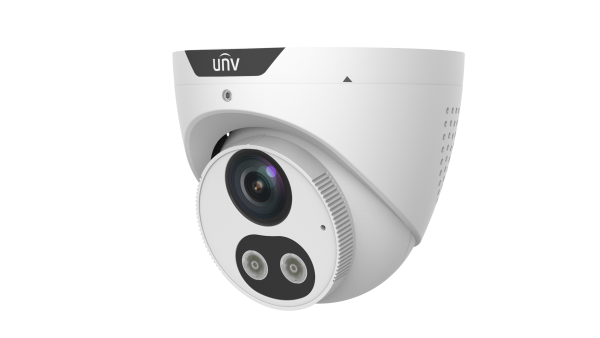

UNIVIEW - UNV-IPC3615SB-ADF28KMC-I0 - 5MP HD Intelligent Light and Audible Warning Fixed Eyeball Network Camera, 2.8mm

UNV-IPC3615SB-ADF28KMC-I0 — 5MP HD Intelligent Light and Audible Warning Fixed Eyeball Network Camera, 2.8mm

The Uniview IPC3615SB-ADF28KMC-I0 is a 5MP fixed eyeball network camera with intelligent light and an audible warning speaker. It is the white version; the IPC3615SB-ADF28KMC-I0-BLACK is the same camera in black.

What the UNV-IPC3615SB-ADF28KMC-I0 is for

The 2.8 mm lens gives a 110.0° horizontal field of view, and Uniview's DORI distances are 63.0 m to detect and 6.3 m to identify. Dual light combines 850 nm IR and warm light, each to 30 m.

A built-in microphone and speaker support two-way audio, and smart intrusion prevention classifies human, non-motor vehicle and vehicle targets. It is rated IP67 and works from -30°C to 60°C.

Key features

• 5MP, 1/2.7" CMOS sensor, 120 dB WDR
• Fixed 2.8 mm lens, 110.0° horizontal view
• Dual light: IR and warm light to 30 m each
• Built-in microphone and speaker, two-way audio
• Smart intrusion prevention with human/vehicle classification
• IP67, PoE (802.3af) or 12 V DC, max 7.5 W, microSD up to 512 GB

Full specification

What you will need

Supply PoE (IEEE 802.3af) from a PoE switch or an NVR's built-in PoE ports, or 12 V DC; maximum draw is 7.5 W. Use a network cable for the run. For recording, add a compatible NVR or a microSD card of up to 512 GB, with surveillance hard drives in the recorder. None of these is supplied.

Buying from Zenith Security Co.

We are a supplier, not an installer. We will go through the UNV-IPC3615SB-ADF28KMC-I0 with you before you buy — the lens and coverage, how to power it and which recorder suits it — and depending on your requirements and your area we can recommend a qualified trade installer. We have been operating since 2012 and you can visit our trade counter in Wolverhampton.

Does the UNV-IPC3615SB-ADF28KMC-I0 have a speaker?

Yes, it has a built-in speaker and microphone and supports two-way audio.

Is there a black version of the UNV-IPC3615SB-ADF28KMC-I0?

Yes, the IPC3615SB-ADF28KMC-I0-BLACK shares the same specification in a black housing.

Is the UNV-IPC3615SB-ADF28KMC-I0 PoE?

Yes, PoE (IEEE 802.3af) or DC 12 V ±25%, up to 7.5 W.

Is this a trade-price product?

Yes. Uniview products are supplied at trade prices to approved trade customers, so the price is shown once you are logged in to a trade account. Call 01902 902251 or see our trade customer page to open an account.

How quickly can I get it?

We ship nationally from our multi-million pound warehouse, with orders leaving daily. Orders placed before 2:30pm are normally dispatched for delivery within 1–2 working days to England, Scotland and Wales. You can also collect in store from our trade counter — call first so we can confirm your order is ready. We do not ship to Northern Ireland.

Can I collect or see one before buying?

Yes. Our trade counter is at Unit 3, Park View Centre, 243 Dudley Road, Wolverhampton WV2 3JU. Call first so we can confirm the item is there for you.

Questions on specification or compatibility: call 01902 902251, see our FAQ and support pages, or contact us. Trade accounts are available — see trade customers. Browse the full Uniview range.
