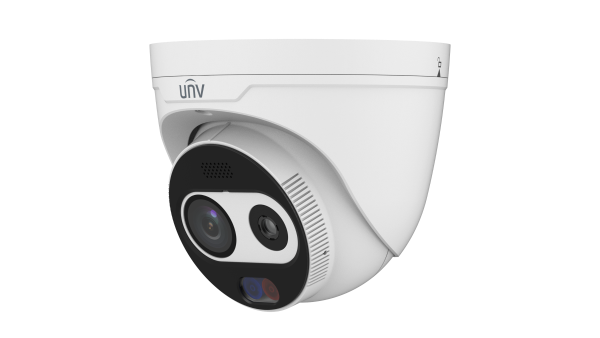

UNIVIEW - UNV-TIC3612SA-F7-4F6AC-I1 - Thermal and 4MP Optical Turret Network Camera, 6 mm Optical Lens
Product Features
Uniview TIC3612SA-F7-4F6AC-I1 thermal turret network camera with a 4MP optical channel, 6 mm optical lens, IR to 30 m and Smart Intrusion Prevention. PoE (802.3af) or 12 V DC, IP67. Recorder and microSD card not included.
UNV-TIC3612SA-F7-4F6AC-I1 — Thermal and 4MP Optical Turret Network Camera, 6 mm Optical Lens
The Uniview TIC3612SA-F7-4F6AC-I1 is a thermal network turret camera with a 4MP optical channel and a 6 mm optical lens, powered by PoE.
What the UNV-TIC3612SA-F7-4F6AC-I1 is for
The TIC3612SA-F7-4F6AC-I1 pairs a thermal channel with a 4MP optical channel in a turret housing. The figures Uniview publishes are for the optical channel: a 6 mm lens with a 49.1° horizontal view, IR to 30 m, and DORI distances of 135.0 m to detect and 13.5 m to identify.
Uniview lists Smart Intrusion Prevention with human and vehicle classification and smoke detection. It is rated IP67 with a working range of -40°C to 70°C. Thermal resolution and thermal lens details are not given in the specification we hold, so ask us before you rely on them.
Key features
- Thermal network turret camera with a 4MP optical channel
- Optical lens 6 mm, 49.1° horizontal field of view
- IR to 30 m (750 nm)
- DORI detect 135.0 m, identify 13.5 m (optical)
- Smart Intrusion Prevention and smoke detection
- PoE (802.3af) or 12 V DC, max 12 W; IP67; -40°C to 70°C
Full specification
| General | |
| Channel | Optical |
| Camera | |
| Max Resolution | 4 MP |
| Sensor | 1/2.8" CMOS |
| Min. Illumination | Colour: 0.003 lux (F1.6, AGC ON) B/W: 0.002lux(F1.6,AGC ON) 0 lux with IR |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 to 1/100000 s |
| WDR | 120 dB |
| S/N | >56 dB |
| Lens | |
| Focal Length | 6.0 mm |
| Iris | F1.6 |
| Field of View (H) | 49.1° |
| Field of View (V) | 26.9° |
| Field of View (D) | 60.4° |
| DORI | |
| DORI Distance (Detect) | 135.0 m |
| DORI Distance (Observe) | 54.0 m |
| DORI Distance (Recognize) | 27.0 m |
| DORI Distance (Identify) | 13.5 m |
| Illuminator | |
| Wavelength | 750 nm |
| Illumination Distance (IR) | 30 m |
| Light On/Off Control | Auto/Manual |
| Video | |
| Frame Rate | 4MP(2688*1520), Max 30fps |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Video Bit Rate | 128 Kbps to 16 Mbps |
| U-code | Support |
| ROI | Support |
| Video Stream | Triple streams |
| OSD | Up to 8 OSDs |
| Privacy Mask | Up to 8 areas (8 blacks/ 8 mosaics) |
| Image | |
| Digital Noise Reduction | 2D/3D DNR |
| Defog | Digital defog |
| Intelligent | |
| Smart Intrusion Prevention | Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) |
| Smoke Detection | Support |
| Events | |
| Basic Detection | Motion detection, Tampering alarm, Audio detection |
| General Function | Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication, Alarm input, Alarm output |
| Audio | |
| Audio Compression | G.711U, G.711A |
| Audio Bitrate | 128 Kbps |
| Two-way Audio | Support |
| Suppression | Support |
| Sampling Rate | 16KHZ |
| Storage | |
| Edge Storage | MicroSD, up to 512 GB |
| Network Storage | ANR |
| Network | |
| Protocols | IGMP, RTP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS, SSH |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API, SDK |
| User/Host | Up to 32 users. 3 user levels: administrator, common user and operator |
| Client | EZStation, UNV-Link, UNV-Link Pro |
| Web Browser | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+ |
| Interface | |
| Built-in Mic | Support |
| Built-in Speaker | Support |
| Audio I/O | 1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2 V [p-p] |
| Alarm I/O | 2/2 |
| Serial Port | 1 × RS485 |
| Network | 1 × RJ45 10 M/100 M Base-TX Ethernet |
| General | |
| Power | DC12V(±25%), PoE(IEEE802.3af) |
| Power Consumption | Max 12W |
| Power Interface | Ø5.5 mm coaxial power plug |
| Dimensions | Ø129 x 114 mm(Ø x H) |
| Weight | 0.73 kg |
| Working Environment | -40 °C to 70 °C, Humidity: ≤ 95% RH (non-condensing) |
| Storage Environment | -40 °C to 70 °C, Humidity: ≤ 95% RH (non-condensing) |
| Surge Protection | 6 KV |
| Reset Button | Support |
| RTC | Support |
| Certification | |
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
| Protection | IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) |
| Live View | |
| Maximum Bitstream | 35 |
| Maximum Bandwidth | 50 Mbps |
| OSD Font | Vector |
| OSD Color | Support |
| OSD Character Number | 40 |
| Other | |
| Corridor Mode | Support |
What you will need
Supply PoE (IEEE 802.3af) from a PoE switch or an NVR's PoE ports, or 12 V DC through the Ø5.5 mm plug; maximum draw is 12 W. Use network cable for the run. For recording, add a compatible NVR or a microSD card of up to 512 GB. Neither is supplied.
Buying from Zenith Security Co.
We are a supplier, not an installer. We will go through the UNV-TIC3612SA-F7-4F6AC-I1 with you before you buy — the 6 mm optical lens, detection distances, and how to power and record from it — and depending on your requirements and your area we can recommend a qualified trade installer. We have been operating since 2012 and you can visit our trade counter in Wolverhampton.
What lens does the TIC3612SA-F7-4F6AC-I1 have?
The optical channel has a 6 mm lens with a 49.1° horizontal field of view. Thermal lens details are not in the specification we hold.
How far can the TIC3612SA-F7-4F6AC-I1 see?
Uniview's optical DORI figures are 135.0 m to detect and 13.5 m to identify. IR reaches 30 m.
Is the TIC3612SA-F7-4F6AC-I1 PoE?
Yes, IEEE 802.3af PoE or DC 12 V ±25%, maximum 12 W.
Is the TIC3612SA-F7-4F6AC-I1 suitable for outdoor use?
Yes, it is rated IP67 with a working range of -40°C to 70°C.
Is this a trade-price product?
Yes. Uniview products are supplied at trade prices to approved trade customers, so the price is shown once you are logged in to a trade account. Call 01902 902251 or see our trade customer page to open an account.
How quickly can I get it?
We ship nationally from our multi-million pound warehouse, with orders leaving daily. Orders placed before 2:30pm are normally dispatched for delivery within 1–2 working days to England, Scotland and Wales. You can also collect in store from our trade counter — call first so we can confirm your order is ready. We do not ship to Northern Ireland.
Can I collect or see one before buying?
Yes. Our trade counter is at Unit 3, Park View Centre, 243 Dudley Road, Wolverhampton WV2 3JU. Call first so we can confirm the item is there for you.
Questions on specification or compatibility: call 01902 902251, see our FAQ and support pages, or contact us. Trade accounts are available — see trade customers. Browse the full Uniview range.
| Product Code | UNV-TIC3612SA-F7-4F6AC-I1 |
|---|---|
| Manufacturer | Uniview |
| Colour | White |
| Max Resolution | 4MP |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Min. Illumination | Colour: 0.003 lux (F1.6, AGC ON) B/W: 0.002lux(F1.6,AGC ON) 0 lux with IR |
| WDR | 120 dB |
| Lens Type | Fixed |
| Max. IR Range | Up to 30 m |
| Protection Level, Ingress Protection | IP67 |
| Operating Temperature | -40°C to 70°C |
| Local Storage | MicroSD, up to 512 GB |
| Indoor/Outdoor | Indoor / Outdoor |
