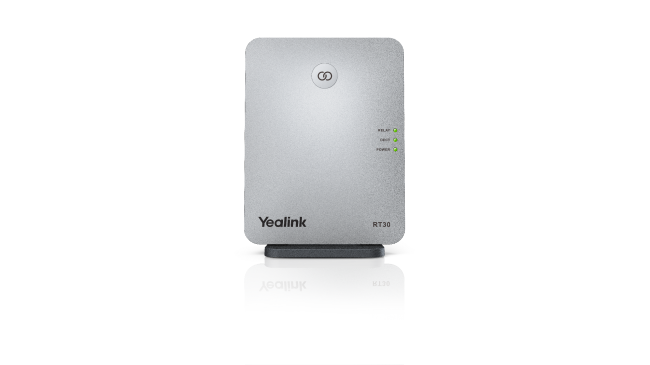

Yealink RT30 - DECT Repeater for Yealink W60B, W70B and W52 DECT IP Base Stations
Product Features
The Yealink RT30 is a DECT repeater that extends the radio coverage of a compatible Yealink DECT IP base station, with up to 4 simultaneous calls per repeater and three status LEDs. Yealink lists it as compatible with the W60B, W70B and W52 base stations, subject to minimum firmware versions. Check your base station model and firmware before ordering, or call us.
RT30 - DECT Repeater for Yealink DECT IP Base Stations
The Yealink RT30 is a DECT repeater designed to extend the cordless coverage of a compatible Yealink DECT IP phone system. It works with the Yealink W60B, W70B and W52 base stations, so VoIP handsets can be used across a wider area than the base station covers on its own.
What the RT30 is for
A DECT IP base station only reaches so far, and walls and metal structures reduce the range. The RT30 repeats the signal so that cordless VoIP handsets keep a connection further from the base, in one direction or in all directions. Yealink states that calls hand over automatically between the repeater and the base station while a handset moves around.
Key features
- Extends DECT coverage for compatible Yealink W60B, W70B and W52 base stations
- Up to 4 simultaneous calls per repeater, with the firmware versions listed below
- Up to 6 repeaters per base station in a star layout
- Up to 2 repeaters in cascade when used with a W60B or W70B
- Automatic handover of calls between the repeater and base station
- Auto association and plug and play setup
- HD voice
- Three status LEDs for power, DECT link and active relay
- Desktop or wall mounting, powered by the supplied USB cable and power adapter
Full specification
| General | |
| Model | RT30 |
| Manufacturer part number (MPN) | RT30 |
| Type | DECT repeater |
| Compatible base stations | Yealink W60B, W70B and W52 DECT IP base stations (minimum firmware: W60B 77.81.0.35, W70B 146.85.0.15, W52 25.81.0.10) |
| Simultaneous calls | Up to 4 per repeater (requires W70B firmware 146.85.0.35 or later and RT30 firmware 83.0.0.22 or later) |
| Repeaters per base station | Up to 6 (star connection) |
| Cascade | Up to 2 repeaters in cascade, only when connected to a W60B or W70B |
| Voice and setup | HD voice, auto association, plug and play setup, base link reset |
| Radio | |
| Indoor range | Up to 50 m in ideal conditions |
| Outdoor range | Up to 300 m in clear view and ideal conditions |
| Antennas | 2 internal QWL omnidirectional antennas |
| Modulation | GFSK |
| Radio frequency range | 1880 MHz to 1900 MHz (EU); 1920 MHz to 1930 MHz (US); 1902 MHz to 1906 MHz (TH); 1910 MHz to 1920 MHz (BR) |
| Transmission power | Average 10 mW |
| RX sensitivity | Typically -91 dBm |
| Physical and power | |
| Mounting | Desktop or wall mountable |
| Status LEDs | 3 LEDs: Power, DECT link and Relay (active relay) |
| Power supply | AC 100-240 V input, DC 5 V / 600 mA output |
| Power connection | Micro USB port, supplied USB cable and power adapter |
| Dimensions (W x H x T) | 130 mm x 100 mm x 25.1 mm |
| Operating temperature | 0 to 40 °C (32 to 104 °F) |
| Relative humidity | 5% to 90%, non-condensing |
| Storage temperature | -30 to 70 °C (-22 to 160 °F) |
| Package | |
| Package contents | RT30, USB cable, power adapter, user guide (the user guide also shows a base stand) |
| Giftbox size | 174 mm x 180 mm x 63 mm |
| Carton | 10 pieces; 375 mm x 336 mm x 187 mm; N.W. 3.2 kg; G.W. 3.7 kg |
What you will need
You need a compatible Yealink DECT IP base station: Yealink lists the W60B, W70B and W52, each with a minimum firmware version shown in the table above. Placement matters: Yealink advises keeping the repeater away from microwave ovens, Wi-Fi equipment and computers, and keeping at least 10 metres between repeaters. The ranges quoted are for ideal conditions, and indoor range is lower than outdoor range. Check your base station model and firmware before ordering, or call us.
Buying from Zenith Security Co.
Zenith Security Co is a UK supplier, not an installer. We will go through the product with you before you buy, and you can collect from our trade counter in Wolverhampton. We have been operating since 2012. See more Yealink products and the wider VoIP phone accessories range.
Which base stations does the Yealink RT30 work with?
Yealink lists the RT30 as compatible with the W60B, W70B and W52 DECT IP base stations, subject to minimum firmware versions. Call us if you are unsure which base station or firmware you have.
How many RT30 repeaters can I use?
Yealink states up to 6 repeaters per base station in a star layout, and up to 2 in cascade when connected to a W60B or W70B.
How quickly can I get it?
Orders placed before 2:30pm are normally dispatched for delivery within 1–2 working days to England, Scotland and Wales. You can also collect in store from our trade counter - call first so we can confirm your order is ready. We do not ship to Northern Ireland.
Can I collect it from your trade counter?
Yes. Our trade counter is at Unit 3, Park View Centre, 243 Dudley Road, Wolverhampton WV2 3JU. Please call 01902 902251 first so we can confirm your order is ready.
Do you offer trade accounts?
Yes, trade accounts are available. See our trade customer page for details.
Questions on specification or compatibility: call 01902 902251, see our FAQ and support pages, or contact us.
