Yealink W80DM - DECT Manager for W80 IP Multi-Cell DECT System, W80B Base Stations and Handsets
Product Features
The Yealink W80DM is the DECT Manager for the W80 DECT IP multi-cell system, managing up to 30 W80B base stations and up to 100 handsets with seamless handover. It has one 10/100 Ethernet port and can be powered by PoE (IEEE 802.3af) or an optional adapter. Check before ordering: base stations and handsets are sold separately, and Yealink lists minimum handset firmware versions.
W80DM - DECT Manager for the Yealink W80 IP Multi-Cell DECT System

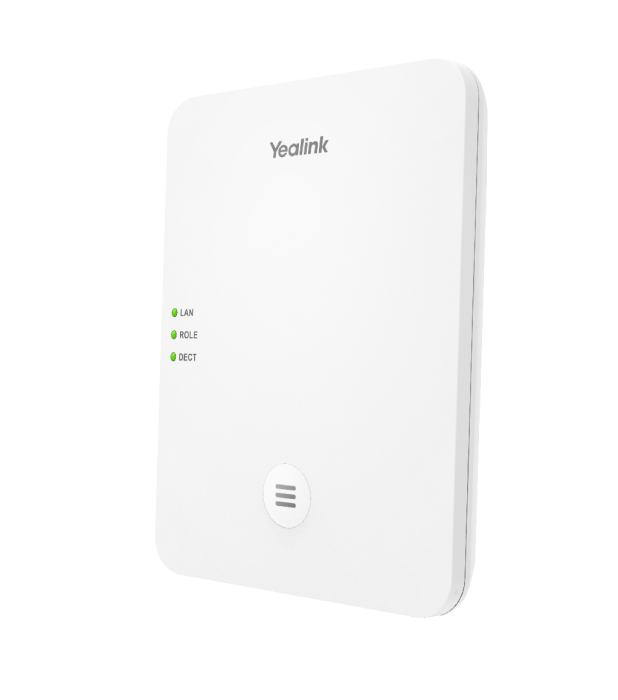

The Yealink W80DM is the DECT Manager unit of the W80 DECT IP multi-cell system. It is the management point for a group of W80B base stations: Yealink says the system networks one W80DM with up to 30 W80B base stations, so a site can be covered by several DECT cells and not just one base. Handsets can roam and hand over between cells. It is a network device for your DECT and wireless IP phone installation, not a handset.
What the W80DM is for
A single base station only covers the area around it. In a warehouse, a school, a hotel or a multi-floor office, you need several base stations that work together. The W80DM provides the central role in that set-up: Yealink states that it lets you configure and manage the whole multi-cell system from the DECT Manager web portal. The W80DM is shipped as the DECT Manager and the W80B is shipped as a base station, so you choose the right unit for each role. At least one DECT Manager is needed per installation, and the W80B base stations and handsets are bought separately.
Key features
- Multi-cell DECT IP system: one W80DM with up to 30 W80B base stations
- Up to 100 parallel calls, up to 100 handsets and up to 100 SIP accounts
- Seamless handover and roaming between base stations
- Up to 8 wideband calls (4 active handsets) per base, as stated by Yealink
- Wideband audio with the G.722 codec; narrowband codecs include G.711, G.726, G.729 and iLBC
- SIP over UDP, TCP or TLS, with SRTP, HTTPS and DECT encryption
- Supports XML, LDAP and remote phonebook directories, plus Xsi directories
- Auto-provisioning by TFTP, FTP, HTTP, HTTPS, PnP and Yealink RPS
- 1 x 10/100 Ethernet port, with Power over Ethernet (IEEE 802.3af, Class 1) or an optional power adapter
- Wall mounting with the supplied expansion screws
Full specification
| General | |
| Brand | Yealink |
| Model | W80DM |
| Manufacturer part number (MPN) | W80DM |
| Type | DECT Manager for the W80 DECT IP multi-cell system |
| Technology | DECT |
| System capacity | |
| W80B base stations | Up to 30 per system |
| Handsets | Up to 100 |
| VoIP accounts | Up to 100 |
| Parallel calls | Up to 100 |
| Calls per base | Up to 8 wideband calls (4 active handsets); up to 8 narrowband calls |
| Calls per handset | Up to 2 simultaneous |
| Seamless handover and roaming | Yes (radio synchronisation) |
| DECT radio | |
| Frequency bands | 1880-1900 MHz (Europe), 1920-1930 MHz (US), 1902-1906 MHz (TH), 1910-1920 MHz (BR) |
| Range indoors | 20 to 50 m (50 m in ideal conditions) |
| Range outdoors | Up to 300 m (ideal conditions) |
| Audio and call features | |
| Wideband codecs | AMR-WB (optional), G.722 |
| Narrowband codecs | AMR-NB (optional), PCMU (G.711u), PCMA (G.711a), G.726, G.729, G.729A, iLBC |
| Audio processing | VAD, CNG, AGC, PLC, AJB, DTMF |
| Directories | Local directory (100 entries per handset), remote phonebook, LDAP, XML, Xsi (BroadSoft) |
| Call features | Call hold, call transfer, 3-way conference, call waiting, do not disturb, call forward (always/busy/no answer), voicemail, MWI, speed dial, caller ID with name and number |
| Network and security | |
| SIP | SIP v1 (RFC2543), v2 (RFC3261) |
| Transport | UDP, TCP, TLS |
| Addressing | Static IP or DHCP |
| VLAN | 802.1Q and 802.1P |
| Other network features | SNTP/NTP, 802.1x, LLDP, STUN client, proxy server support |
| Security | OpenVPN, TLS 1.0/1.1/1.2, HTTPS (server/client), SRTP, digest authentication, AES-encrypted configuration file, SHA256/SHA384/SHA512 |
| Management | |
| Provisioning | Auto-provisioning by TFTP, FTP, HTTP, HTTPS, PnP and RPS |
| Configuration | Web browser, phone or auto-provisioning |
| Handset firmware update | Over the air (OTA) |
| Troubleshooting | Trace packets and system log export |
| Interface and power | |
| Ethernet | 1 x RJ45 10/100 Mbps |
| Power over Ethernet | IEEE 802.3af, Class 1 |
| External power adapter | Optional Yealink adapter: input 100-240 V AC, output 5 V DC / 1.2 A |
| LEDs | 3 x LED: DECT, ROLE and LAN (power and network status) |
| Physical | |
| Mounting | Wall mount |
| Dimensions | 130 mm x 100 mm x 25.1 mm |
| Storage temperature | -30 to +70 °C |
| Box contents | W80DM, expansion screws, quick start guide, power adapter (optional) |
| Compliance | REACH; EU RoHS (per Yealink quick start guide) |
What you will need
The W80DM manages W80B base stations and compatible handsets, which are sold separately. Yealink's product page lists the W53H, W56H, CP930W and the DD Phone (T41S+DD10K) as supported devices, and the Yealink datasheet also lists the W57R, W59R, W73H, W78H and CP935W, each with a minimum firmware version. Check the datasheet firmware notes, or call us, before ordering handsets. You also need a SIP server or phone system for the accounts, and a network with a PoE (IEEE 802.3af) switch, or the optional Yealink power adapter. Yealink states its DECT products are not compatible with third-party DECT devices such as base stations and handsets.
Buying from Zenith Security Co.
We are a UK supplier, not an installer, and we will go through the product with you before you buy so that you order the right combination of manager, base stations and handsets. Our trade counter is in Wolverhampton and we have been operating since 2012. See more from Yealink in our range.
What is the difference between the W80DM and the W80B?
Yealink ships the W80DM as the DECT Manager and the W80B as a base station. The DECT Manager is the management unit for the multi-cell system, and the W80B base stations provide the DECT coverage cells.
How many base stations and handsets can the W80DM manage?
Yealink states up to 30 W80B base stations, up to 100 handsets and up to 100 SIP accounts per system.
How quickly can I get it?
Orders placed before 2:30pm are normally dispatched for delivery within 1–2 working days to England, Scotland and Wales. You can also collect in store from our trade counter - call first so we can confirm your order is ready. We do not ship to Northern Ireland.
Can I collect it from your trade counter?
Our trade counter is at Unit 3, Park View Centre, 243 Dudley Road, Wolverhampton WV2 3JU. Please call 01902 902251 first so we can confirm your order is ready.
Do you offer trade accounts?
Yes, trade accounts are available. See our trade customer page or call us.
Questions on specification or compatibility: call 01902 902251, see our FAQ and support pages, or contact us.
