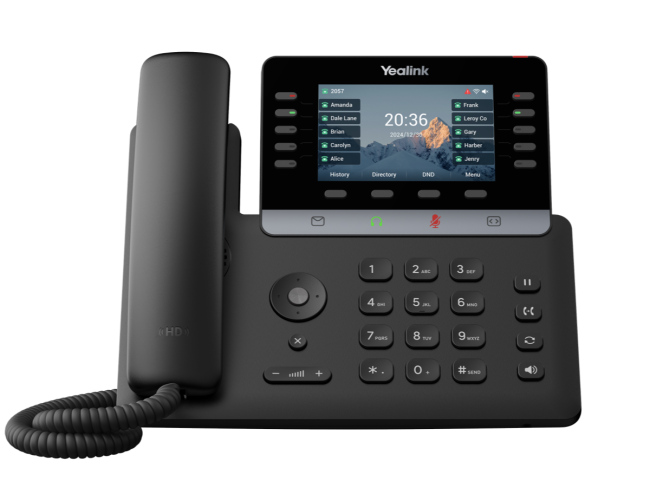

Yealink SIP-T74W - IP Phone, VoIP Desk Phone with Wi-Fi, Bluetooth 5.0 and PoE
Product Features
The Yealink SIP-T74W is a SIP IP desk phone with a 4.3-inch colour screen, 10 line keys, up to 16 SIP accounts, built-in dual-band Wi-Fi and Bluetooth 5.0, and dual Gigabit Ethernet with PoE. Yealink lists the power adapter as optional, so check the product page or call us to confirm what is supplied before ordering.
SIP-T74W - IP Phone and VoIP Desk Phone with Wi-Fi 6 and Bluetooth 5.0
The Yealink SIP-T74W is a SIP desk phone with a 4.3-inch colour screen, 10 line keys and support for up to 16 VoIP accounts. It has dual-port Gigabit Ethernet, built-in dual-band Wi-Fi (802.11a/b/g/n/ac/ax) and Bluetooth 5.0, plus a USB 2.0 port for headsets and expansion modules. Manufacturer part number: 1301010.
What the SIP-T74W is for
Yealink describes the T74W as a business phone for managers and professionals. It is a handset-and-speakerphone desk phone for a SIP-based voice system, with line keys and programmable DSS keys for busy call handling, and the option to add up to three EXP55 expansion modules. Bluetooth lets you pair a headset or a mobile phone, and the Wi-Fi radio gives a wireless network option alongside the wired Ethernet ports.
Key features
- 4.3-inch 480 x 272 colour LCD with dark and light themes
- Up to 16 SIP accounts and 10 LED line keys (up to 50 DSS keys over 5 pages)
- HD voice with Acoustic Shield, Smart Noise Filtering and a hearing aid compatible (HAC) handset with hall switch
- Built-in dual-band Wi-Fi (IEEE 802.11a/b/g/n/ac/ax) and Bluetooth 5.0
- Dual-port Gigabit Ethernet with IEEE 802.3af PoE (class 2)
- USB 2.0 port for a USB headset, USB flash drive recording and EXP55 expansion modules (up to 3)
- Headset jack and EHS40 wireless headset adapter support
- SRTP and TLS 1.3 encryption, 802.1X, secure boot, TEE hardware encryption and a dual system backup function
- Provisioning by browser, auto-provision, Yealink RPS and Yealink Device Management Platform (YDMP/YMCS)
- Stand with 2 adjustable angles; wall mountable with the optional wall mount bracket
Full specification
| General | |
| Brand | Yealink |
| Model | SIP-T74W |
| Manufacturer part number (MPN) | 1301010 |
| Phone type | Multifunctional SIP desk phone with colour screen |
| SIP accounts | Up to 16 VoIP accounts |
| Display and keys | |
| Screen | 4.3-inch LCD, 480 x 272 resolution |
| Line keys | 10 line keys with LEDs (up to 50 DSS keys over 5 pages) |
| Touch buttons | 4: message, headset, mute, pagination |
| Function keys | 4: call hold, call transfer, redial, hands-free; 2 volume keys; 6 navigation keys |
| Caller ID | Name, number and photo display |
| Themes | Dark and light themes |
| Audio | |
| HD voice | HD handset, HD speaker, hearing aid compatible (HAC) handset |
| Sound processing | Acoustic Shield, Smart Noise Filtering, full-duplex hands-free speakerphone with AEC |
| Wideband codecs | G.722; AMR-WB (optional) |
| Narrowband codecs | PCMU (G.711μ), PCMA (G.711A), G.723.1, G.729, G.729A, G.729B, G.729AB, G.726, iLBC; AMR-NB (optional) |
| DTMF | In-band, out-of-band (RFC 2833) and SIP INFO |
| Call features | |
| Telephony | Call hold, call forward, call waiting, call transfer, DND, auto answer, redial, call return, group listening, emergency call |
| Conferencing | 10-way conferencing |
| IP-PBX features | BLF, BLA, MWI, call park, call pickup, intercom, multicast, music on hold, call recording, anonymous call and rejection, visual voicemail interface |
| Directory | Local phonebook up to 1000 entries, blocklist, XML/LDAP remote phonebook, Google Contacts, call history |
| Connectivity | |
| Ethernet | Dual-port Gigabit Ethernet |
| Wi-Fi | Built-in dual-band Wi-Fi, IEEE 802.11a/b/g/n/ac/ax, 2.4 GHz and 5 GHz |
| Bluetooth | Built-in Bluetooth 5.0 (headset, mobile phone, PC peripheral) |
| USB | 1 x USB 2.0 (USB flash drive, USB headset, USB recording, EXP55 expansion modules, EHS40 wireless headset adapter, Yealink BT51 for Bluetooth headsets) |
| Expansion modules | Up to 3 EXP55 colour screen expansion modules (up to 234 programmable keys) |
| Other ports | RJ9 (4P4C) handset port, RJ9 (4P4C) headset jack, 5V power port, security keyhole |
| Network, management and security | |
| Protocols | IPv4/IPv6, SIP v1 (RFC2543) and v2 (RFC3261), UDP/TCP/DNS-SRV, STUN, static/DHCP |
| Provisioning and management | Browser, phone or auto-provision (FTP/TFTP/HTTP/HTTPS, PnP), TR-069, Yealink RPS, Yealink Device Management Platform (YDMP/YMCS) |
| Security | SRTP, TLS 1.3, 802.1X, OpenVPN, L2TP VPN, WPA2/WPA3, secure boot, AES256 configuration file encryption, TEE hardware encryption, dual system backup |
| QoS and VLAN | 802.1p/Q VLAN tagging, Layer 3 ToS DSCP, LLDP/CDP/DHCP VLAN |
| Power and physical | |
| PoE | IEEE 802.3af, class 2 |
| Power adapter | Optional: AC 100-240V input, DC 5V/2A output |
| USB output current | 5V/500mA |
| Power consumption | 1.30 W-1.50 W (power adapter); 1.516 W-1.824 W (PoE) |
| Dimensions (W x D x H x T) | 235.0 x 167.5 x 214.8 x 55.1 mm |
| Operating temperature and humidity | -10 to +45 °C; 5% to 90% humidity |
| Storage temperature | -30 to 70 °C |
| Mounting | Stand with 2 adjustable angles; wall mountable (wall mount bracket optional) |
| Package | |
| Package contents (manufacturer datasheet) | Yealink T74W IP phone, handset with handset cord, Ethernet cable (2 m CAT5E UTP), stand, quick start guide. Power adapter and wall mount bracket are listed as optional |
| Carton weight | 5 phones per carton: net 5.98 kg, gross 6.656 kg |
| Gift box size | 258 x 247 x 99 mm |
What you will need
A SIP phone system or service to register the phone with, and a network connection: either an IEEE 802.3af PoE switch or injector, or the optional Yealink power adapter (5V/2A). The manufacturer datasheet lists the power adapter and wall mount bracket as optional, so check the product page or call us to confirm what is supplied with this part number. For expansion modules and headsets, use the models Yealink names on its datasheet (EXP55, EHS40, BT51 and the listed Yealink headsets). Compatibility with your own phone system should be confirmed with your provider.
Buying from Zenith Security Co.
Zenith Security Co is a UK supplier, not an installer. We will go through the product with you before you buy, and you can collect from our trade counter in Wolverhampton. We have been operating since 2012. This phone is from the Yealink range; see all IP desk phones.
Does the Yealink SIP-T74W have Wi-Fi and Bluetooth?
Yes. Yealink lists built-in dual-band Wi-Fi (IEEE 802.11a/b/g/n/ac/ax, 2.4 GHz and 5 GHz) and built-in Bluetooth 5.0 for the T74W.
Can the SIP-T74W be powered over Ethernet?
Yes. It supports IEEE 802.3af PoE (class 2). Yealink lists a power adapter (5V/2A) as optional, so check the product page or call us before ordering if you need one.
How quickly can I get it?
Orders placed before 2:30pm are normally dispatched for delivery within 1–2 working days to England, Scotland and Wales. You can also collect in store from our trade counter - call first so we can confirm your order is ready. We do not ship to Northern Ireland.
Can I collect it from your trade counter?
Our trade counter is at Unit 3, Park View Centre, 243 Dudley Road, Wolverhampton WV2 3JU. Please call 01902 902251 first so we can confirm your order is ready.
Do you offer trade accounts?
Trade accounts are available. See our trade customer page or call us.
Questions on specification or compatibility: call 01902 902251, see our FAQ and support pages, or contact us.
