The Yealink SIP-T87W is a SIP IP desk phone with a 7-inch touch screen, built-in dual-band Wi-Fi and Bluetooth 5.0, dual Gigabit Ethernet and support for up to 16 VoIP accounts. Check before ordering: Yealink lists the power adapter and wall mount bracket as optional items, not in the box.

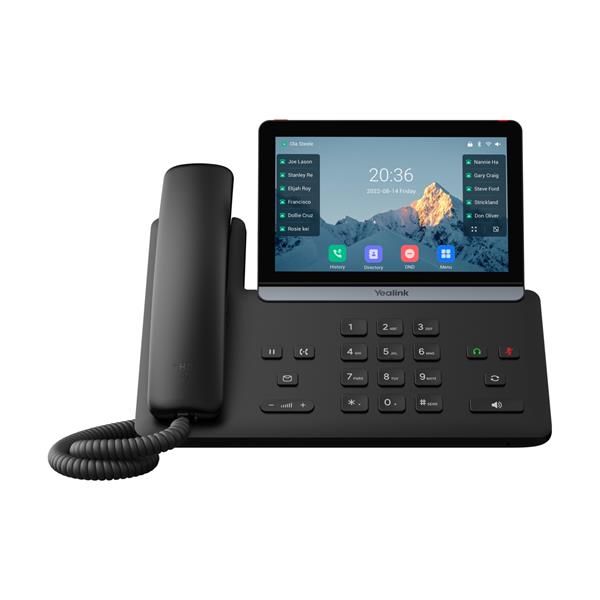

The Yealink SIP-T87W (also written Yealink T87W) is a Yealink IP phone and SIP VoIP desk phone with a 7-inch colour touch screen, dual Gigabit Ethernet ports and built-in dual-band Wi-Fi and Bluetooth 5.0. It supports up to 16 VoIP accounts and 84 one-touch DSS keys, with HD voice and Yealink's Acoustic Shield and AI noise cancellation.
This is an IP phone for a desk that handles a lot of calls and contacts, such as a manager, receptionist or assistant. The touch screen lets you reach lines, contacts and settings with a tap, the DSS keys give one-touch speed dial, and Bluetooth lets you pair a headset or a mobile phone. It works with SIP phone systems; check your platform's compatibility with us before you order.
| General | |
| Manufacturer | Yealink |
| Model | SIP-T87W |
| Type | IP desk phone with built-in Wi-Fi and Bluetooth 5.0 |
| Colour | Classic Grey |
| Display and indicators | |
| Screen | 7-inch, 800 x 480 capacitive adjustable touch screen |
| Indicators | LED for call and message waiting; dual-colour (red or green) illuminated LEDs for line status |
| Interface | Icons and soft keys, multilingual user interface, dark and light themes, wallpaper and screensaver |
| Caller ID | Name, number and photo |
| Accounts and keys | |
| VoIP accounts | 16 |
| DSS keys | 84 one-touch DSS keys (five pages) |
| Function keys | 7: Hold, Transfer, Message, Headset, Mute, Redial, Speakerphone; plus 2 volume buttons |
| Expansion | Supports colour-screen expansion modules; up to 3 can be cascaded for 234 programmable keys (per datasheet) |
| Audio | |
| HD voice | HD handset and HD speaker; hearing aid compatible (HAC) handset |
| Noise handling | Acoustic Shield, AI noise cancellation |
| Wideband codecs | AMR-WB (optional), G.722 |
| Narrowband codecs | AMR-NB (optional), PCMU (G.711u), PCMA (G.711A), G.723.1, G.729, G.729A, G.729B, G.729AB, G.726, iLBC |
| Handsfree | Full-duplex hands-free speakerphone with AEC; 3W speaker |
| DTMF | In-band, out-of-band (RFC 2833) and SIP INFO |
| Call features | |
| Call handling | Call hold, call forward, call waiting, call transfer, group listening, emergency call, redial, call return, auto answer |
| Conferencing | 10-way conferencing |
| IP-PBX features | BLF, BLA, anonymous call and rejection, MWI, voice messages, call parking, call pickup, intercom, multicast, music on hold, call recording, server-based recording |
| Directory | Local phonebook up to 1000 entries, blocklist, XML/LDAP remote phonebook, call history |
| Connectivity | |
| Ethernet | Dual-port Gigabit Ethernet |
| Wi-Fi | Built-in dual-band Wi-Fi: IEEE 802.11a/b/g/n/ac/ax, 2.4GHz and 5.0GHz |
| Bluetooth | Built-in Bluetooth 5.0 (headsets, mobile phone connection, PC peripheral) |
| USB | 2 x USB ports (USB-A and USB-C); USB flash drive, USB headset, expansion station |
| Other ports | 1 x RJ9 (4P4C) handset port, 1 x RJ9 (4P4C) headset port, 1 x 5V power port, 1 x security keyhole |
| Corded-cordless | Up to 4 DECT cordless handsets and 4 concurrent calls via DECT dongle DD10K (per datasheet) |
| Power | PoE, or optional external Yealink AC adapter (AC 100-240V input, DC 5V/2A output) |
| USB output current | 5V/1A |
| Power consumption | PSU 2.77 W-2.96 W; PoE 2.401 W-3.275 W |
| Network and security | |
| Protocols | IPv4/IPv6, SIP v1 (RFC2543), v2 (RFC3261), ICE, STUN, UDP/TCP/DNS-SRV, SNTP |
| Network | Static/DHCP, 802.1p/Q VLAN, Layer 3 ToS DSCP, LLDP/CDP/DHCP VLAN, OpenVPN, IEEE 802.1X, L2TP VPN |
| Security | TLS 1.3, TEE hardware encryption, WPA2/WPA3, Secure Boot, SRTP |
| Management | Browser, phone or auto-provision (FTP/TFTP/HTTP/HTTPS, PnP), BroadSoft device management, TR-069, Yealink Device Management Platform (YDMP/YMCS) |
| Physical and environment | |
| Dimensions (W x D x H x T) | 263.7 x 187.2 x 237.9 x 38.9 mm |
| Mounting | Adjustable desk stand; wall mountable (optional bracket) |
| Operating temperature | -10 to 45 degrees C |
| Storage temperature | -30 to +70 degrees C |
| Operating humidity | 10 - 95% |
| In the box (per datasheet) | |
| Package content | Yealink SIP-T87W IP phone, handset with handset cord, 2m CAT5E UTP Ethernet cable, stand, quick start guide. Power adapter and wall mount bracket are listed as optional. |
| Carton (3 phones) | N.W. 5.04 kg, G.W. 5.518 kg; carton 324 x 275 x 305 mm; gift box 290 x 268 x 104 mm |
A SIP account or IP phone system to register the phone to, and a network connection. The phone supports PoE; if your switch does not provide it, Yealink lists an external AC adapter (5V/2A) as an optional item and it is not listed in the box contents. A wall mount bracket is also listed as optional. For expansion modules, headsets, the DECT dongle DD10K or other accessories, check Yealink's product page or call us before ordering so we can confirm what suits your setup.
Zenith Security Co is a UK supplier, not an installer. We will go through the product with you before you buy. You can find us at our trade counter in Wolverhampton, and we have been operating since 2012. See more from Yealink and our IP desk phones.
Yes. Yealink lists built-in dual-band Wi-Fi (IEEE 802.11a/b/g/n/ac/ax, 2.4GHz and 5.0GHz) and built-in Bluetooth 5.0.
The phone supports PoE. Yealink lists the power adapter as optional and it is not in the box contents, so check your switch or call us if you are unsure.
Orders placed before 2:30pm are normally dispatched for delivery within 1–2 working days to England, Scotland and Wales. You can also collect in store from our trade counter - call first so we can confirm your order is ready. We do not ship to Northern Ireland.
Our trade counter is at Unit 3, Park View Centre, 243 Dudley Road, Wolverhampton WV2 3JU. Please call 01902 902251 first so we can confirm your order is ready.
Yes, trade accounts are available. See our trade customer page.
Questions on specification or compatibility: call 01902 902251, see our FAQ and support pages, or contact us.
