UNIVIEW - IPS302030-S - 30 W Network IP Horn Speaker

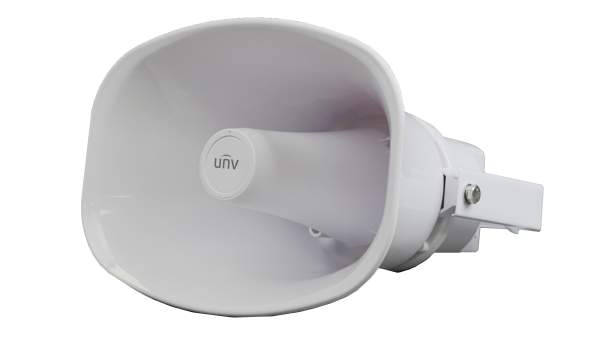

IPS302030-S — 30 W Network IP Horn Speaker

The Uniview IPS302030-S is a 30 W network horn speaker that connects over Ethernet, with a maximum sound pressure of 130 dBSPL, a built-in microphone and an IP66 housing.

What the IPS302030-S is for

It is for broadcasting announcements, alarm messages and live speech over an IP network, for example to deter intruders when a camera event triggers. Uniview lists regular, live and alarm broadcast, two-way audio and SIP, ONVIF, RTSP and RTP integration.

Up to 100 audio files (MP3 or WAV, 64 MB storage) can be held on the speaker. It has 2 alarm inputs and an RCA audio input for sound amplification (not intercom). The ABS housing is rated IP66 and works from -30°C to 55°C.

Key features

• 30 W rated power, 130 dBSPL maximum, 300 Hz to 12.5 kHz
• Built-in microphone, two-way audio
• Regular, live and alarm broadcast; MP3/WAV files, 64 MB storage
• ONVIF, SIP, LAPI, RTSP, RTP
• Power: PoE (IEEE 802.3at), DC 24 V/1.4 A, DC 12 V/2.5 A
• IP66, -30°C to 55°C; NDAA compliance listed

Full specification

What you will need

Power it from a PoE+ (IEEE 802.3at) port on a PoE switch, or a local DC supply (DC 24 V/1.4 A, DC 12 V/2.5 A). Run network cable to the RJ45 10/100 Mbps port. Uniview IQ recorders list IP speaker support; see our NVRs.

Buying from Zenith Security Co.

We are a supplier, not an installer. We will go through the IPS302030-S with you before you buy — where it will be mounted, how it will be triggered and how it is powered — and depending on your requirements and your area we can recommend a qualified trade installer. We have been operating since 2012 and you can visit our trade counter in Wolverhampton.

How loud is the IPS302030-S?

Rated power is 30 W with a maximum sound pressure of 130 dBSPL.

How is the IPS302030-S powered?

PoE+ (IEEE 802.3at), DC 24 V/1.4 A or DC 12 V/2.5 A.

Is the IPS302030-S weatherproof?

It is rated IP66, with a working range of -30°C to 55°C.

Can the IPS302030-S play recorded messages?

Yes. It stores up to 100 audio files (MP3 or WAV, 2 KB to 10 MB each, 64 MB in total), including built-in files.

Is this a trade-price product?

Yes. Uniview products are supplied at trade prices to approved trade customers, so the price is shown once you are logged in to a trade account. Call 01902 902251 or see our trade customer page to open an account.

How quickly can I get it?

We ship nationally from our multi-million pound warehouse, with orders leaving daily. Orders placed before 2:30pm are normally dispatched for delivery within 1–2 working days to England, Scotland and Wales. You can also collect in store from our trade counter — call first so we can confirm your order is ready. We do not ship to Northern Ireland.

Can I collect or see one before buying?

Yes. Our trade counter is at Unit 3, Park View Centre, 243 Dudley Road, Wolverhampton WV2 3JU. Call first so we can confirm the item is there for you.

Questions on specification or compatibility: call 01902 902251, see our FAQ and support pages, or contact us. Trade accounts are available — see trade customers. Browse the full Uniview range.
