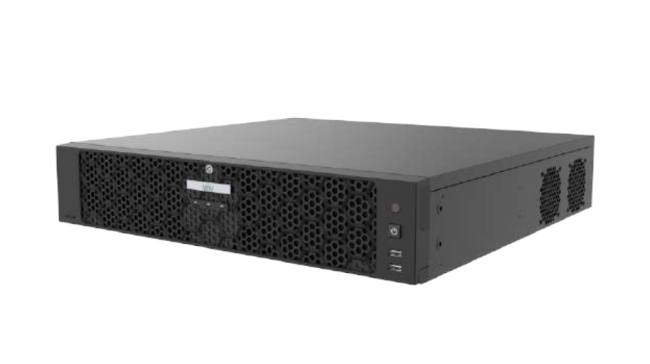

UNIVIEW - UNV-NVR508-64E-R-IQ - 64-Channel 8-Bay NVR with RAID and Redundant Power
Product Features
Uniview NVR508-64E-R-IQ 64-channel 2U NVR with 8 SATA bays (up to 16 TB each), RAID 0/1/5/6/10, hot swap, redundant power support and NVR-side smart detection. Hard drives not included.
UNV-NVR508-64E-R-IQ — 64-Channel 8-Bay NVR with RAID and Redundant Power
The Uniview NVR508-64E-R-IQ is a 64-channel, 2U network video recorder with 8 SATA bays, RAID 0, 1, 5, 6 and 10, hot swap and redundant power supply support.
What the UNV-NVR508-64E-R-IQ is for
It suits larger IP camera systems that need resilient storage and searchable footage. Incoming and outgoing bandwidth are each 384 Mbps with Smart Off (200 Mbps with Smart On), and it decodes Ultra 265, H.265 and H.264 at up to 32 MP.
The IQ model adds analysis by the recorder itself: face detection, SIP on up to 8 channels and UMD on up to 16 channels, plus SmartSearch+ and AcuSearch. It has two HDMI (up to 4K at 60 Hz) and two VGA outputs and two gigabit network ports.
Key features
- 64 IP video input channels, recording up to 32 MP
- 8 SATA interfaces, up to 16 TB per drive, hot swap
- RAID 0, 1, 5, 6 and 10 with redundant storage
- Smart by NVR: face detection, SIP (8-ch), UMD (16-ch)
- Redundant power supply support, AC 100 to 240 V
- 2 × gigabit RJ45, 16 alarm in, 10 alarm out, eSATA
Full specification
| Decoding | |
| Decoding Format | Ultra 265, H.265, H.264 |
| Decoding Capability | Smart Off: 2 × 32MP@30, 4 × 16MP@30, 5 × 12MP@30, 8 × 4K@30, 10 × 6MP@30, 12 × 5MP@30, 16 × 4MP@30, 20 × 3MP@30, 32 × 1080P@30, 64 × 720P@30. Smart On: 1 × 32MP@30, 3 × 16MP@30, 4 × 12MP@30, 6 × 4K@30, 8 × 6MP@30, 9 × 5MP@30, 12 × 4MP@30, 16 × 3MP@30, 24 × 1080P@30, 48 × 720P@30 |
| Decoding Note | Each channel's resolution cannot exceed 8192 pixels in length or width |
| Audio Compression | G.711A, G.711U |
| Network | |
| Incoming Bandwidth | Smart Off: 384 Mbps; Smart On: 200 Mbps |
| Outgoing Bandwidth | Smart Off: 384 Mbps; Smart On: 200 Mbps |
| Remote Users | 128 |
| Protocols | TCP/IP, P2P, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, NFS, RTSP, 802.1x, IPv6, IPv4 |
| Browser (Plugin) | Windows: IE10/11, Firefox 52+, Chrome 45+, Edge 79+ |
| Video/Audio Input | |
| IP Video Input | 64-ch |
| RCA Audio Input | 1-ch |
| Video/Audio Output | |
| HDMI Output | 4K (3840 × 2160)/60 Hz, 4K/30 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz |
| VGA Output | 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz |
| RCA Audio Output | 2-ch |
| Liveview Display | HDMI1 and VGA1: 1/4/6/8/9/16/25/36/64; HDMI2 and VGA2: 1/4/6/8/9/16 |
| Corridor Mode Screen | HDMI1 and VGA1: 3/4/5/7/9/10/12/16/32; HDMI2 and VGA2: 3/4/5/7/9/10/12/16 |
| Two-way Audio | 1-ch, RCA (using the audio input and output) |
| FTP/Schedule/Event Snapshot | 16-ch snapshot, up to 4K resolution |
| Recording Resolution | 32MP/16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080P/960P/720P/D1/2CIF/CIF |
| Smart | |
| VCA Detection by IPC | Face Detection, Vehicle Detection, SIP (Intrusion, Cross Line, Enter Area, Leave Area), UMD, Temperature Detection, People Counting, Video Metadata, Traffic Monitoring |
| Smart by NVR | Face Detection, Smart Intrusion Prevention (SIP), Ultra Motion Detection (UMD) |
| Smart by IPC | All channels (up to 16 images/s in total) |
| VCA Search | Motor Vehicle, Non-Motor Vehicle, Human Body, General Search, People Counting Report, Heat Map, SmartSearch+, AcuSearch |
| Vehicle Picture Library | Up to 5 libraries, up to 25,000 vehicle pictures in total |
| SIP by NVR | 8-ch |
| UMD by NVR | 16-ch |
| Capacity of Snapshot Records | 3 million face, 2 million vehicle, 2 million SIP, 2 million video metadata records |
| Alarm | |
| General Alarm | Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion Detection, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection |
| Alert Alarm | IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal, Array Damaged, Array Degraded |
| Hard Disk | |
| SATA | 8 SATA interfaces |
| Capacity | Up to 16 TB for each HDD (maximum capacity varies with environment temperature) |
| Disk Group | Support |
| Redundant Storage | Support |
| Disk Array Type | RAID 0, 1, 5, 6, 10 |
| Hot Swap | Support |
| External Interface | |
| Network Interface | 2 × RJ45 10/100/1000 Mbps self-adaptive |
| USB | Front panel: 2 × USB 2.0; Rear panel: 2 × USB 3.0 |
| RS485 | 1 |
| RS232 | 1 |
| Alarm In | 16-ch |
| Alarm Out | 10-ch |
| eSATA | 1 |
| Power Output | 12 V |
| Power Supply | AC 100 to 240 V |
| Redundant Power Supply | Support |
| Working Environment | |
| Working Temperature | -10°C to 50°C |
| Working Humidity | ≤ 90% RH (non-condensing) |
| Power Consumption (without HDD) | ≤ 20 W |
| Dimensions | |
| Weight (without HDD) | ≤ 6.5 kg |
| Height | 2U |
| Dimensions | 443 mm × 448 mm × 93 mm |
| Certification | |
| Certification | CE, FCC, UL, RoHS, WEEE |
| CE | EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035 |
| FCC | Part 15 Subpart B |
What you will need
Up to 64 IP cameras and a PoE switch to power them, as no PoE ports are listed, plus network cable. Add up to eight surveillance hard drives, which are not included. Power is AC 100 to 240 V.
Buying from Zenith Security Co.
We are a supplier, not an installer. We will go through the UNV-NVR508-64E-R-IQ with you before you buy — camera count, combined bitrate, RAID level and storage — and depending on your requirements and your area we can recommend a qualified trade installer. We have been operating since 2012 and you can visit our trade counter in Wolverhampton.
How many cameras does the NVR508-64E-R-IQ support?
64 IP channels, with 384 Mbps incoming bandwidth with Smart Off or 200 Mbps with Smart On.
What smart functions does the recorder run itself?
Face detection, SIP on up to 8 channels and UMD on up to 16 channels, with ordinary cameras.
What RAID levels does it support?
RAID 0, 1, 5, 6 and 10, with hot swap, disk groups and redundant storage.
Are hard drives included?
No. It has 8 SATA interfaces taking drives of up to 16 TB each.
Does it support a redundant power supply?
Yes, Uniview lists redundant power supply support. Power input is AC 100 to 240 V.
Is this a trade-price product?
Yes. Uniview products are supplied at trade prices to approved trade customers, so the price is shown once you are logged in to a trade account. Call 01902 902251 or see our trade customer page to open an account.
How quickly can I get it?
We ship nationally from our multi-million pound warehouse, with orders leaving daily. Orders placed before 2:30pm are normally dispatched for delivery within 1–2 working days to England, Scotland and Wales. You can also collect in store from our trade counter — call first so we can confirm your order is ready. We do not ship to Northern Ireland.
Can I collect or see one before buying?
Yes. Our trade counter is at Unit 3, Park View Centre, 243 Dudley Road, Wolverhampton WV2 3JU. Call first so we can confirm the item is there for you.
Questions on specification or compatibility: call 01902 902251, see our FAQ and support pages, or contact us. Trade accounts are available — see trade customers. Browse the full Uniview range.
| Product Code | UNV-NVR508-64E-R-IQ |
|---|---|
| Manufacturer | Uniview |
| Colour | Black |
| Max No. of Channels | 64 ch |
