UNIVIEW - UNV-NVR516-128 - 128-Channel 16-Bay 3U NVR with RAID
Product Features
Uniview NVR516-128 128-channel 3U rack NVR with 16 SATA bays (up to 10 TB each), RAID 0/1/5/6/10/50/60, 512 Mbps incoming bandwidth, 4 gigabit and 2 SFP ports. Hard drives not included.
UNV-NVR516-128 — 128-Channel 16-Bay 3U NVR with RAID

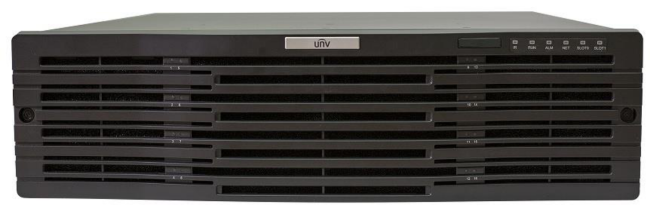

The Uniview NVR516-128 is a 128-channel network video recorder in a 19-inch 3U rack chassis, with 16 SATA drive bays and RAID up to level 60.
What the UNV-NVR516-128 is for
It is aimed at large sites with many IP cameras and high storage needs. Incoming bandwidth is 512 Mbps, recording runs up to 12 MP, and RAID 0, 1, 5, 6, 10, 50 and 60 are supported with hot swap and N+1 hot spare. Two miniSAS ports and an eSATA port allow storage expansion.
Networking is four gigabit RJ45 ports and two 1000M SFP ports. Video output is two HDMI (up to 4K at 30 Hz) and one VGA, all independent, and two optional decoding cards add up to 12 HDMI outputs.
Key features
- 128 IP video input channels, recording up to 12 MP
- 16 SATA interfaces, up to 10 TB per drive, plus 2 miniSAS and eSATA
- RAID 0, 1, 5, 6, 10, 50 and 60 with hot swap and N+1 hot spare
- 512 Mbps incoming bandwidth, 128 remote users
- 4 × gigabit RJ45 and 2 × 1000M SFP
- 2 × HDMI and 1 × VGA independent outputs; redundant PSU optional
Full specification
| Video/Audio Input | |
| IP Video Input | 128-ch |
| Two-way Audio Input | 1-ch, BNC |
| Network | |
| Incoming Bandwidth | 512 Mbps |
| Outgoing Bandwidth | 384 Mbps |
| Remote Users | 128 |
| Protocols | P2P, UPnP, NTP, DHCP, PPPoE |
| Compatibility | ONVIF Profile S, G, C, Q, A, T |
| Video/Audio Output | |
| VGA | 1920 × 1080p/60 Hz, 1920 × 1080p/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz |
| HDMI1/HDMI2 | 4K (3840 × 2160)/30 Hz, 1920 × 1080p/60 Hz, 1920 × 1080p/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz (no HDMI audio output) |
| Recording Resolution | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Audio Output | 1-ch, BNC |
| Synchronous Playback | 16-ch |
| Corridor Mode Screen | 3/4/5/7/9/10/12/16/32 |
| Decoding | |
| Decoding Format | Ultra 265, H.265, H.264 |
| Live View/Playback | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Capability | 4 × 12MP@20, 4 × 4K@30, 16 × 1080p@30, 36 × 720p@30, 64 × D1 |
| Hard Disk | |
| SATA | 16 SATA interfaces |
| Capacity | Up to 10 TB for each HDD |
| eSATA | 1 eSATA interface |
| miniSAS | 2 miniSAS ports |
| Array Type | RAID 0/1/5/6/10/50/60 |
| External Interface | |
| Network Interface | 4 × RJ45 10/100/1000 Mbps adaptive; 2 × 1000M SFP |
| Serial Interface | 1 × RS232, 1 × RS485 |
| USB | Rear panel: 4 × USB 3.0 |
| Alarm In | 24-ch |
| Alarm Out | 8-ch |
| Decoding Card (optional) | 2 slots (4-ch or 6-ch HDMI outputs per card) |
| Power Output | 12 V |
| General | |
| Power Supply | 100 to 240 V AC (second supply optional) |
| Power Consumption | ≤ 50 W (without HDD) |
| Working Environment | -10°C to +55°C, humidity ≤ 90% RH (non-condensing) |
| Chassis | 19-inch rack-mounted 3U |
| Dimensions | 482 mm × 477 mm × 131 mm |
| Weight (without HDD) | ≤ 10 kg |
What you will need
Up to 128 IP cameras and PoE switches to power them, as the recorder has no PoE ports, plus network cable and a 19-inch rack with 3U free. Add up to sixteen surveillance hard drives, which are not included. Power is 100 to 240 V AC.
Buying from Zenith Security Co.
We are a supplier, not an installer. We will go through the UNV-NVR516-128 with you before you buy — camera count, combined bitrate, RAID level and storage — and depending on your requirements and your area we can recommend a qualified trade installer. We have been operating since 2012 and you can visit our trade counter in Wolverhampton.
How many cameras does the NVR516-128 support?
128 IP channels, with 512 Mbps incoming bandwidth.
What RAID levels does it support?
RAID 0, 1, 5, 6, 10, 50 and 60, with HDD hot swap and N+1 hot spare.
Are hard drives included?
No. It has 16 SATA interfaces taking drives of up to 10 TB each, with two miniSAS ports and one eSATA port for expansion.
What is the highest recording resolution?
Up to 12 MP. Decoding capability is four 12 MP streams at 20 fps or four 4K streams at 30 fps.
Does the HDMI output carry audio?
No. Uniview states HDMI audio output is not supported; audio output is 1-ch BNC.
Is this a trade-price product?
Yes. Uniview products are supplied at trade prices to approved trade customers, so the price is shown once you are logged in to a trade account. Call 01902 902251 or see our trade customer page to open an account.
How quickly can I get it?
We ship nationally from our multi-million pound warehouse, with orders leaving daily. Orders placed before 2:30pm are normally dispatched for delivery within 1–2 working days to England, Scotland and Wales. You can also collect in store from our trade counter — call first so we can confirm your order is ready. We do not ship to Northern Ireland.
Can I collect or see one before buying?
Yes. Our trade counter is at Unit 3, Park View Centre, 243 Dudley Road, Wolverhampton WV2 3JU. Call first so we can confirm the item is there for you.
Questions on specification or compatibility: call 01902 902251, see our FAQ and support pages, or contact us. Trade accounts are available — see trade customers. Browse the full Uniview range.
| Product Code | UNV-NVR516-128 |
|---|---|
| Manufacturer | Uniview |
| Colour | Black |
| Max No. of Channels | 128 ch |
