Yealink W78P - Cordless DECT Phone System with W70B Base Station and W78H VoIP Handset
Product Features
The Yealink W78P is a DECT IP phone system supplied as a W70B base station with a W78H cordless handset and charger cradle. The base station supports up to 10 W78H handsets, up to 10 SIP accounts and up to 20 simultaneous calls, and the handset has a 2.4-inch colour screen, Bluetooth 5.1 and a 3.5 mm headset jack. Check before ordering: Yealink states its DECT technology is incompatible with third-party DECT devices, so handsets added later need to be Yealink W78H.

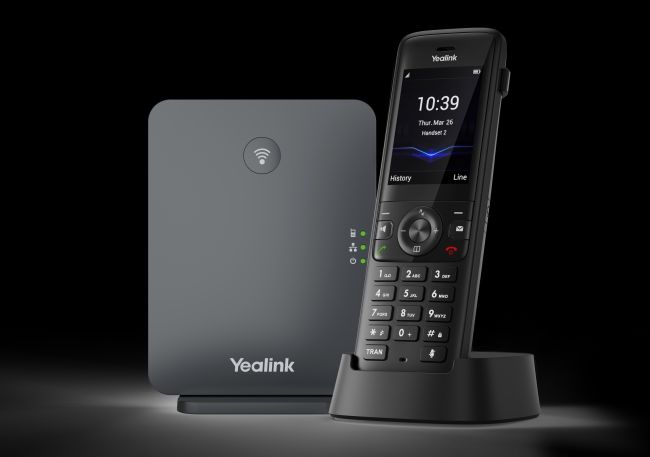

W78P - DECT IP Phone System with W70B Base Station and W78H Handset
The Yealink W78P is a cordless DECT phone system for VoIP and SIP calling, pairing a W70B DECT base station with a W78H handset. The base connects to your network over a single Ethernet port and registers up to 10 W78H handsets, with up to 10 SIP accounts and up to 20 simultaneous calls, so a small business can move from one VoIP handset to several without changing the base.
What the W78P is for
The W78P suits offices, shops and workshops where staff need to take SIP calls while they move around, rather than staying at a desk. The handset combines DECT cordless calling with SIP features such as call hold, call transfer, three-way conference, intercom and paging. It has a vibration alarm so calls are not missed in noisy areas, Bluetooth 5.1 for a wireless headset and a 3.5 mm jack for a wired one. Yealink gives up to 21 hours of talk time, and up to 166 hours of standby for the W78H (V0) or up to 320 hours (V1 to V4), in ideal conditions.
Key features
- W70B DECT base station and W78H handset with charger cradle in the box
- Registers up to 10 W78H DECT handsets, with up to 10 SIP accounts and up to 20 simultaneous calls (up to 2 per handset)
- 2.4-inch 240 x 320 TFT colour screen with backlit keypad
- Flexible Noise Reduction (noise cancellation) and wideband audio (G.722, AMR-WB optional)
- Bluetooth 5.1 and 3.5 mm headset jack on the handset; vibration alarm
- Quick charging: 10 minutes of charging for 2 hours of talk time
- TLS and SRTP encryption, with HTTPS, VLAN, 802.1x and LLDP support
- Zero-touch provisioning with Yealink RPS, plus OTA handset upgrade
- Up to 6 RT30 DECT repeaters per base station
- Maximum DECT range of 50 m indoors and 300 m outdoors in ideal conditions
- Base station powered by PoE (IEEE 802.3af, Class 1) or the included power adapter
Full specification
| General | |
| Manufacturer part number (MPN) | W78P |
| Brand | Yealink |
| System | W70B base station + W78H handset |
| Colour | Handset: black; base: classic grey |
| Capacity | |
| Handsets per base | Up to 10 |
| SIP accounts | Up to 10 |
| Simultaneous calls | Up to 20 (up to 2 per handset) |
| Repeaters | Up to 6 per base station (RT30) |
| Handset W78H | |
| Display | 2.4-inch 240 x 320 pixel TFT colour screen, LCD and key backlight |
| Keypad | Backlit, 25 keys including navigation keys, 2 softkeys, function keys and 3 side keys |
| Headset | Bluetooth 5.1; 3.5 mm headset jack |
| Alerts | Vibration alarm; 9 ringer melodies |
| Battery | 1010 mAh lithium-ion, 3.7 V (V0 to V3); 3 x 350 mAh lithium-ion, 3.7 V (V4) |
| Talk time | Up to 21 hours (ideal conditions) |
| Standby time | Up to 166 hours (V0); up to 320 hours (V1 to V4) (ideal conditions) |
| Quick charge | 10 minutes of charging for 2 hours of talk time |
| Size | 157 x 51 x 24 mm |
| Mounting | Desktop or wall mountable |
| Audio | |
| Speakerphone | Full-duplex; Hearing Aid Compatibility (HAC) compliant |
| Noise reduction | Flexible Noise Reduction (FNR) / noise cancellation |
| Wideband codecs | AMR-WB (optional), G.722 |
| Narrowband codecs | PCMU, PCMA, G.726, G.729, G.729A, iLBC |
| Call features | |
| Calling | Call hold, call transfer, 3-way conference, call waiting, mute, DND, paging, intercom, auto answer, dial plan |
| Forwarding | Always, busy, no answer |
| Phonebook | Local phonebook up to 1000 entries (stored in the base); remote phonebook, LDAP, XML phonebook |
| Call history | 100 entries per handset |
| BroadSoft | BroadSoft directory, call log, BroadWorks feature key synchronisation, Shared Call Appearance (SCA) |
| Base station W70B | |
| Network port | 1 x RJ45 10/100M Ethernet |
| Power | PoE (IEEE 802.3af, Class 1) or external Yealink AC adapter, input 100-240 V AC, output 5 V DC 600 mA |
| Indicators | Registration, network status and power LEDs |
| Size | 130 x 100 x 25.1 mm |
| Operating temperature | -10 to +45 C (base); 0 to 40 C (handset) |
| Operating humidity | 10 to 95% |
| Network and security | |
| Protocols | SIP v1 (RFC2543), v2 (RFC3261); UDP, TCP, TLS; SNTP/NTP; STUN; static or DHCP addressing |
| VLAN and QoS | VLAN (802.1Q and 802.1P), 802.1x, LLDP |
| Security | TLS, HTTPS, SRTP, digest authentication, AES-encrypted configuration file, OpenVPN |
| Provisioning | TFTP, FTP, HTTP, HTTPS, RPS, PnP; handset OTA upgrade |
| DECT | |
| Frequency band | 1880-1900 MHz (Europe); 1920-1930 MHz (US) |
| Range | 50 m indoors, 300 m outdoors (ideal conditions) |
| In the box | |
| Package contents | W78H handset with belt clip, W70B base station, charger cradle, rechargeable battery, base stand, Ethernet cable, decorative cover, quick start guide, two power adapters |
| Gift box size | 205 x 182 x 95 mm |
| Carton | 10 pieces; 502 x 378 x 215 mm; gross weight 7.546 kg |
What you will need
You need a SIP phone service or PBX to register the lines, and a network connection with a PoE switch or a spare mains socket for the base station. Yealink states that its DECT technology is incompatible with third-party DECT devices such as base stations and handsets, so any extra handsets should be Yealink W78H. Yealink lists the RT30 as the repeater for extending coverage. Whether the W78P works with your particular PBX or phone provider depends on that platform, so check with your provider or call us before ordering.
Buying from Zenith Security Co.
We are a UK supplier, not an installer, and have been operating since 2012. We will go through the product with you before you buy, and you can call in at our trade counter in Wolverhampton. Browse more from Yealink in our DECT and wireless IP phones range.
How many handsets can the Yealink W78P support?
Yealink states that the W78P base station can register up to 10 W78H DECT handsets, with up to 10 SIP accounts and up to 20 simultaneous calls.
Can I use other makes of DECT handset with the W78P?
Yealink states that its DECT technology is incompatible with third-party DECT devices, including base stations and handsets. Use Yealink W78H handsets with this system, or call us to check.
How quickly can I get it?
Orders placed before 2:30pm are normally dispatched for delivery within 1–2 working days to England, Scotland and Wales. You can also collect in store from our trade counter - call first so we can confirm your order is ready. We do not ship to Northern Ireland.
Can I collect it from your trade counter?
Yes. Our trade counter is at Unit 3, Park View Centre, 243 Dudley Road, Wolverhampton WV2 3JU. Please call 01902 902251 first so we can confirm your order is ready.
Do you offer trade accounts?
Trade accounts are available. See our trade customer page or call us to set one up.
Questions on specification or compatibility: call 01902 902251, see our FAQ and support pages, or contact us.
| Product Code | W78P |
|---|---|
| Manufacturer | Yealink |
| Colour | Brown |
| Product Type | DECT and wireless IP phone |
