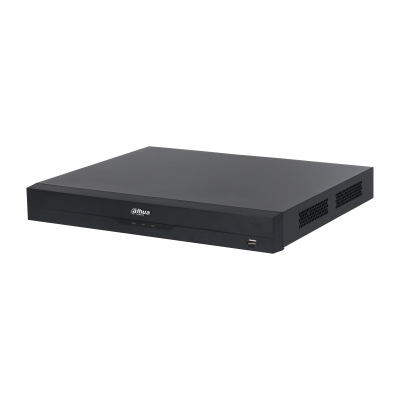

Dahua XVR5232AN-4KL-I3 - 32 Channel Penta-brid 4K DVR

Dahua XVR5232AN-4KL-I3 — 32-Channel Penta-brid Digital Video Recorder

The Dahua XVR5232AN-4KL-I3 is a 32-channel AI series Penta-brid DVR, accepting HDCVI, AHD, TVI and CVBS analogue cameras alongside IP cameras on the same recorder, with encoding up to 4K resolution.

Who is it for?

DVR/XVR recorders accept HD-over-coax (HDCVI/AHD/TVI), older analogue (CVBS) AND IP cameras on the same box — ideal for upgrading an existing coax-cabled system camera by camera without a full re-cable. With 32 analogue channels plus support for up to 64 additional IP channels, the XVR5232AN-4KL-I3 suits larger sites such as multi-unit commercial premises, warehouses or car parks that need a mix of existing coax cameras and newer IP cameras on one recorder.

Key specification

What you will need

• A compatible SATA hard drive (up to 16TB per bay, 2 bays available) — the recorder is sold without a pre-fitted HDD
• RG59 coax cable and a separate 12V power feed to each analogue camera — unlike a PoE NVR, this recorder does not power cameras over the video cable
• An HDMI or VGA monitor for local viewing and setup

Frequently asked questions

Can I mix analogue and IP cameras on this recorder?

Yes. The XVR5232AN-4KL-I3 is a Penta-brid recorder — its 32 analogue inputs accept HDCVI, AHD, TVI or CVBS cameras, and it also supports up to 64 additional IP camera channels on the same box.

Is there a monthly fee to use this recorder?

No. There is no subscription required for local recording, live viewing or playback — footage is stored on the internal hard drive(s).

Can I add IP cameras later?

Yes. IP channels can be added at any time up to the recorder's maximum of 64 channels, so you can start with your existing analogue cameras and expand with IP cameras as needed.

Does the recorder come with a hard drive fitted?

No, a SATA hard drive is required and is not included — the recorder has 2 bays, each supporting up to 16TB.
